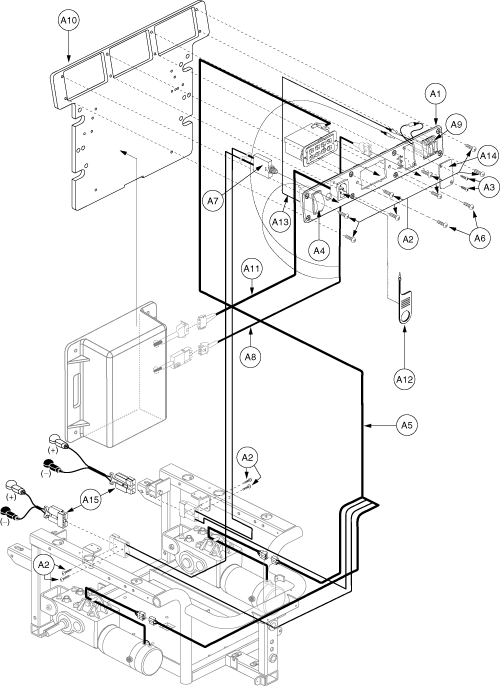

Jazzy 1122 - Electronics Tray / Modules - Vsi - No Power Seat Opt. - Units Manufactured W/ On Board Chargers

ELECTRONIC, ASSY, VSI TRAY, JAZZY1122

ELECTRONIC, PANEL, PLASTIC, W/OFFSET HOLES, D-1122-019

Pride Mobility

SCRPPH1006 - Black Zinc Pan Head Screw, Type I Cross Recessed, 8 (0.164)-32 x 0.50, ASME B18.6.3 for Quantum 4Front, Q6 Edge 2.0 & Q6 Edge HD Power Chairs

Pride Mobility

SCRPPH1032 - Black Zinc PPH Thread Cutting Screw, 6-32 x 0.375", Type F for Quantum 610 & 600 Power Chairs

ELECTRONIC, AMMETER, 0-6

ELECTRONIC, HARNESS, POWER INTERFACE CABLE, 1120-2000, GENERATION 2

Pride Mobility

SCRPPH1044 - M4 x 0.7 x 12 mm Pan Head Screw, Type H (ISO 7045, Class 4.8, Zinc)

ELECTRONIC,ASSY,CIRCUIT BREAKER,50 AMP,COMPLETE,RIGHT ANGLE TERMINALS,PUSH TO RESET

ELECTRONIC, HARNESS, CHGR, EXTERNAL FUSE READY, .187 FEMALE CONNECTORS

ELECTRONIC, HARNESS, 7.5 AMP, DOUBLE FUSE HOLDER, AUTOMOTIVE, H-1122-005

FRAME, MODULAR ELECTRONICS PLATE, E-1122-010

ELECTRONIC, HARNESS, A/C CHGR INPUT, WITH AMP 1-350346-0

COVER, CHARGER, RUBBER, AC INPUT, W/PULL RING

ELECTRONIC, HARNESS, 8"LG SPADE/FLAG, JUMPER, AMP METER/FUSE

CAP, PLASTIC, WIDE BLANK, W/OFFSET HOLES, B-1122-048

ELECTRONIC, ASSY, BATTERY CABLE, W/125A/32V FUSEABLE LINK, QUICK DISCONNECT, H-1122-022
