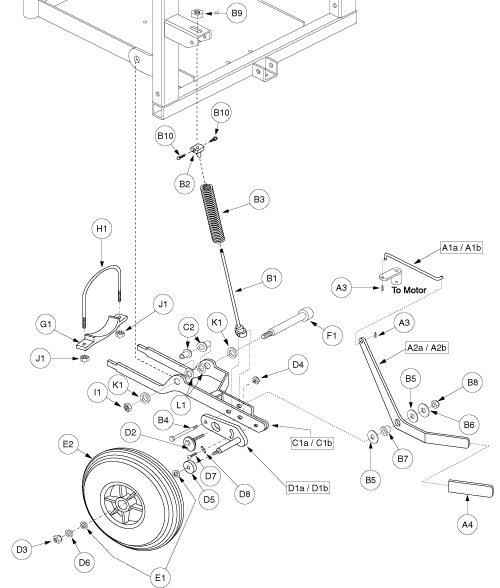

Jazzy 1122 - Anti- Tip / Strut - Used W/ E660 / E675 Motors - Captain Seating


Pos.
MPN
Details
A1 - L1
FRMASMB9638

ANTI-TIP, ASSY, CAM ADJUSTABLE, W/FRONT MOUNT FREEWHEEL LEVER, 5/16" SHAFT, BEIGE SPRING, E660/675 MOTORS, PAIR

---
A1a - L1
FRMASMB6240

ANTI-TIP, ASSY, CAM ADJUSTABLE, W/FRONT MOUNT FREEWHEEL LEVER, 5/16"SHAFT, BEIGE SPRING, RIGHT

---
A1b - L1
FRMASMB6238

ANTI-TIP, ASSY, CAM ADJUSTABLE, W/FRONT MOUNT FREEWHEEL LEVER, 5/16" SHAFT, BEIGE SPRING, LEFT

---
A1a - A4
FRMASMB6242

FREEWHEEL, ASSY, LEVER, FRONT MOUNT, RIGHT

---
A1b - A4
FRMASMB6241

FREEWHEEL, ASSY, LEVER, FRONT MOUNT, LEFT

---
A1a
DWR1122C061

FREEWHEEL, RELEASE ROD, RIGHT, C-1122-061

---
A1b
DWR1122C062

FREEWHEEL, RELEASE ROD, LEFT, C-1122-062

---
A2a
DWR1122E025

LEVER, FREEWHEEL RELEASE, RIGHT, E-1122-025

---
A2b
DWR1122E024

LEVER, FREEWHEEL RELEASE, LEFT, E-1122-024

---
A3
PINSOTR1000

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

$3.29
View details
A4
PROHDLC1081

COVER, FREEWHEEL LEVER, BLACK, VINYL, 0.155" X 0.74" X 3.25", (HARMENS: RE0155-0740-3250A010)

---
B1 - B10
FRMASMB6239

STRUT, ASSY, 7.375"LG, 5/16" SHAFT, 4.50" BEIGE SPRING, FRONT MOUNT FREEWHEEL LEVER READY

---
B1
IND1217B000

SUSPENSION, ANTI-TIP STRUT WELDMENT, JAZZY 1120, B-1200-017

---
B2
DWG1200A350

SUSPENSION, PIVOT, SPRING, A-1200-035

---
B3
SPGRAW1012

SPRING, BEIGE, 4.50" FL

---
B4
SCRHHCS1187

Pride Mobility

SCREW,HHCS,BLACK ZINC,5/16-18 X 3.00",GRADE 8 (SCRHHCS1187)

$3.29
View details
B5
WASNYLN1027

WASHER, WHITE, NYLON, 0.50" ID X 0.75" OD X 0.032" TH

---
B6
WASSTND1042
View details
B7
DWR1122C063

BUSHING, FLANGE, BLACK ZINC, STEEL, 0.328" ID X 0.50" OD X 0.42" TH X 0.75" FOD X 0.19" FTH, C-1122-063

---
B8
NUTNJAM1015

Pride Mobility

NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)

$3.29
View details
B9
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
B10
BLTASHL1073

Pride Mobility

BOLT,SHOULDER,1/4" X 0.25",0.1875" THREAD LENGTH (BLTASHL1073)

$3.29
View details
C1a - E2
FRMASMB5192

ANTI-TIP, ASSY, BRACKET, JAZZY1120/1122/1400, ATS , RIGHT, W/FORK/WHEEL/CAM

---
C1b - E2
FRMASMB5191

ANTI-TIP, ASSY, BRACKET, JAZZY1120/1122/1400, ATS , LEFT, W/FORK/WHEEL/CAM

---
C1a - C2
FRMASMB2604

ANTI-TIP, ASSY, BRACKET, CAM ADJUSTABLE, RIGHT

---
C1b - C2
FRMASMB2602

ANTI-TIP, ASSY, BRACKET, ATS, CAM ADJUSTABLE, LEFT

---
C1a
DWR1170D082

ANTI-TIP, ATS MOTOR, CAM ADJUSTABLE, RIGHT, D-1170-082

---
C1b
DWR1170D083

ANTI-TIP, ATS MOTOR, CAM ADJUSTABLE, LEFT, D-1170-083

---
C2
BSHFLNG1004

BUSHING, FLANGE, BRONZE, 0.50" X 0.75" X 0.375"

---
D1a - D8
FRMASMB2605

ANTI-TIP, ASSY, BRACKET, 5/16" BOLT, CAM ADJUSTABLE PLATE, RIGHT

---
D1b - D8
FRMASMB2603

ANTI-TIP, ASSY, BRACKET, 5/16" BOLT, CAM ADJUSTABLE PLATE, LEFT

---
D1a
DWR1010C008

ANTI-TIP BRACKET WELDMENT, SLOTTED, W/5/16" BOLT, RIGHT, C-1010-008

---
D1b
DWR1010C009

ANTI-TIP BRACKET WELDMENT, SLOTTED, W/5/16" BOLT, LEFT

---
D2
DWR1170A015

ADJUSTABLE CAM WELDMENT, A-1170-015

---
D4
NUTNYLK1032

NUT, NYLOCK, BLACK ZINC, 5/16-24

---
D5
SPCNYLN1003
View details
D6
WASNYLN1013

Monster Scooter Parts

5/16" x 7/8" x 1/16" General Purpose Nylon Flat Washer (Set of 2) (WASNYLN1013)

$2.10 $3.99
View details
D7
SCRASBH1030

SCREW, BHSCS, BLACK ZINC, 5/16-24 X 1.00"

---
D8
WASETH1005

WASHER, EXTERNAL TOOTH, 5/16" ID, LOCK

---
E1 - E2
WHLASMB1284

Monster Scooter Parts

6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs

$29.99
View details
E1
BRGSLV1002

Pride Mobility

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,608ZZ (BRGSLV1002)

$5.49
View details
E2
WHLATIP1001

WHEEL, ANTI-TIP, 6", MOLDED

---
F1
BLTASHL1005

Pride Mobility

BOLT,SHOULDER,1/2" X 3.50" (BLTASHL1005)

$3.29
View details
G1
BRK1217C000

CLAMP, U-BOLT, CURB CLIMBER, C-1200-017

---
H1
IND1205B000

BOLT, "U", BRIGHT ZINC, 1/4-20 X 3.50" W X 4.125" H X 0.75" THREAD LENGTH, B-1200-005

---
I1
NUTNYLK1006

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

$3.29
View details
J1
NUTNYLK1014

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

$3.29
View details
K1
WASINDV1000

Pride Mobility

WASHER,ZINC,0.50" ID X 1.00" OD X 0.125" TH (WASINDV1000)

$3.29
View details
L1
WASNYLN1018

Pride Mobility

WASHER,NYLON,0.500" ID X 1.125" OD X 0.0625" TH (WASNYLN1018)

$3.29
View details
