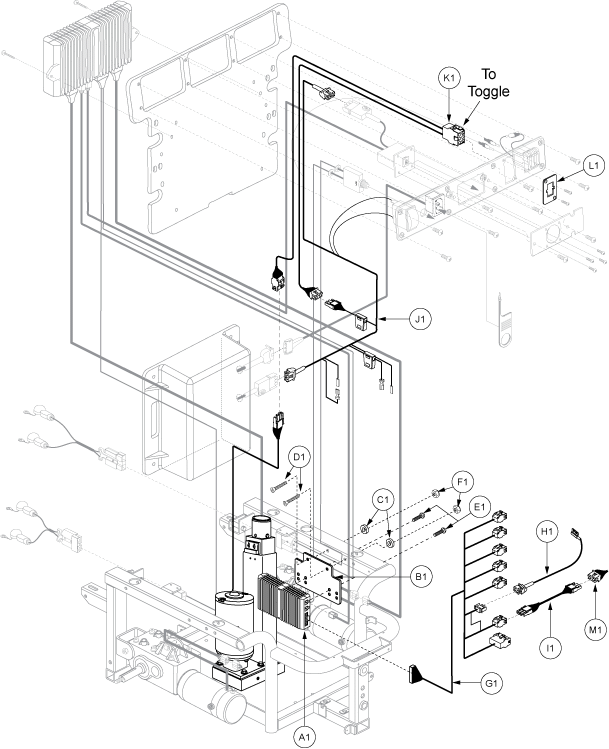

CONTROLLER, COMBINED LIGHTING AND ACTUATOR MODULE [CLAM], DYNAMIC
UNIVERSAL MOUNTING PLATE, CLAM/ALM.
SPACER, BLACK, NYLON, 0.3125" ID X 0.75" OD X 0.3125" TH
SCREW, SHFH, 1/4-20 X 2 1/2"
SCREW, PPH, ZINC, 8-32 X 3/4"
Pride Mobility
NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)
ELECTRONIC, HARNESS, DYNAMIC, CLAM, ACTR/FULL LT
ELECTRONIC, HARNESS, POWER SEAT, MAGNETIC SWITCH, 40" L, H-1200-073
ELECTRONIC, HARNESS, FULL POWER SEAT INHIBIT FOR HIGH SPEED MOTOR, H-1000-073
ELECTRONIC, HARNESS, CHARGER/POWER TAKE OVER(PTO), W/INLINE ATO FUSES, 10AMP & 2AMP, H-1010-032
ELECTRONIC, HARNESS, ACTUATOR TO PTO, REMOTE PLUS, H-1000-026
CAP, PLASTIC, 6 PIN, POWER SEAT, B-1122-017
ELECTRONIC, HARNESS, RUN PLUG, DYNAMIC, SENSOR, H-1200-070
