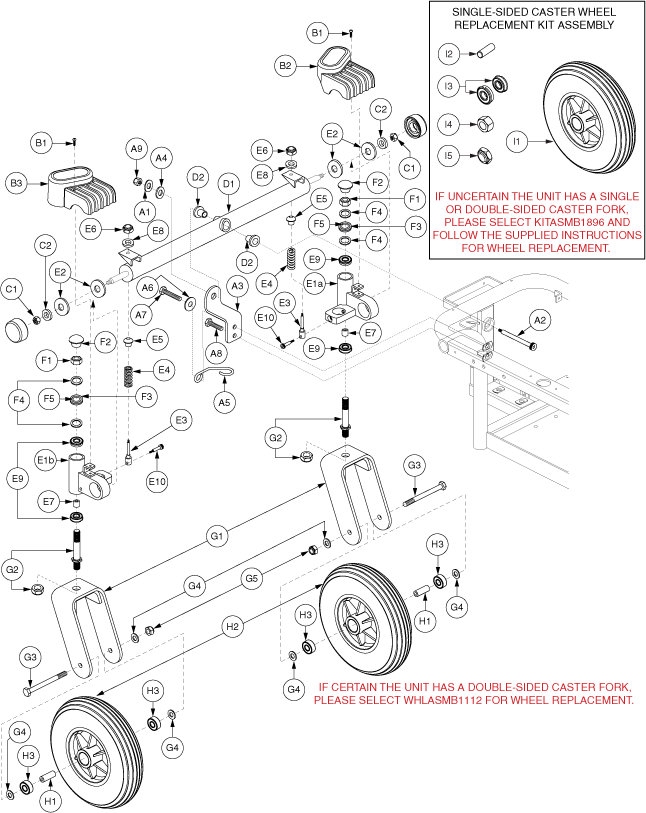

ARTICULATING BEAM, ASSY, STRAIGHT, 16.76"LG, MAIN, W/SUSPENSION/WHEELS/SINGLE BRAKE RELEASE-STYLE #3
Pride Mobility
WASHER,ZINC,0.50" ID X 1.00" OD X 0.125" TH (WASINDV1000)
MOUNTING BRACKET, CASTER BEAM SUPPORT, C-1122-047
Pride Mobility
WASHER,BELLEVILLE,0.515'' ID X 1.00'' OD X 0.035'' TH (WASWAVY1007)
CABLE, LOOP BRACKET, B-1400-004
Pride Mobility
WASHER, CIRCULAR, HARDENED, .313 ID X .688 OD X .06 THK, ASTM F436, BZ (WASSTND1042)
SCREW, HHCS, BLACK OXIDE, 5/16-18 X 1 1/2", G5
SCREW, HHCS, BLACK ZINC, 5/16-18 X 1.50", GRADE 8
ARTICULATING BEAM, ASSY, STRAIGHT, 16.76"LG, W/SUSPENSION/WHEELS
Pride Mobility
SCREW, PPH,BLACK,8-32 X 0.750",TYPE F, THREAD CUTTING (SCRPPTC1029)
CAP, PLASTIC, ARTICULATING BEAM, LARGE CURVE, SUSPENSION CAP, LEFT, D-1400-012
CAP, PLASTIC, ARTICULATING BEAM, LARGE CURVE, SUSPENSION CAP, RIGHT, D-1400-013
ARTICULATING BEAM, ASSY, STRAIGHT, 16.76"LG, W/SUSPENSION
Monster Scooter Parts
Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)
WASHER, NYLON,0.50" ID X 1.00" OD X 0.125" TH
ARTICULATING BEAM, ASSY, STRAIGHT, 16.76"LG, W/BUSHINGS, E-1122-017
ARTICULATING BEAM, STRAIGHT SUSPENSION CASTER WELDMENT, D-1122-002
BUSHING, FLANGE, BRONZE, 0.50" X 0.75" X 0.75", A-1010-013
CASTER, ASSY, BEARING TUBE, 2.63", W/SUSPENSION, LEFT
CASTER, ASSY, BEARING TUBE, 2.63", W/SUSPENSION, RIGHT
CASTER, TUBE WELDMENT, 2.63", LEFT, C-1122-010
CASTER, TUBE WELDMENT, 2.63", RIGHT, C-1122-009
BUSHING, FLANGE, OIL IMPREGNATED BRONZE, 0.50"ID X 1.125"OD X 0.370"TH X 1.50"FOD X 0.125"FTH, A-1122-009
SUSPENSION, STRUT WELDMENT, .2.750" LG, 5/16" SHAFT, A-1122-015
SHOCK, BLACK, 1.50" L X 0.875" OD
BALL PIVOT, SPRING ROD, A-1200-023
Pride Mobility
NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)
SPACER, 0.52"ID X 0.68"OD X 0.937"TH, BEARING THRUST
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)
BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014
Monster Scooter Parts
Shoulder Bolt for Rear Suspension for the Jazzy 1122 (BLTASHL1071)
CASTER, ASSY, FORK, W/GUARD & 8" FLAT FREE CASTER, W/MOUNTING HARDWARE, LEFT
CASTER, ASSY, FORK, W/GUARD & 8" FLAT FREE CASTER, W/MOUNTING HARDWARE, RIGHT
ANTI-FLUTTER KIT, ASSY, JAZZY CASTER
Pride Mobility
NUT, HEX, LOCK, .50-20, ASME B18.16.6, BZ, PVTP (NUTNYLK1010)
O-RING, NEOPRENE, 10MM SHAFT DIA X 19.5MM OD X 1.78MM TH, B-1005-120
ARBOR SHIM, STEEL, 0.500"ID X 0.750"OD X 0.093"TH
CASTER, ASSY, FLAT-FREE, 8"WHEEL & 2.50" STUD, W/FORK, DOUBLE SIDED, LEFT, D-1202-027
CASTER, ASSY, FLAT-FREE, 8"WHEEL & 2.50" STUD, W/FORK, DOUBLE SIDED, RIGHT, D-1202-028
FORK, WELDMENT, CASTER, REAR, D-1056-027
STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006
Monster Scooter Parts
Front Fork Axle Bolt for the Jazzy Select 14 (SCRHHCS1334)
WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH
Pride Mobility
8" x 2" (200x50) Caster Wheel Assembly for Jazzy Power Chairs (WHLASMB1112)
WHEEL, CASTER, BLACK RIM/GRAY TIRE, E-1005-001
WHEEL, ASSY, CASTER, RETRO FIT KIT
