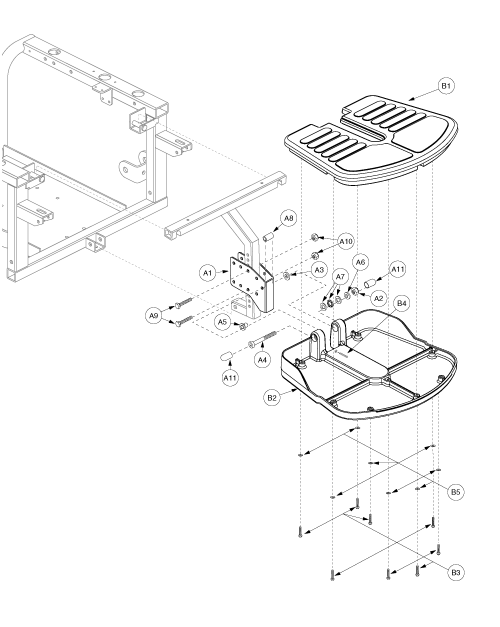

FOOT PLATFORM, ASSY, GRID STYLE, 11.62"D, W/MOUNTING BRACKET, JAZZY1122/1402
FRAME, ASSY, REMOVEABLE FRONT TOWER, WITH FOOTREST
FOOT PLATFORM MOUNTING BRACKET, HORIZONTAL ADJUSTMENT, C-1122-011
Monster Scooter Parts
5/16" x 7/8" x 1/16" General Purpose Nylon Flat Washer (Set of 2) (WASNYLN1013)
Pride Mobility
SCREW, SOCKET HEAD, M8X1.25 X 80, ISO 4762, CL 12.9, BZ (SCRSHCS1170)
FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458
SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459
BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)
SPACER, STEEL, 0.328" ID X 0.50" OD X 1.00" TH, B-1010-090
SCREW, HHCS, BLACK, ZINC, 1/4-20 X 1.5", GRADE 8
Pride Mobility
NUT, JAM, PVTP, .25-20, STL, BZ (DWG 147337) (NUTNJAM1014)
CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)
FOOT PLATFORM, ASSY, GRID STYLE, 11.62"D, W/MAT & HARDWARE, E-1000-105
MAT, FOOT PLATFORM, 11.62"D, GRID STYLE, E-1000-103
FOOT PLATFORM BASE, ALUMINUM, 11.62"D, GRID STYLE, E-1000-104
Monster Scooter Parts
8-32x75" Black Pan Head Machine Screw (SCRPPH1080)
Pride Mobility
SCREW,SET,BLACK ZINC,3/8-24 X 1.50",W/NYLON PATCH (SCRSETS1090)
Pride Mobility
WASHER, FLAT, 0.188 ID X 0.438 OD X 0.049 THK, ASTM F844, STL, BZ (WASSAE1008)
