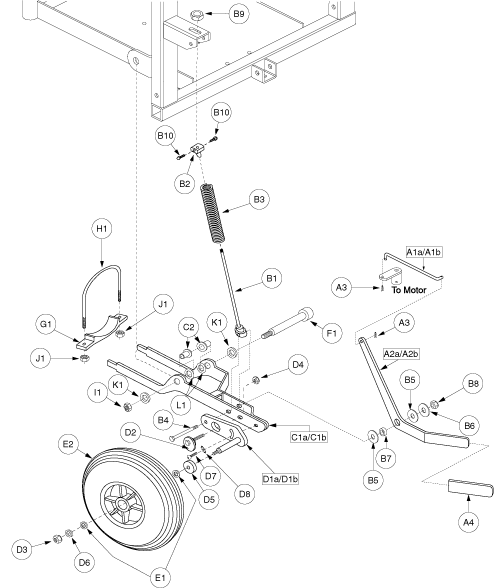

Jazzy 1122 - Anti- Tip / Strut - Used W/ E660 / E675 Motors - Rehab Seating

ANTI-TIP, ASSY, CAM ADJUSTABLE, W/FRONT MOUNT FREEWHEEL LEVER, 5/16" SHAFT, BEIGE SPRING, E660/675 MOTORS, PAIR

ANTI-TIP, ASSY, CAM ADJUSTABLE, W/FRONT MOUNT FREEWHEEL LEVER, 5/16" SHAFT, PURPLE SPRING, RIGHT

ANTI-TIP, ASSY, CAM ADJUSTABLE, W/FRONT MOUNT FREEWHEEL LEVER, 5/16" SHAFT, PURPLE SPRING, LEFT

FREEWHEEL, ASSY, LEVER, FRONT MOUNT, RIGHT

FREEWHEEL, ASSY, LEVER, FRONT MOUNT, LEFT

FREEWHEEL, RELEASE ROD, RIGHT, C-1122-061

FREEWHEEL, RELEASE ROD, LEFT, C-1122-062

LEVER, FREEWHEEL RELEASE, RIGHT, E-1122-025

LEVER, FREEWHEEL RELEASE, LEFT, E-1122-024

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

COVER, FREEWHEEL LEVER, BLACK, VINYL, 0.155" X 0.74" X 3.25", (HARMENS: RE0155-0740-3250A010)

STRUT, ASSY, 7.375"LG, 5/16"SHAFT, 5.00" PURPLE SPRING, FRONT MOUNT FREEWHEEL LEVER READY

SUSPENSION, ANTI-TIP STRUT WELDMENT, JAZZY 1120, B-1200-017

SUSPENSION, PIVOT, SPRING, A-1200-035

SPRING, PURPLE, 5.00" FL X 0.915" OD X 0.162" WIRE DIA X RATE: 144LBS/IN, B-1010-039, (LEE SPRING: LHL-1000B-11)

SCREW, HHCS, BLACK ZINC, 5/16-18 X 2.75", GRADE 5

WASHER, WHITE, NYLON, 0.50" ID X 0.75" OD X 0.032" TH

Pride Mobility

WASHER, CIRCULAR, HARDENED, .313 ID X .688 OD X .06 THK, ASTM F436, BZ (WASSTND1042)

Pride Mobility

SPACER, STEEL, 0.328 ID X 0.50 OD X 0.20 TH, INCH, BLK (DWG: A1600-052) (DWR1600A052)

Pride Mobility

NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

BOLT, SHOULDER, 1/4" X 1/4" LG, 3/8" THREAD LENGTH

ANTI-TIP, ASSY, BRACKET, JAZZY1120/1122/1400, ATS , RIGHT, W/FORK/WHEEL/CAM

ANTI-TIP, ASSY, BRACKET, JAZZY1120/1122/1400, ATS , LEFT, W/FORK/WHEEL/CAM

ANTI-TIP, ASSY, BRACKET, CAM ADJUSTABLE, RIGHT

ANTI-TIP, ASSY, BRACKET, ATS, CAM ADJUSTABLE, LEFT

ANTI-TIP, ATS MOTOR, CAM ADJUSTABLE, RIGHT, D-1170-082

ANTI-TIP, ATS MOTOR, CAM ADJUSTABLE, LEFT, D-1170-083

BUSHING, FLANGE, BRONZE, 0.50" X 0.75" X 0.375"

ANTI-TIP, ASSY, BRACKET, 5/16" BOLT, CAM ADJUSTABLE PLATE, RIGHT

ANTI-TIP, ASSY, BRACKET, 5/16" BOLT, CAM ADJUSTABLE PLATE, LEFT

ANTI-TIP BRACKET WELDMENT, SLOTTED, W/5/16" BOLT, RIGHT, C-1010-008

ANTI-TIP BRACKET WELDMENT, SLOTTED, W/5/16" BOLT, LEFT

ADJUSTABLE CAM WELDMENT, A-1170-015

NUT, NYLOCK, BLACK ZINC, 5/16-24

Pride Mobility

SPACER, BLACK, NYLON, 0.32 ID X 0.75 OD X 0.31 THK (SEE DRAWING A1010-018) (SPCNYLN1003)

Monster Scooter Parts

5/16" x 7/8" x 1/16" General Purpose Nylon Flat Washer (Set of 2) (WASNYLN1013)

SCREW, BHSCS, BLACK ZINC, 5/16-24 X 1.00"

WASHER, EXTERNAL TOOTH, 5/16" ID, LOCK

Monster Scooter Parts

6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs

Pride Mobility

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,608ZZ (BRGSLV1002)

WHEEL, ANTI-TIP, 6", MOLDED

Pride Mobility

BOLT,SHOULDER,1/2" X 3.50" (BLTASHL1005)

CLAMP, U-BOLT, CURB CLIMBER, C-1200-017

BOLT, "U", BRIGHT ZINC, 1/4-20 X 3.50" W X 4.125" H X 0.75" THREAD LENGTH, B-1200-005

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

Pride Mobility

WASHER,ZINC,0.50" ID X 1.00" OD X 0.125" TH (WASINDV1000)

Pride Mobility

WASHER,NYLON,0.500" ID X 1.125" OD X 0.0625" TH (WASNYLN1018)
