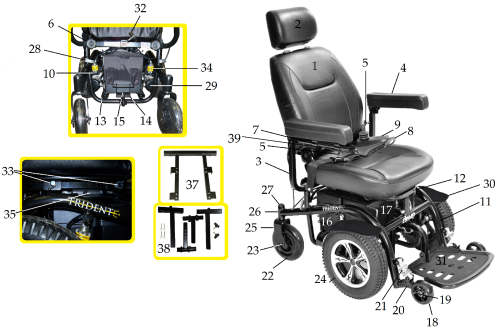

Drive Medical Trident Parts Diagram

Drive Medical

TRID-2A01 - 18" Seat Assembly & Headrest for the Drive Trident

Drive Medical

TRID-2A02 - 20" Seat Assembly & Headrest for the Drive Trident

Drive Medical

TRID-2A39 - Headrest for the Drive Trident

Monster Scooter Parts

TRID-2A05 - Armrest Pad for the Drive Medical Trident HD

Drive Medical

TRID-2A46 - Joystick Cable Clips for the Drive Trident

Drive Medical

TRID-2A43 - Armrest Height Knob for the Drive Trident and Drive Trident HD

Drive Medical

TRID-2A38 - Joystick Arm for the Drive Trident and Drive Trident HD

Drive Medical

TRID-2A36 - Joystick Arm for the Drive Trident and Drive Trident HD

Monster Scooter Parts

S350169701 - VR2 Joystick for the Drive Trident and Drive Trident HD

Drive Medical

TRID-2A20 - Motor Mount Arm for the Drive Trident

Drive Medical

TRID-2A22 - Main Frame for the Drive Trident

Upper Frame for the Drive Trident (TRID-2A23)

Drive Medical

TRID-2A25 - Battery Tray Slides for the Drive Trident

Drive Medical

TRID-2A24 - Battery Tray for the Drive Trident

Drive Medical

TRID-2A26 - Battery Tray Release Pin for the Drive Trident

Universal Power Group

U1 (35 Ah) 12 Volt UB12350 AGM Mobility Scooter & Power Chair Battery with Post Terminals (SCPU1)

Drive Medical

LRA402307 - 50 Amp Circuit Breaker for the Drive Titan X16, Drive Titan X23, and Drive Trident

Drive Medical

TRID-2A32 - Battery Case with 1 Plug for the Drive Trident

Drive Medical

TRID-2A33 - Battery Case with 2 Plugs for the Drive Trident

Drive Medical

TRID-2A45 - Battery Box Hold Down Cover for the Drive Trident

Drive Medical

TRID-2A16 - Anti-tip wheel for the Drive Medical Trident & Trident HD

Drive Medical

TRID-2A17 - Anti-Tipper Axle for the Drive Trident and Drive Trident HD

Drive Medical

TRID-2A18 - Anti-Tipper Articulating Arm for the Drive Trident and Drive Trident HD

Drive Medical

STDS1011 - Wheel Bearing for the Drive Cirrus Plus EC, Drive Titan X16, Drive Titan X23, and Drive Trident

Drive Medical

TRID-2A13 - 8"x2" Solid Rear Caster for the Drive Medical Trident

Drive Medical

TRID-2A19 - Anti-Tipper Shock Absorber for the Drive Trident and Drive Trident HD

Drive Medical

TRID-2A14 - Caster Axle for the Drive Trident

Drive Wheel Assembly for the Drive Trident (TRID-2A1)

Drive Medical

TRID-2A10 - Fork for the Drive Trident

Monster Scooter Parts

TRID-2A11 - Fork Stem Bearings for the Drive Trident Power Chair (Set of 2)

Drive Medical

TRID-2A12 - Fork Stem Cap for the Drive Trident

Drive Medical

TRID-2A28 - Height Adjustment Pin for the Drive Trident and Drive Trident HD

Left Motor & Gearbox Assembly for the Drive Trident (TRID-2A29)

Drive Medical

TRID-2A30 - Right Motor & Gearbox Assembly for the Drive Trident

Drive Medical

TRID-2A31 - Motor Brush & Cap for the Drive Trident

Drive Medical

TRID-2A41 - Left Wheel Guard for the Drive Trident

Drive Medical

TRID-2A42 - Right Wheel Guard for the Drive Trident

Drive Medical

TRID-2A07 - Footrest with Attaching Bolt for the Drive Trident

Drive Medical

TRID-2A08 - Footrest Bolt for the Drive Trident

Drive Medical

TRID-2A09 - Footrest Bracket & Knob for the Drive Trident

Drive Medical

TRID-2A44 - Armrest Width Knob for the Drive Trident and Drive Trident HD

Drive Medical

TRID-2A06 - Seat Brackets for the Drive Trident

Drive Medical

TRID-2A21 - Motor Mount Shock Absorber for the Drive Trident

Drive Medical

TRID-2A34 - Hardware for Shock Absorber for the Drive Trident

PG Drives

TRID-2A35 - 50 Amp VR2 Controller for the Drive Medical Trident

Universal Power Group

24 Volt 5.0 Amp XLR 24BC5000T-4 AGM/Gel Battery Charger (CPC)

Monster Scooter Parts

SFELR - Swing-Away Elevating Leg Rest Kit for Drive Medical Power Chairs
