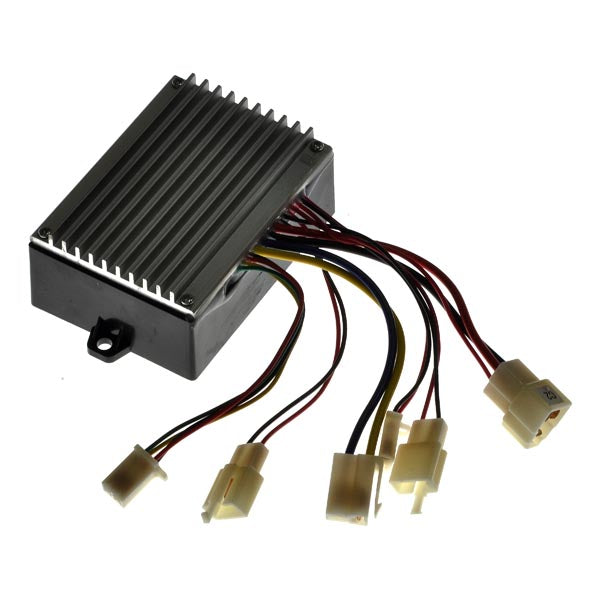

CT-312C1 / HB3650TYD4-FS1 Control Module with 4-Wire Throttle Connector for the Razor MX500 (Versions 1-9)
$21.99
Unit price
/
Unavailable
CT-312C1 / HB3650TYD4-FS1 Control Module with 4-Wire Throttle Connector for the Razor MX500 (Versions 1-9) is backordered and will ship as soon as it is back in stock.
Pre-Black Friday Sale - Save 15% with coupon code: PBF15
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description
Control module for the Razor MX500 Dirt Rocket, versions 1 through 9. Compatible with models that have a 4-wire throttle. This control module is not compatible with newer models with a 5-wire throttle.
Controller has six sets of wires with harnesses (15 wires total) labeled as follows: battery, brake (1), brake (2), electric charger, motor, timing.
This controller may come with model number CT-312C1, HB3650TYD4-FS1, HB3650TYD4-FS-ROHS, or CT-612C1. Model numbers vary based on the factory that produced the controller, and are interchangeable.
The wiring diagram for this part can be found at the following link:
Razor MX500 Dirt Rocket Wiring Diagram (Versions 1-9)
Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
Razor: W151250011101, W15128190015
⚠ WARNING California Residents: Proposition 65 Warning
Controller has six sets of wires with harnesses (15 wires total) labeled as follows: battery, brake (1), brake (2), electric charger, motor, timing.
This controller may come with model number CT-312C1, HB3650TYD4-FS1, HB3650TYD4-FS-ROHS, or CT-612C1. Model numbers vary based on the factory that produced the controller, and are interchangeable.
The wiring diagram for this part can be found at the following link:
Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
Razor: W151250011101, W15128190015
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model Number:CT-312C1, HB3650TYD4-FS1, or CT-612C1 Controller Voltage: 36 Volt Maximum Current: 30A Deficiency Voltage Protect: 31.5V
