ZK2430HB-FS Throttle & Control Module Bundle for Razor E300, Versions 11 and 13-19
$60.99
Unit price
/
Unavailable
ZK2430HB-FS Throttle & Control Module Bundle for Razor E300, Versions 11 and 13-19 is backordered and will ship as soon as it is back in stock.
Veterans Day Sale - Save 11% with Coupon Code: VET11
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Description
Description

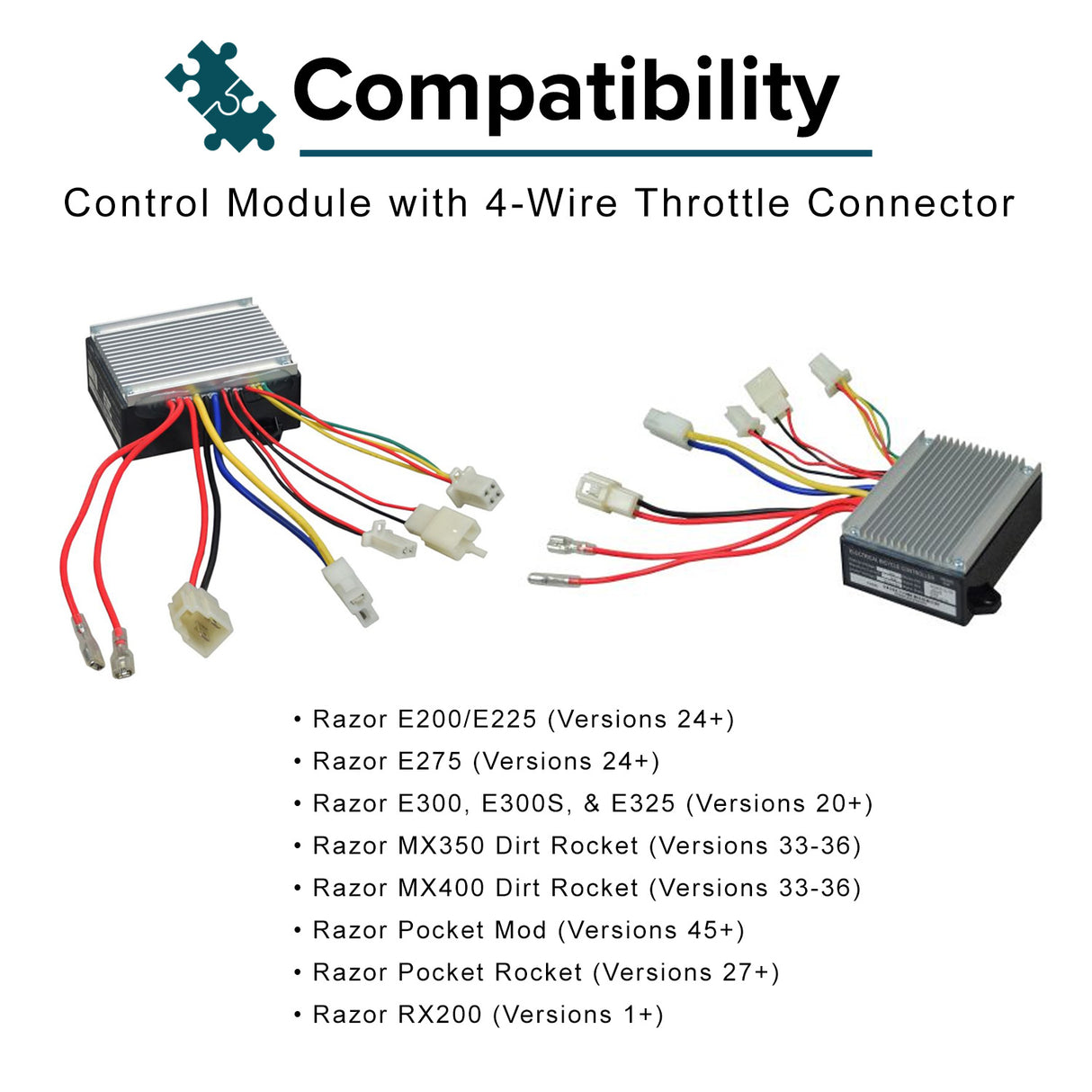

COMPATIBILITY NOTE
There may be other control modules that are used for this model. Please check your model version number, the picture, and description carefully prior to ordering.

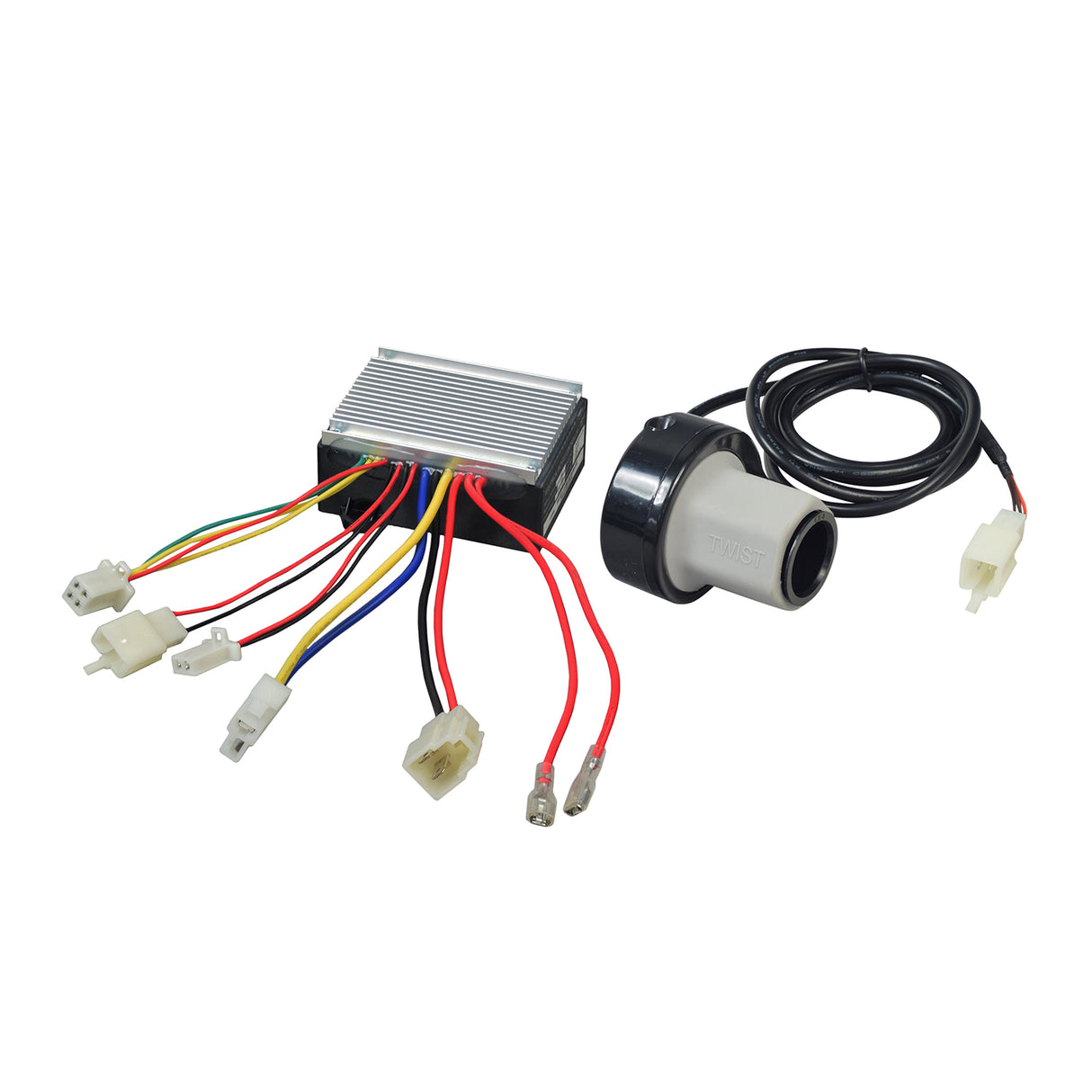

This 4-wire throttle and controller kit replaces the now discontinued Razor CT-201C-3 or HB2430TYD-FS control module. This kit is for versions 11 and 13 through 19 of the Razor E300 scooter.
The only option available to replace your 5-wire controller is to replace both the controller and throttle with this kit.

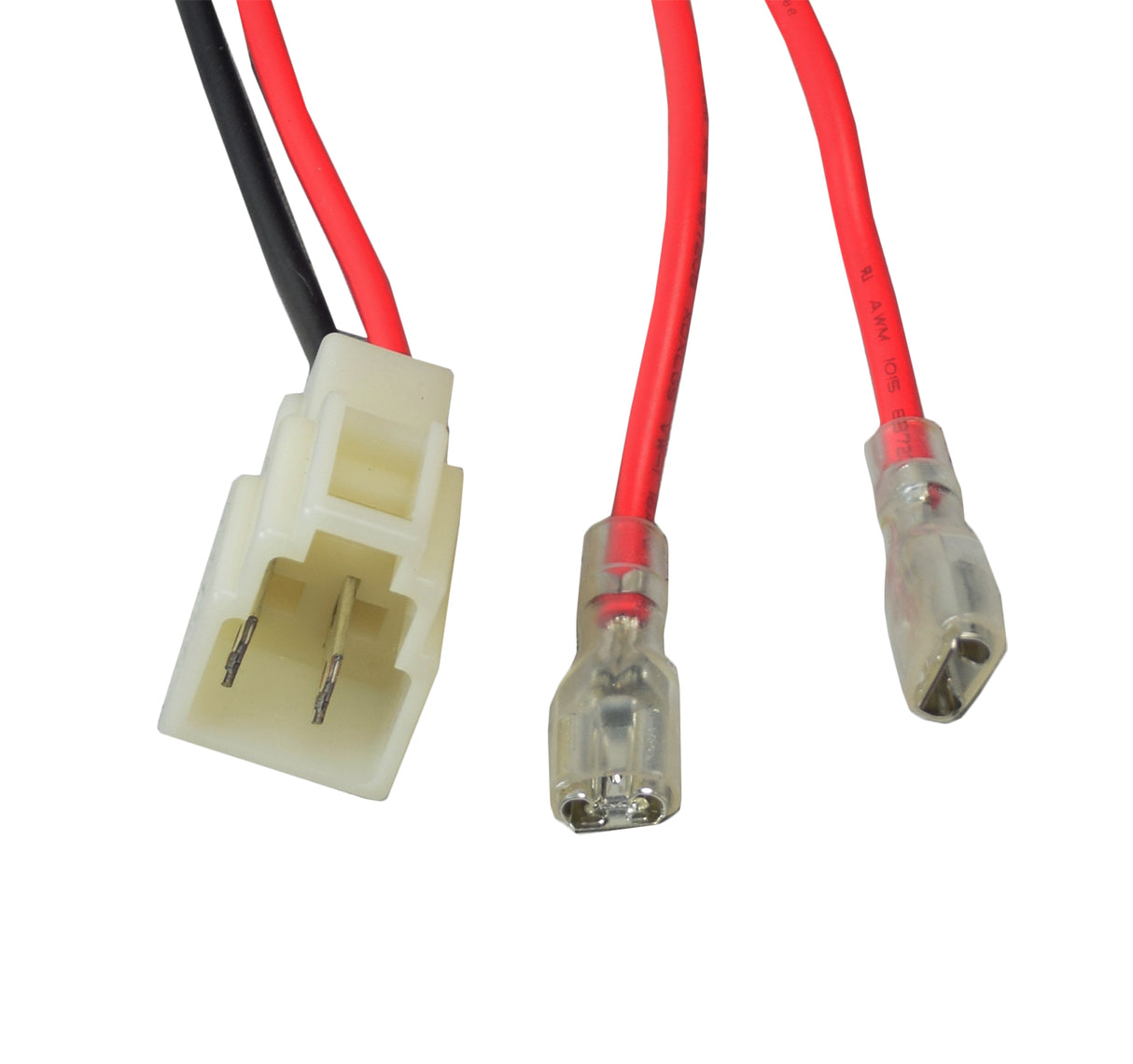

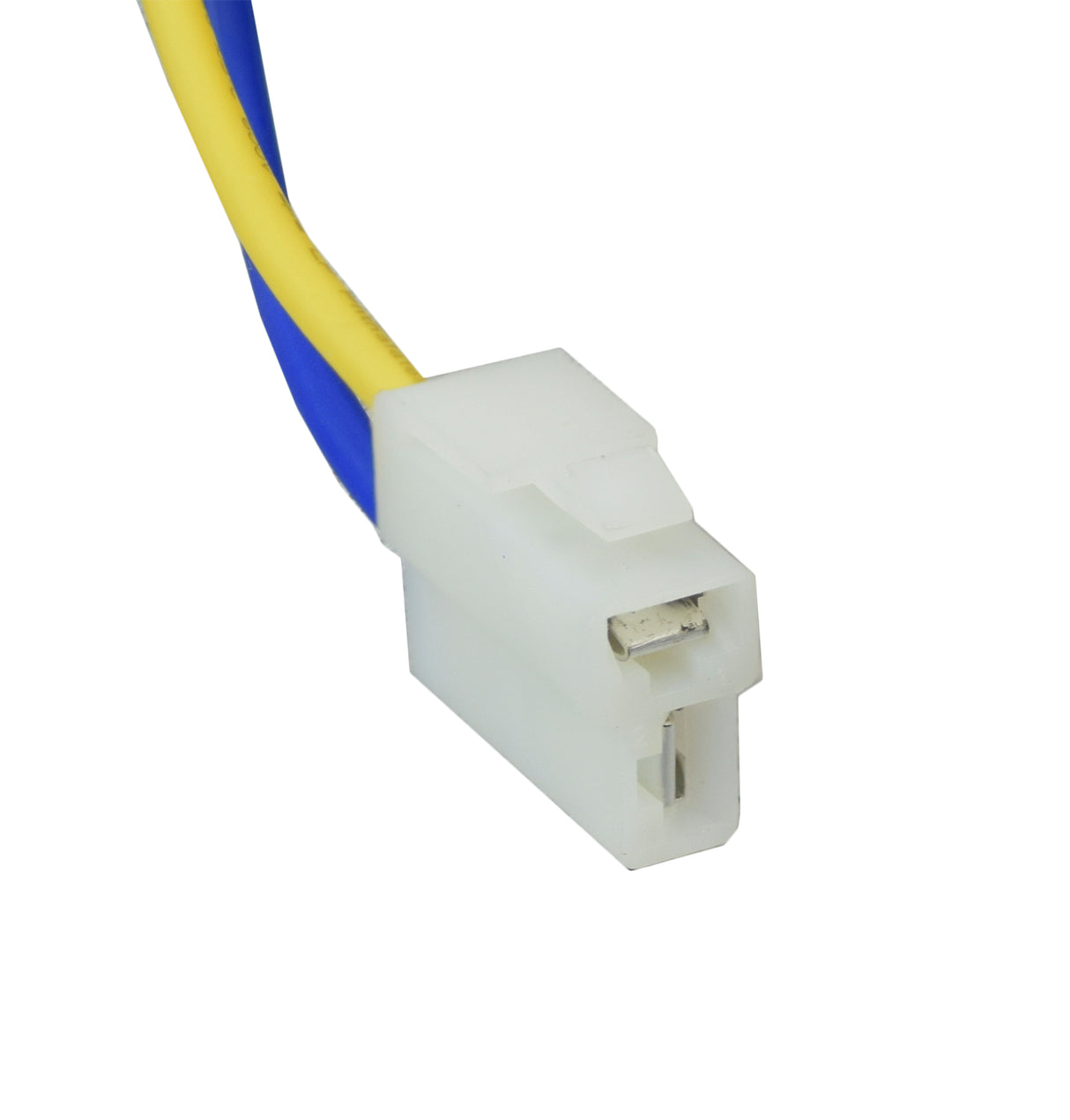

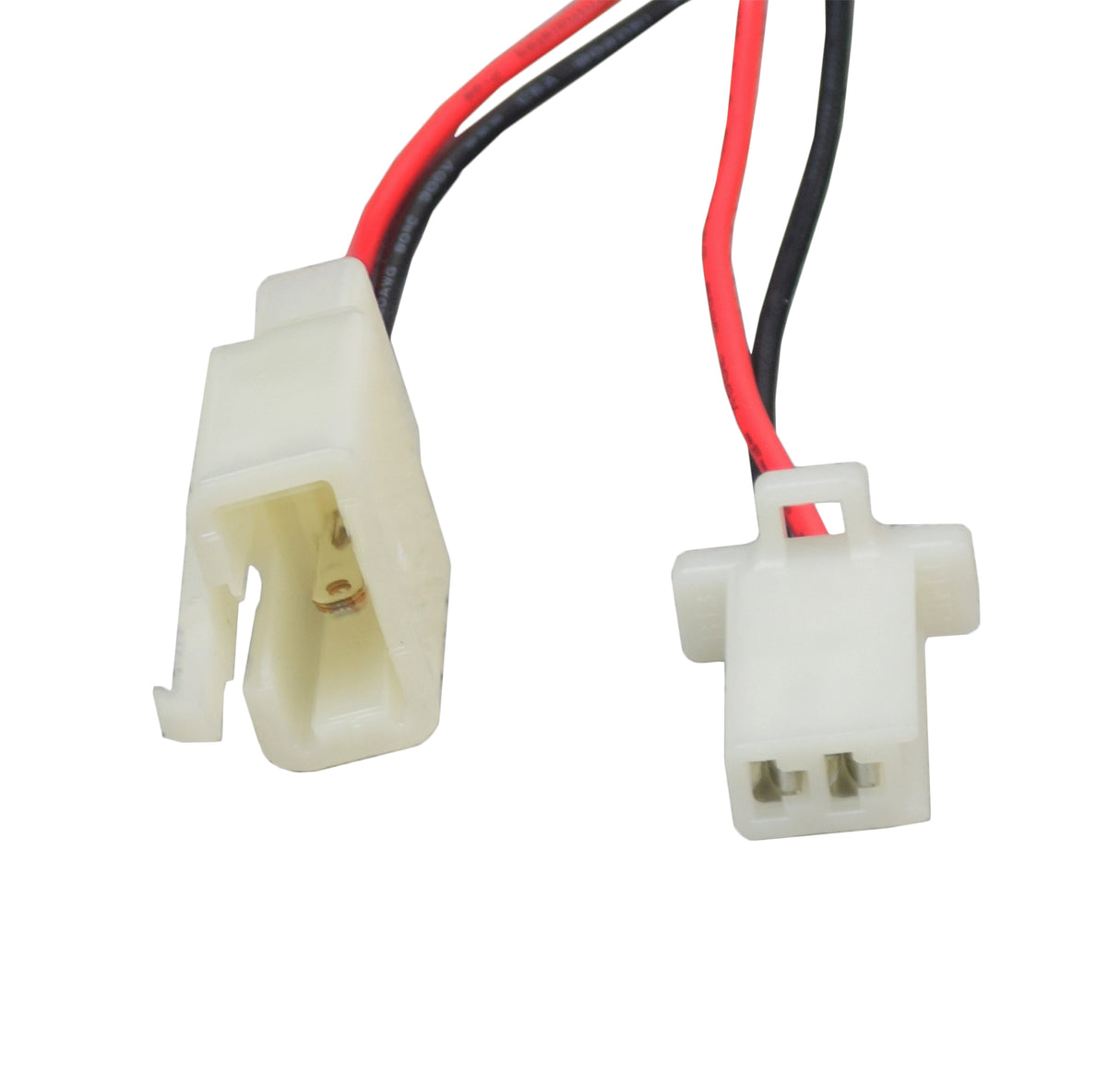

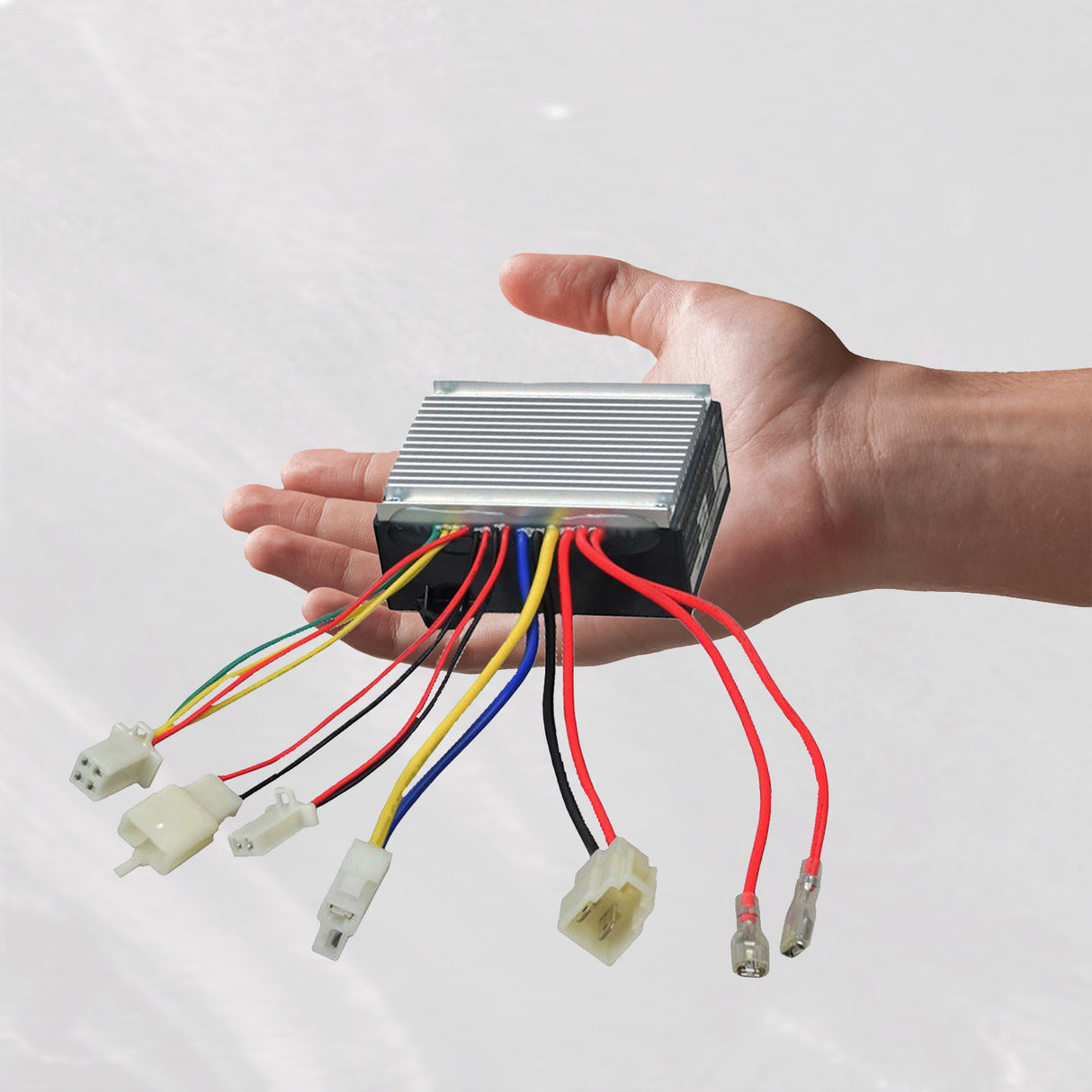

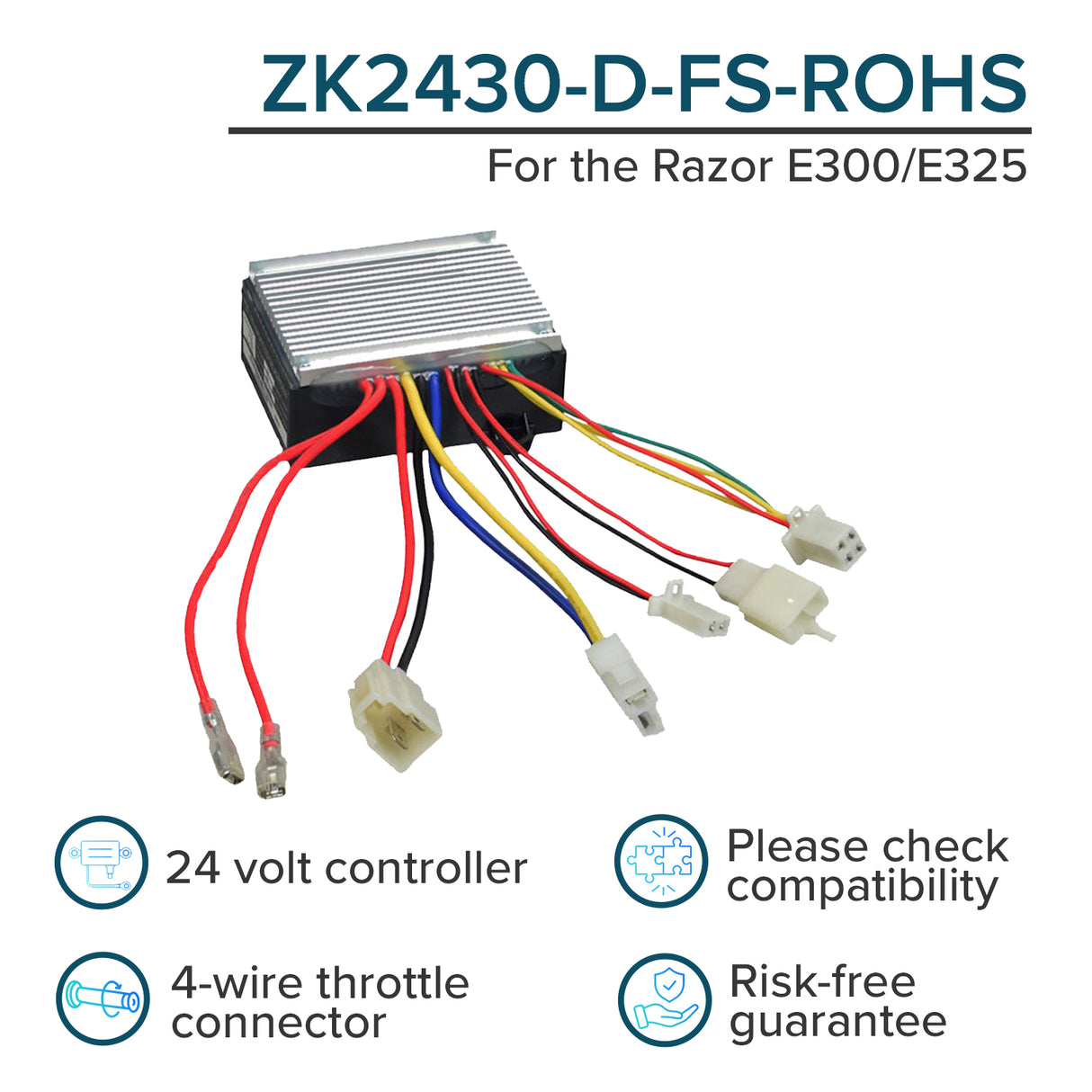

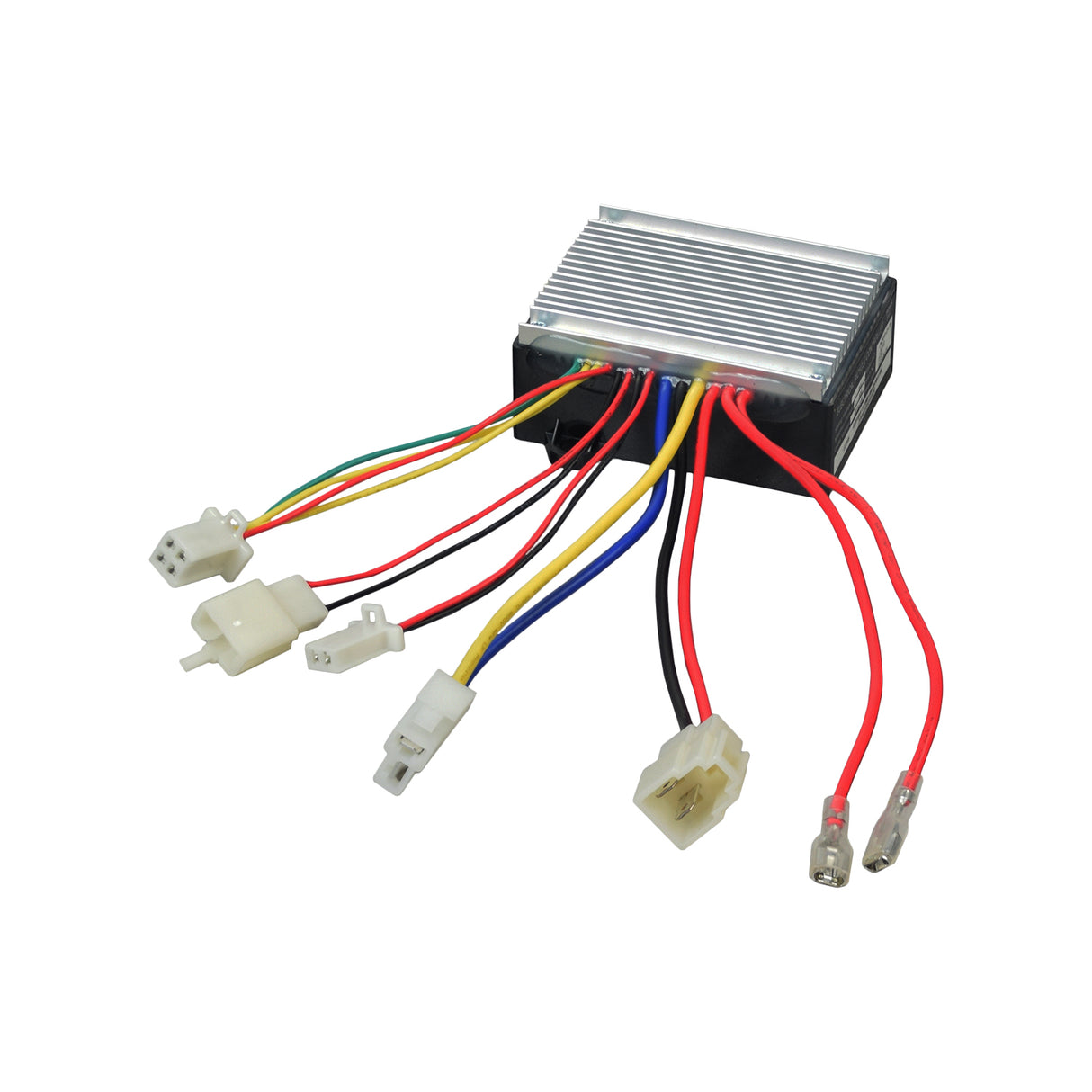

The control module included in this kit is Monster Scooter Parts part number Z09-1682, described as a ZK2430D-ROHS control module with seven connectors, and the throttle connector has four wires.

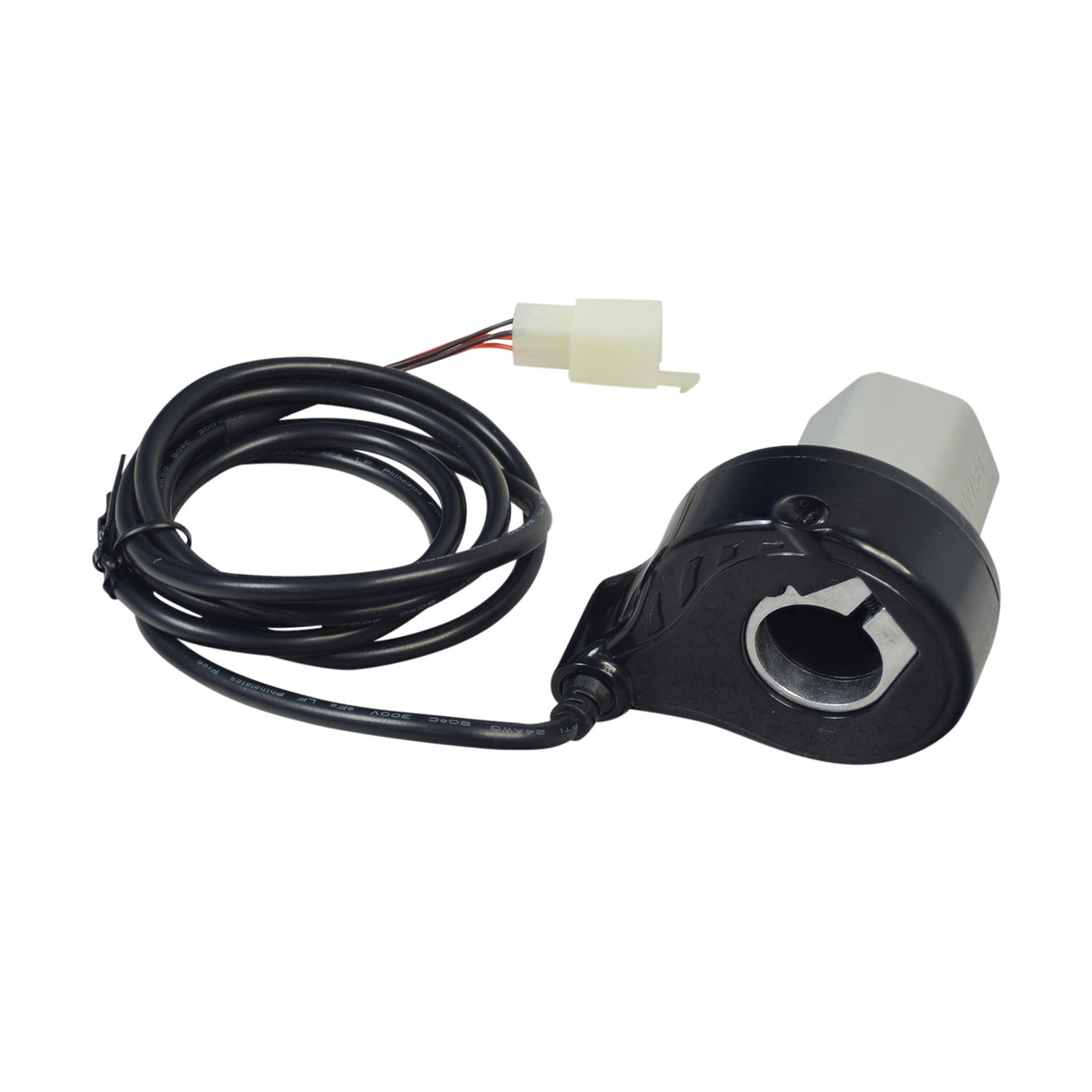

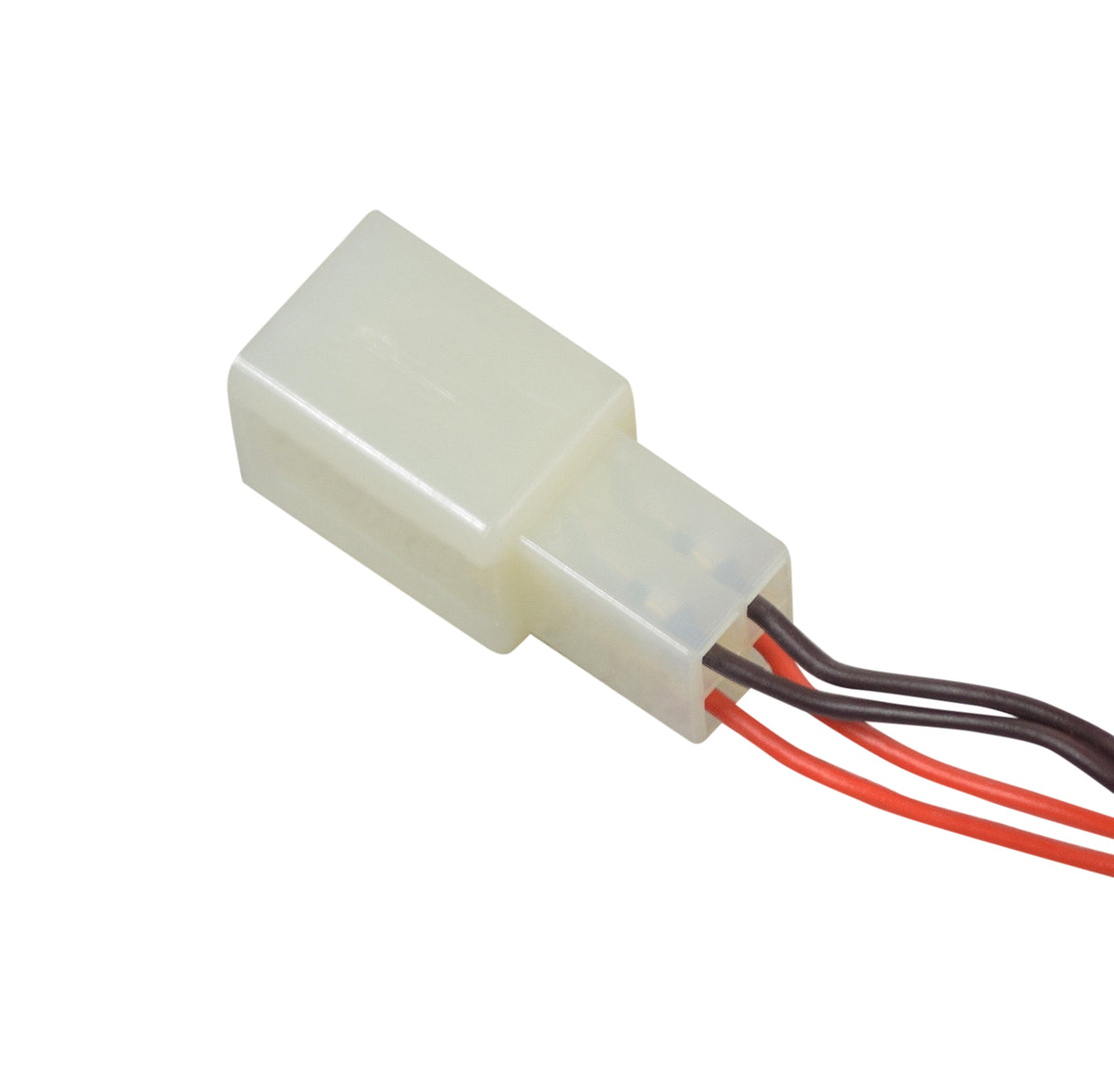

The throttle included in this kit is Monster Scooter Parts part number T53-6105, described as a Razor single-speed 4-wire twist grip throttle with 60" wires.
The original wiring diagram for this part can be found at the following link:
Razor E300 Wiring Diagram (Versions 11 & 13-19)
Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
Razor: W13112430184
⚠ WARNING California Residents: Proposition 65 Warning
There may be other control modules that are used for this model. Please check your model version number, the picture, and description carefully prior to ordering.
This 4-wire throttle and controller kit replaces the now discontinued Razor CT-201C-3 or HB2430TYD-FS control module. This kit is for versions 11 and 13 through 19 of the Razor E300 scooter.
The only option available to replace your 5-wire controller is to replace both the controller and throttle with this kit.
The control module included in this kit is Monster Scooter Parts part number Z09-1682, described as a ZK2430D-ROHS control module with seven connectors, and the throttle connector has four wires.
The throttle included in this kit is Monster Scooter Parts part number T53-6105, described as a Razor single-speed 4-wire twist grip throttle with 60" wires.
The original wiring diagram for this part can be found at the following link:
Note: Model versions can be determined based on the product ID code on your Razor product. The product ID code can be found on the battery cover and/or on the bottom of the frame. The 7th and 8th numbers in your product ID code are the version number of your Razor product (e.g. "01" = Version 1, "02" = Version 2, etc.).
Razor: W13112430184
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications

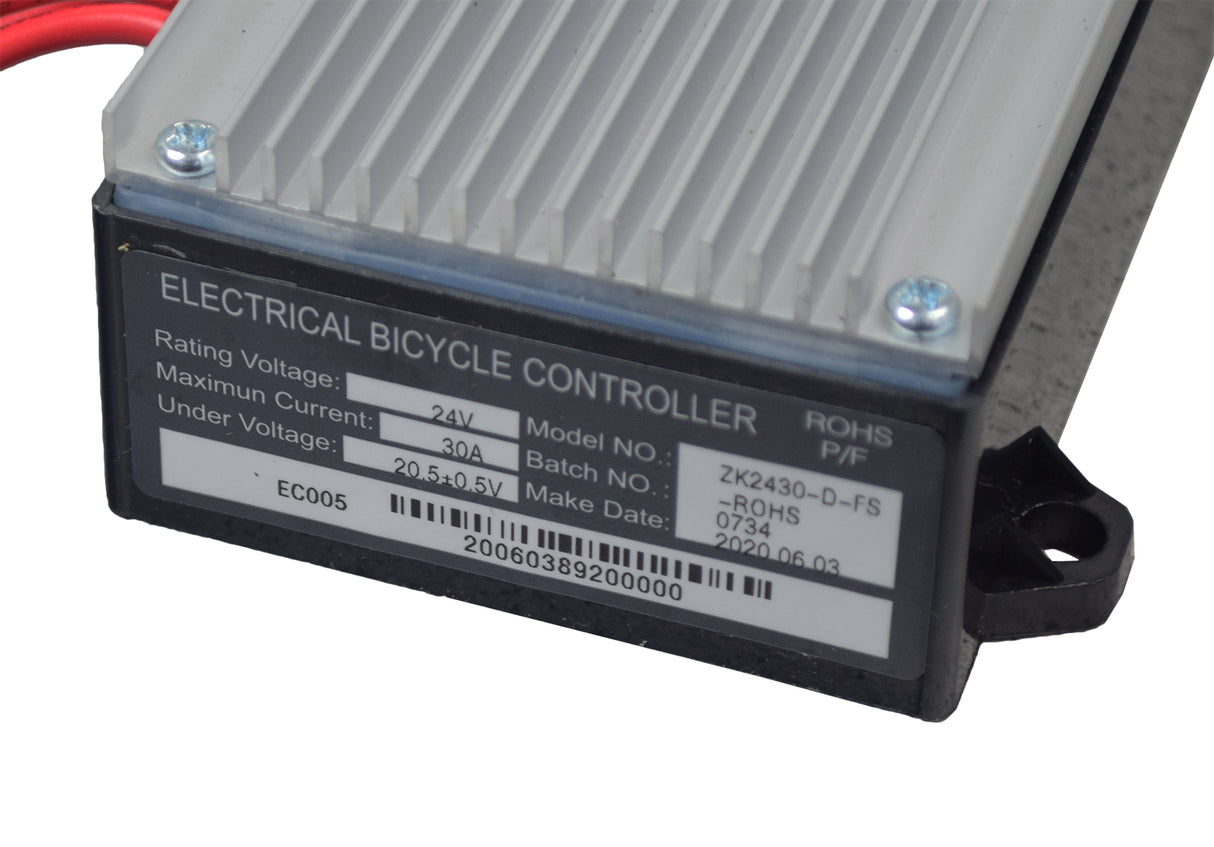

Model: ZK2430HB-FS Voltage: 24V Maximum Current: 30A Deficiency Voltage Protect: 20.5V
