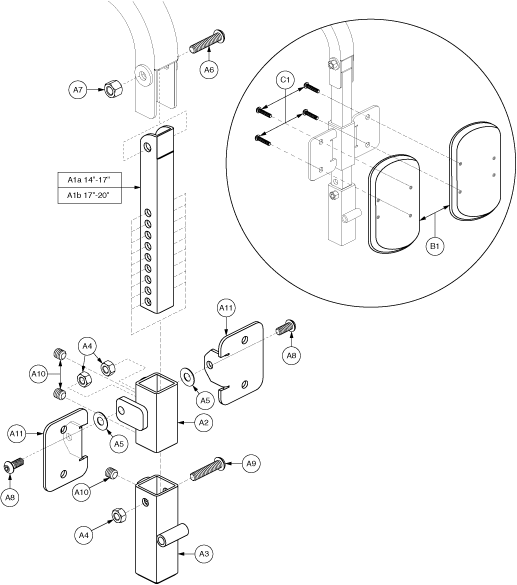

Quantum Q1103 Ultra - Quantum Foot Riggings - High Mount Footplatform - High Mount Lower W/ Calf Pads (14 - 20 Inch Height Adjustment)


Pos.
MPN
Details
A1a - C1
FRMASMB7034

FOOT PLATFORM MOUNTING BRACKET, ASSY, HIGH MOUNT LOWER, 14''L-17''L, W/CALF PADS, TEXTURED

---
A1b - C1
FRMASMB7035

FOOT PLATFORM MOUNTING BRACKET, ASSY, HIGH MOUNT LOWER, 17''L-20''L, W/CALF PADS, TEXTURED

---
A1a - A11
FRMASMB6833

FOOT PLATFORM MOUNTING BRACKET, ASSY, HIGH MOUNT LOWER, 14"L-17"L, SYNERGY SEAT, TEXTURED, C-1360-113

---
A1b - A11
FRMASMB6834

FOOT PLATFORM MOUNTING BRACKET, ASSY, HIGH MOUNT LOWER, 17"L-20"L, SYNERGY SEAT, TEXTURED, D-1360-060

---
A1a
DWR1360E065B

CENTER LENGTH ADJUSTMENT TUBE, HIGH MOUNT, 14"L-17"L, SYNERGY

---
A1b
DWR1360E066B

CENTER LENGTH ADJUSTMENT TUBE, HIGH MOUNT, 17"L-20"L, SYNERGY

---
A2
DWR1000C194B

CALF PAD SUPPORT WELDMENT, HIGH MOUNT, LARGE, SYNERGY

---
A3
DWR1000B199B

LOWER TUBE WELDMENT, HIGH MOUNT FOOT PLATFORM

---
A4
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
A5
WASNYLN1040
View details
A6
SCRASBH1111

SCREW, BHSCS, BLACK ZINC, 3/8-16 X 2.00"

---
A7
NUTNYLK1006

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

$3.29
View details
A8
SCRASBH1022
A9
SCRASBH1099

SCREW, BHSCS, BLACK ZINC, 5/16-18 X 1.625"

---
A10
SCRSETS1011

SCREW, SET, ELMR, 3/8-24 X 3/8"

---
A11
DWR1000D103B

CALF PAD BACKING PLATE, LONG, D-1000-103

---
B1
DWR1327C010

CALF PAD, PEDIATRIC, 6.75"L X 4.38"W X 1.31"TH

---
C1
SCRASBH1004

Pride Mobility

SCREW,BHSCS,BLACK ZINC,1/4-20 X 0.875",GRADE 8 (SCRASBH1004)

$3.29
View details
