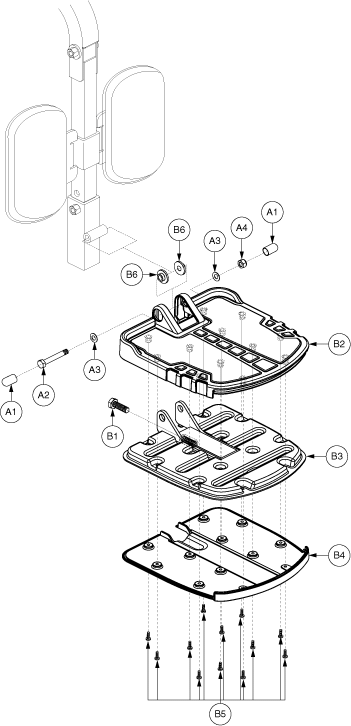

Quantum Q1103 Ultra - Quantum Foot Riggings - High Mount Footplatform - Footrest Platform (6 Wheel Models)


Pos.
MPN
Details
A1 - B6
FRMASMB8585

FOOT PLATFORM, ASSY, HIGH MOUNT SYNERGY, W/ MOUNTING HARDWARE, 6 WHEEL, TEXTURED

---
A1
PROECAP1080

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

---
A2
SCRHHCS1363

Monster Scooter Parts

Footrest Assembly Screw for the Jazzy 610 (SCRHHCS1363)

$1.69
View details
A3
WASWAVY1024

Pride Mobility

Spring Washer for the Jazzy 600 & Quantum Q600 Footrest Assembly (WASWAVY1024)

$0.52 $0.99
View details
A4
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
B1 - B6
FRMASMB9228

FOOT PLATFORM, ASSY, W/RUBBER MAT, ATX, E-1201-005

---
B1
SCRHHCS1543
View details
B2
DWR1201E004

FOOT PLATFORM, TOP COVER, E-1201-004

---
B3
DWR1201E002

FOOT PLATFORM, BASE WELDMENT, E-1201-002

---
B4
DWR1201E003

FOOT PLATFORM, BOTTOM COVER, E-1201-003

---
B5
SCRPPH1044

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 12, FT, ISO 7045, CL 4.8, BZ (SCRPPH1044)

$3.29 $3.32
View details
B6
BRGFLNG1060

BEARING, FLANGE, BLACK, DELRIN, 8.25MM ID X 13.13MM OD X 7MM TH X 24MM FOD X 2MM FTH, SELF TAP, C-1005-025

---
