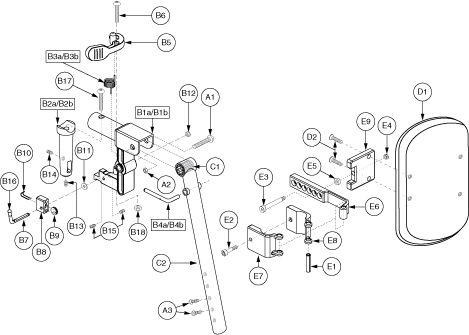

Quantum Q1103 Ultra - Foot Rigging - Elevating Legrest - Upper Elr W/ Calf Pad (6 Hole Adjustment Bracket)


Pos.
MPN
Details
A1 - E9
FRMASMB6484

Pride Mobility

LEGREST,ASSY,ELR #12 UPPER,W/CALF PADS (6 HOLE ADJUSTMENT BRACKET),PAIR (FRMASMB6484)

$230.99 $304.47
View details
A1 - C2
FRMASMB3815

Pride Mobility

Upper Elevating Leg Rest Extension Assembly for Quantum Power Chairs

$131.99
View details
A1 - C2
FRMASMB3814

Pride Mobility

Upper Elevating Leg Rest Extension Assembly for Quantum Power Chairs

$131.99
View details
A1
SCRASBH1020

Pride Mobility

SCREW,BHSCS,BLACK ZINC,5/16-18 X 1.50",GRADE 5 (SCRASBH1020)

$3.29
View details
A2
NUTNJAM1000

NUT, NYLOCK, 5/16-18, JAM

---
A3
SCRASBH1022
B1a - B18
FRMASMB3817

KNEE PIVOT, ASSY, ELR STYLE #12, RIGHT

---
B1b - B18
FRMASMB3816

KNEE PIVOT, ASSY, ELR STYLE #12, LEFT

---
B1a
DWR1200C153

KNEE PIVOT WELDMENT, ELR, LATCH PIN, RIGHT, C-1200-153

---
B1b
DWR1200C154

KNEE PIVOT WELDMENT, ELR, LATCH PIN, LEFT, C-1200-154

---
B2a
DWR1000D184

TAPERED PIN, COPPER ALLOY, 3.5"L, RIGHT, D-1000-184

---
B2b
DWR1000D185

TAPERED PIN, COPPER ALLOY, 3.5"L, LEFT, D-1000-185

---
B3a
DWR1000A223

SPRING, 0.055"WIRE X 0.50"ID X 0.29"H, CLOCKWISE

---
B3b
DWR1000A224

SPRING, 0.055"WIRE X 0.50"ID X 0.29"H, COUNTER CLOCKWISE

---
B4a
DWR1000B123

SLIDE ROD, ELR, RIGHT, B-1000-123

---
B4b
DWR1000B223

SLIDE ROD, ELR, LEFT, B-1000-223

---
B5
DWR1010C001

LATCH, INVESTMENT CAST, ELR/ S/A, C-1010-001

---
B6
SCRASBH1076

Pride Mobility

SCREW,BHSCS,BLACK ZINC,M6-1.0 X 45MM,(MTS: 51206003) (SCRASBH1076)

$3.29
View details
B7
DWR1000B126

ACTUATING HANDLE, ELR LOCKING CAM, B-1000-126

---
B8
DWR1000B125

LOCKING CAM MOUNT, ELR, B-1000-125

---
B9
DWR1000A124

LOCKING CAM, ELR, A-1000-124

---
B10
DWR1000A128

TORSION SPRING, ELR LOCKING CAM, A-1000-128

---
B11
WASNYLN1070

WASHER, NYLON, 8.1MM ID X 19MM OD X 2MM TH

---
B12
NUTNJAM1004

Pride Mobility

NUT, JAM, PVTP, .3125-24, STL, BZ (DWG 147337) (NUTNJAM1004)

$3.29
View details
B13
SCRSETS1054

SCREW, SET, M8-1.25 X 12MM, CUP POINT

---
B14
SCRSETS1053

SCREW, SET, M6-1.0 X 10MM, CUP POINT

---
B15
SCRSETS1047

SCREW, SET, BLACK ZINC, M4-.7 X 4MM

---
B16
PROHDLC1031

Pride Mobility

COVER,BLACK,1"L X 5/16"ID,ROUND FRONT (PROHDLC1031)

$3.29
View details
B17
SCRASBH1043

SCREW, BHSCS, M8-1.25 X 40MM

---
B18
NUTNJAM1021

Pride Mobility

NUT,NYLOCK JAM,BLACK ZINC,M6-1.0 (NUTNJAM1021)

$3.29
View details
C1 - C2
FRMASMB2931

LEGREST, ELR #11 UPPER TUBE, 14"-17" & 17"-20", LEFT/RIGHT

---
C1
DWR1000A125

BUSHING, NYLON, 0.34"ID X 0.90"OD X 1.0"TH

---
C2
DWR1000C131

FRAME, UPPER EXTENSION TUBE, LONG, 10.60"L, ELR STYLE #11

---
D1 - E9
FRMASMB6433
View details
D1
INDPART2003

Monster Scooter Parts

6"x9 1/2"x1 1/2" Black Calf Pad for the Quantum Q600 (INDPART2003)

$15.39
View details
D2
SCRSHFH1106

SCREW, SHFH, BLACK ZINC, M6-1.0 X 20MM, GRADE 10.9

---
E1 - E9
FRMASMB6434

Pride Mobility

CALF PAD MOUNTING BRACKET,ASSY,6 HOLE,DEPTH ADJUSTABLE,C-1200-192 (FRMASMB6434)

$46.19 $47.73
View details
E1
PINSPRG1015

SPRING PIN, 0.25" DIA X 1.50" L

---
E2
SCRALNH1013

SCREW, SHCS, BLACK ZINC, 1/4-20 X 1.00"

---
E3
BLTASHL1066

Pride Mobility

BOLT,SHOULDER,BLACK ZINC,1/4" X 2.00" (BLTASHL1066)

$3.29
View details
E4
NUTNYLK1040

Pride Mobility

NUT, HEX, LOCK, 10 (.190)-24, IFI-100/107, STL, BZ, PVTP (NUTNYLK1040)

$3.29
View details
E5
WASNYLN1065

WASHER, BLACK, NYLON, 0.25" ID X 0.875" OD X 0.1875" TH

---
E6
DWR1200C193

CALF PAD MOUNTING BRACKET, 6 HOLE, DEPTH ADJUSTABLE

---
E7
DWR1200B122

CALF COUPLING BRACKET, LEFT, B-1200-122

---
E8
DWR1200B121

CALF COUPLING BRACKET, RIGHT, B-1200-121

---
E9
DWR1200A078

CALF PAD MOUNTING BRACKET, A-1200-078

---
