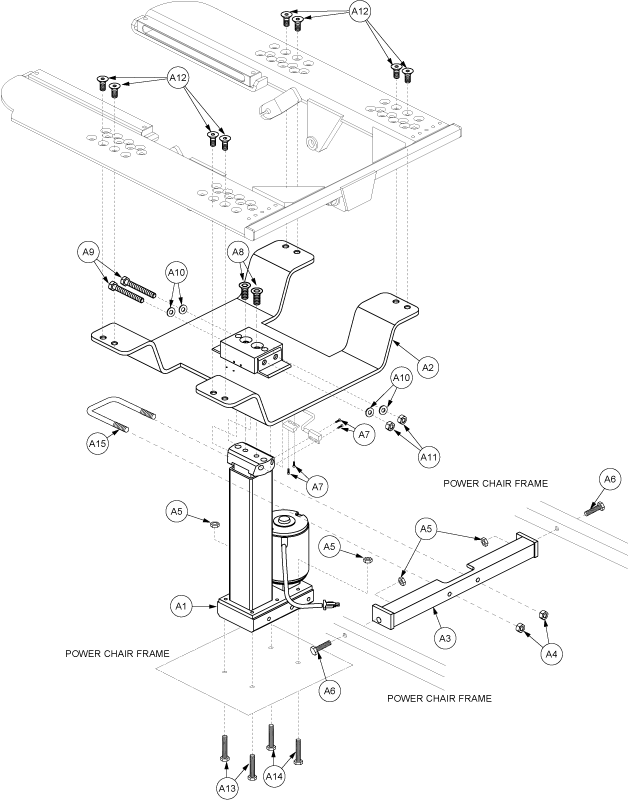

SEAT BASE, ASSY, POWER SEAT, 7'' ELEVATION, W/ TAPERED HEAD/2" SQ. SHAFT ACTUATOR, NON-SWIVEL, 14.322" CENTERS, TRU-BALANCE TILT
Monster Scooter Parts
POWER SEAT INTERFACE PLATE WELDMENT, NON-SWIVEL, SYNERGY TILT, E-1368-010
FRAME, ACTUATOR SUPPORT WELDMENT, 14.322" TOWER CENTERS
Pride Mobility
NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)
Pride Mobility
NUT, JAM, PVTP, .25-20, STL, BZ (DWG 147337) (NUTNJAM1014)
SCREW, HHCS, BLACK ZINC, 1/4-20 X 2.750'', GRADE 8
Pride Mobility
SCREW, PAN HEAD, TYPE I CROSS RECESSED, 4 (.112)-40 X 0.25, ASME B18.6.3, BLK (SCRPPH1290)
Monster Scooter Parts
3/8-16x1.00'' Actuator Screw for the Quantum Q6 Edge (SCRSHFH1093)
Pride Mobility
SCREW,HHCS,BLACK ZINC,1/4-20 X 3.75",GRADE 8 (SCRHHCS1381)
Pride Mobility
WASHER,FLAT,BLACK ZINC,0.3125" ID X 0.75" OD X 0.0625"TH,1/4" USS (WASBLK1001)
Pride Mobility
NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)
Pride Mobility
SCREW, FLAT HEAD, .3125-18 X 0.75, ASTM F835, BZ, PVTP (DRAWING A1360-011) (SCRSHFH1035)
Pride Mobility
SCREW,HHCS,BLACK ZINC,1/4-20 X 1.50",GRADE 8,W/NYLON PATCH,B-1005-149 (SCRHHCS1493)
Pride Mobility
SCREW,HHCS,BLACK ZINC,1/4-20 X 2.00",GRADE 8 (SCRHHCS1248)
U-BOLT, POWER SEAT STABILIZER, 5/16-18, B-1368-015
