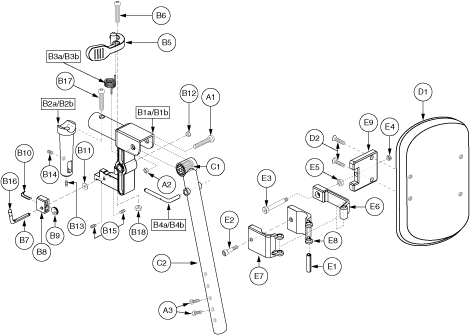

Quantum Q1103 Ultra - Foot Rigging - Elevating Legrest - Upper Elr W/ Calf Pad (1 Hole Adjustment Bracket)

LEGREST, ELR #12 UPPER, W/CALF PADS(1 HOLE ADJ), PAIR

Pride Mobility

Upper Elevating Leg Rest Extension Assembly for Quantum Power Chairs

Pride Mobility

Upper Elevating Leg Rest Extension Assembly for Quantum Power Chairs

Pride Mobility

SCREW,BHSCS,BLACK ZINC,5/16-18 X 1.50",GRADE 5 (SCRASBH1020)

NUT, NYLOCK, 5/16-18, JAM

Monster Scooter Parts

Black Zinc 5/16-18x0.750" Grade 5 Screw for the Pride Ranger, Pride Wrangler (PMV 600/PMV 620/PMV 650), Jazzy 600, and Quantum Q1650 (SCRASBH1022)

KNEE PIVOT, ASSY, ELR STYLE #12, RIGHT

KNEE PIVOT, ASSY, ELR STYLE #12, LEFT

KNEE PIVOT WELDMENT, ELR, LATCH PIN, RIGHT, C-1200-153

KNEE PIVOT WELDMENT, ELR, LATCH PIN, LEFT, C-1200-154

TAPERED PIN, COPPER ALLOY, 3.5"L, RIGHT, D-1000-184

TAPERED PIN, COPPER ALLOY, 3.5"L, LEFT, D-1000-185

SPRING, 0.055"WIRE X 0.50"ID X 0.29"H, CLOCKWISE

SPRING, 0.055"WIRE X 0.50"ID X 0.29"H, COUNTER CLOCKWISE

SLIDE ROD, ELR, RIGHT, B-1000-123

SLIDE ROD, ELR, LEFT, B-1000-223

LATCH, INVESTMENT CAST, ELR/ S/A, C-1010-001

Pride Mobility

SCREW,BHSCS,BLACK ZINC,M6-1.0 X 45MM,(MTS: 51206003) (SCRASBH1076)

ACTUATING HANDLE, ELR LOCKING CAM, B-1000-126

LOCKING CAM MOUNT, ELR, B-1000-125

LOCKING CAM, ELR, A-1000-124

TORSION SPRING, ELR LOCKING CAM, A-1000-128

WASHER, NYLON, 8.1MM ID X 19MM OD X 2MM TH

Pride Mobility

NUT, JAM, PVTP, .3125-24, STL, BZ (DWG 147337) (NUTNJAM1004)

SCREW, SET, M8-1.25 X 12MM, CUP POINT

SCREW, SET, M6-1.0 X 10MM, CUP POINT

SCREW, SET, BLACK ZINC, M4-.7 X 4MM

Pride Mobility

COVER,BLACK,1"L X 5/16"ID,ROUND FRONT (PROHDLC1031)

SCREW, BHSCS, M8-1.25 X 40MM

Pride Mobility

NUT,NYLOCK JAM,BLACK ZINC,M6-1.0 (NUTNJAM1021)

LEGREST, ELR #11 UPPER TUBE, 14"-17" & 17"-20", LEFT/RIGHT

BUSHING, NYLON, 0.34"ID X 0.90"OD X 1.0"TH

FRAME, UPPER EXTENSION TUBE, LONG, 10.60"L, ELR STYLE #11

Pride Mobility

CALF PAD,ASSY,BLACK,9.50" X 6",W/MOUNTING BRACKET,LEFT/RIGHT (FRMASMB1984)

Monster Scooter Parts

6"x9 1/2"x1 1/2" Black Calf Pad for the Quantum Q600 (INDPART2003)

Pride Mobility

SCREW, FLAT HEAD, TYPE H, M6X1 X 25, FT, ISO 7046-1, CL 4.8, BZ (SCRPFH1035)

Pride Mobility

MOUNTING BRACKET,ASSY,CALF PAD,1 HOLE (FRMASMB2195)

SPRING PIN, 0.25" DIA X 1.50" L

SCREW, SHCS, BLACK ZINC, 1/4-20 X 1.00"

Pride Mobility

BOLT,SHOULDER,BLACK ZINC,1/4" X 2.00" (BLTASHL1066)

Pride Mobility

NUT, HEX, LOCK, 10 (.190)-24, IFI-100/107, STL, BZ, PVTP (NUTNYLK1040)

WASHER, BLACK, NYLON, 0.25" ID X 0.875" OD X 0.1875" TH

CALF PAD SWING BRACKET, B-1200-123

CALF COUPLING BRACKET, LEFT, B-1200-122

CALF COUPLING BRACKET, RIGHT, B-1200-121

CALF PAD MOUNTING BRACKET, A-1200-078
