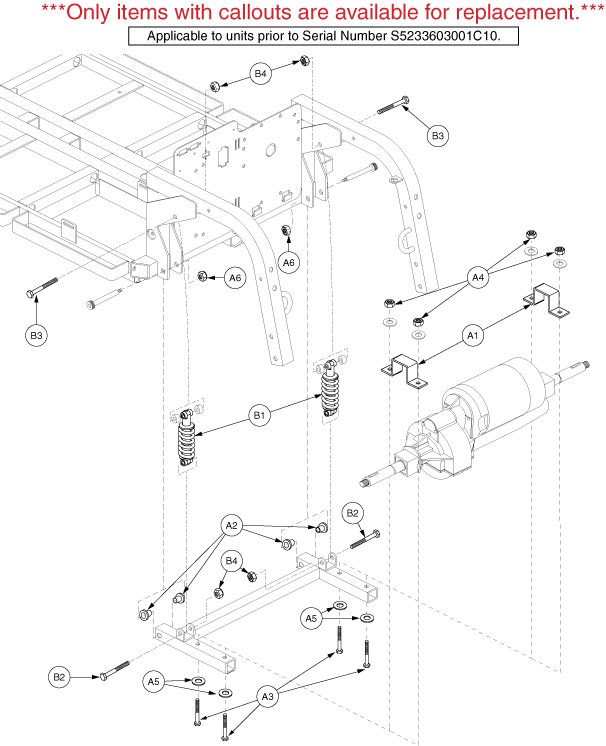

Pride Victory XL (SC2700) - Frame Components - Trail Arm


Pos.
MPN
Details
A1
DWR9500B033

AXLE, FRAME, MOUNTED, B-9500-033

---
A2
DWG9900A040

BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004

---
A3
SCRHHCS1057

SCREW, HHCS, ZINC, M6-1.0 X 40MM

---
A4
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
A5
WASSTND1080

WASHER, FLAT, M6, STANDARD

---
A7
PLSTIE1004
View details
B1
INDPART2077

SPRING,SHOCK COIL,NON-ADJUSTABLE,BLACK,5.00" L,0.586" STROKE

---
B2
SCRHHCS1121

SCREW, HHCS, BLACK ZINC, M8-1.25 X 90MM

---
B3
SCRHHCS1199

SCREW, HHCS, ZINC, M8-1.25 X 40MM

---
B4
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
