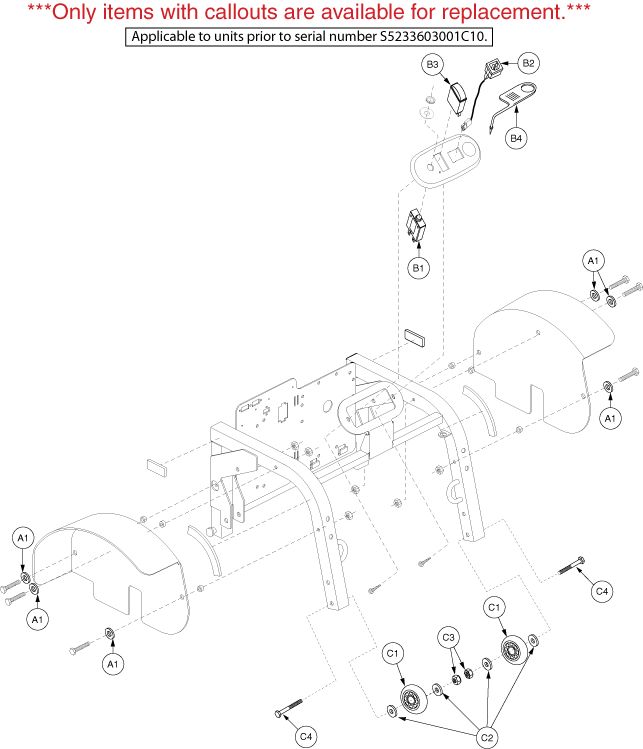

Pride Victory XL (SC2700) - Frame Components - Rear - S5233603001c10 And Prior


Pos.
MPN
Details
A1 - B4
FRMASMB4771

FRAME, ASSY, REAR, SC2700

---
A1
WASSTND1080

WASHER, FLAT, M6, STANDARD

---
A2
PLSTIE1002

Pride Mobility

TIE WRAP,BLACK,6" (PLSTIE1002)

$3.29
View details
A3
PLSTIE1004
View details
B1 - B4
FRMASMB4772

BRACKET, ASSY, AMMETER/CIRCUIT BREAKER/CHARGER RECEPTACLE MOUNTING, SC2700

---
B1
ELECBRK1007

Mechanical Products

40 Amp Circuit Breaker with Right Angle Screw Terminals

$49.49
View details
B2
HARUSHD2249

ELECTRONIC, HARNESS, CHARGER, UNIVERSAL ADAPTER

---
B3
ELEMETR1003

ELECTRONIC, AMMETER, 0-6

---
B4
PROBOOT1011

COVER, CHARGER, RUBBER, AC INPUT, W/PULL RING

---
C1 - C4
WHLASMB1411

WHEEL, ASSY, ANTI-TIP, VICTORY XL3

---
C1
WHLATIP1009

WHEEL, ANTI-TIP, 68MM OD X 26.5MM THK, B-1020-029

---
C2
WASSTND1067

WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH

---
C3
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
C4
SCRHHCS1179

SCREW, HHCS, BLACK ZINC, M8-1.25 X 75MM, GRADE 8.8

---
