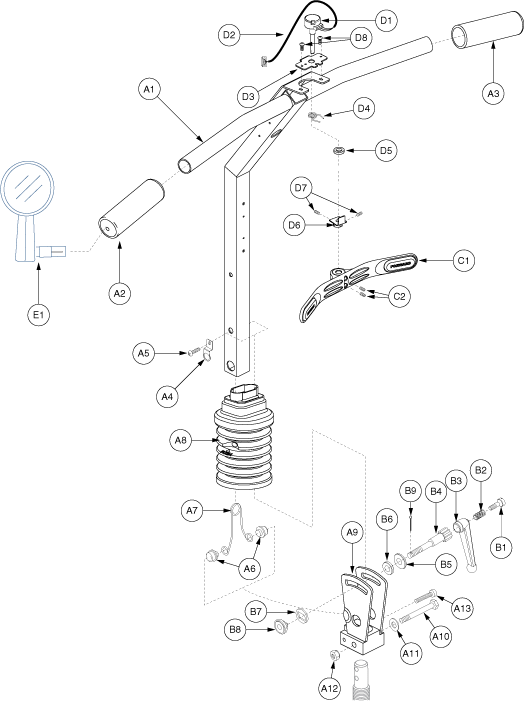

Pride Victory XL (SC2700) - Frame Components - Tiller - S5209703005c10 - S5228703001c10

TILLER, ASSY, TILTING, VICTORY XL SERIES, MIRROR READY

TILLER, WELDMENT VICTORYXL 2000 3WHEEL

HAND GRIP, BLACK, FOAM, 5.75"L, W/O MIRROR CUT-OUT

HAND GRIP, BLACK, FOAM, 5.75"L, SMOOTH, W/MIRROR CUT-OUT

BRKT, RESRTAINT, SLIDE WASHER, TILTING TILLER, SC160/170

SCREW, PRH, ZINC, M4 X 15MM, SHEET METAL

BUTTON, PUSH, FOLDING PRESS, SC-150

SPRING, COMPRESSION, STEEL

TILLER, BOOT, 4-RING, SQUARE TOP, XL SERIES

STEERING BLOCK, VICTORY XL3, C-9550-006

SCREW, HHCS, M8-1.25 X 50MM

WASHER, FLAT, ZINC, M8 X 16MM X 1.0TH

NUT, NYLOCK, BLACK ZINC, M8-1.25

Monster Scooter Parts

Motor Mount Bracket Screw for the Jazzy 1101 and Jazzy 1121 (SCRALNH1038)

Pride Mobility

TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 (PLSTIE1004)

HANDLE, ASSY, LOCKING, TILLER, VICTORY

BOLT, SHOULDER, M4 X 14MM, .7T

SPRING, MUSIC WIRE, WIRE DIAMETER, .7MM, 7.5MM ID, B-7600-012

TILLER, HANDLE, LOCKING, CHROME PLATED, (CL:143302CR)

BOLT, INNER, LEVER, TILT, LOCKING TEETH, M8 - 1.25T X 44MM

WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH

WASHER, NYLON, M8 X 19MM OD X 3.5MM TH

WASHER, WHITE, NYLON 6/6, 26.9MM OD X 2MM THK, SLIDE

NUT, SLIDE, M8 X 1.25T, C-9590-024

LEVER, THROTTLE CONTROL, PLASTIC, CARELINE, SOFT GRIP

LEVER, THROTTLE CONTROL, 190MM, CARELINE, C-1020-021

SCREW, SET, M4-.7 X 6MM

ELECTRONIC, HARNESS, 3 PIN, SC160/170

BRACKET, MOUNTING, T-POT

SPRING, TORSION, 1.16" L X 0.64" W, POTENTIOMETER, A-1000-248

WASHER, NYLON, 10MM ID X 18MM OD X 3.6MM TH, A-1000-245

SHIM, POTENTIOMETER, A-1000-062

SCREW, SET, BLACK ZINC, M5-.8 X 5MM

SCREW, PPH, BLACK ZINC, M3 X 15MM, THREAD CUTTING
