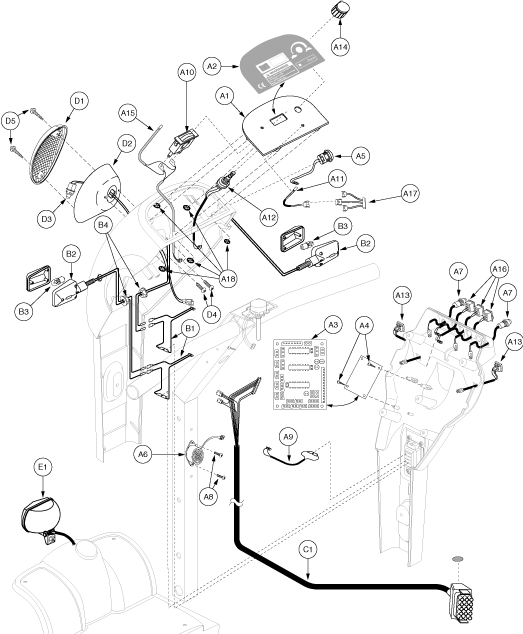

Pride Victory XL (SC2700) - Console - S5204403002c10 - Prior


Pos.
MPN
Details
A1 - A18
ELEASMB3078

ELECTRONIC, ASSY, CONSOLE, DOMESTIC, SC2700

---
A1
PLSINDV1160

ELECTRONIC, PANEL, CENTER CONSOLE, PLASTIC, VICTORY XL4, SC2700

---
A2
DWR9560L004

DECAL, CENTER CSL PANEL, SC2700, VICTORY XL4

---
A3
CTLDC1272

ELECTRONIC, PCB, TURN SIGNAL, SC2700

---
A4
SCRPPH1115

SCREW, PPH, M3 X.35 X 8MM

---
A5
DWR9550H001

ELECTRONIC, HARNESS, KEY SWITCH, 2 PIN MOLEX CONNECTOR, VICTORY XL3

---
A6
DWR9570H027

ELECTRONIC, HARNESS, BUZZER, VICTORY 2002, UK/USA (320702)

---
A7
DWR9930H008

ELECTRONIC, HARNESS, HORN, 2 PIN MOLEX CONNECTOR, MOMENTARY SWITCH, SUNDANCER 2001/VICTORY XL 3

---
A8
SCRPPH1094

SCREW, PPH, BLACK ZINC, M3 X 10MM, AB SELF THREADING

---
A9
DWR9550H005

ELECTRONIC, HARNESS, FUSE, 2" FLAG, 4"FLAG, 2 PIN MOLEX CONNECTOR, VICTORY XL3

---
A10
ELEMETR1008

ELECTRONIC, METER, VOLT, CSL, SNAP-IN

---
A11
DWR9760H005

ELECTRONIC, STATUS LED LIGHT, SC2700

---
A12
DWR9760H004

ELECTRONIC, HARNESS, SPEED POT, 3P MOLEX , 25K, SC2700

---
A13
DWR9560H003

ELECTRONIC, HARNESS, TURN SIGNAL SWITCH, VICTORY XL 4, SC2700(312055)

---
A14
PLSKNCP1013

SPEED POT, PLASTIC SPEED POT, SC150

---
A15
DWR9550H008

ELECTRONIC, HARNESS, VOLT METER/LED CONNECTION, 10", 2 FLAG, SC260, H-9550-008

---
A16
DWR9930H010

ELECTRONIC, HARNESS, SWITCH, ROCKER, 2 PIN MOLEX CONNECTOR, 12" L, HEADLIGHT/HAZARD/PWR SEAT

---
A17
DWR9760H007

ELECTRONIC, HARNESS, STATUS LED, POWER SEAT SWITCH, SC2700

---
A18
NUTRTC1000

NUT, REGULAR, 0.125" STUD DIAMETER, TRHEAD CUTTING, {PALNUT FASTENERS SR125004}

---
B1 - B5
ELEASMB2762

TURN SIGNAL, ASSY, FLEXIBLE STALK, VICTORY XL 3

---
B1
DWR9550H003

ELECTRONIC, TURN SIGNAL, 2 PIN MOLEX CONNECTOR, 2 PINK FLAGS, VICTORY XL3

---
B2
LGTTSNG1009

TURN, SIGNAL, FLEXIBLE STALK, VICTORY XL3

---
B3
LGTBULB1005

BULB, 24V, MOTORCYCLE STYLE 1820

---
B4
NUTSERF1006

NUT, SERRATED, ZINC, M8 X 1.25T

---
B5
CONREC1013

CONNECTOR, TAB, 110X.020, NO INSULATED

---
C1
DWR9760H011

ELECTRONIC, HARNESS, FRONT TO REAR, TWO PIECE FRAME, SC2700, H-9760-011

---
D1 - D5
ELEASMB3079

LIGHTING, HEADLIGHT, UPPER, SC2700

---
D1
DWR9560C015

HEADLIGHT, LENS, UPPER, VICTORY XL 4, SC2700, C-9560-015

---
D2
DWR9560C016

HEADLIGHT, BASE, UPPER, VICTORY XL 4, SC2700, C-9560-016

---
D3
DWR9570H013

ELECTRONIC, HARNESS, HEAD LIGHT, 2 PIN, W/BULB, UK/USA (312038)

---
D4
SCRPPH1062

SCREW, PPH, BLACK ZINC, M4 X 12MM, THREAD CUTTING

---
D5
SCRPPH1064

SCREW, PPH, ZINC, M4 X .7T X 10MM, SELF TAPPING

---
E1
ELEASMB3081

LIGHTING, HEADLIGHT, ASSY, LOWER, HELLA, SC2700

---
