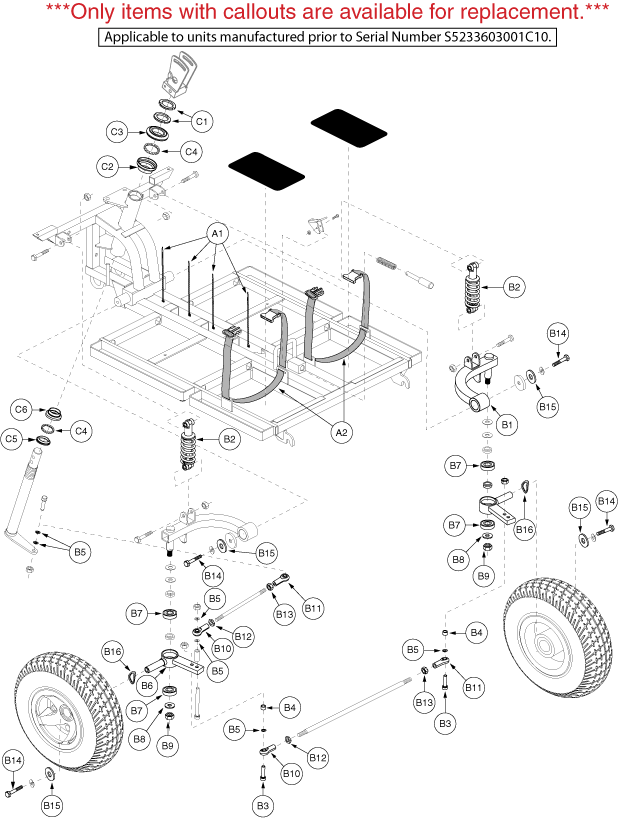

Pride Victory XL (SC2700) - Frame Components - Front

Pride Mobility

TIE WRAP,BLACK,6" (PLSTIE1002)

STRAP, 1.00" X 37.00, BATTERY, CINCHING, WITH CLIPS

WELDMENT, J-ARM, RIGHT, VICTORY XL 2002, 4 WHEEL, E-9560-006

SPRING, SHOCK COIL, NON-ADJUSTABLE, RED, 141.5MM L, RATE: 320 LBS/SQ IN, C-9560-012

SCREW, SHCS, BLACK ZINC, M8-1.25X40MM

SPACER, BLACK ZINC, STEEL, 8.40MM ID X 14.00MM OD X 12.00MM LG

WASHER, HIGH COLLAR LOCK, BLACK ZINC, M8

FRAME, WELDMENT, SPINDLE, LEFT, VICTORY XL 2002, 4 WHEEL, C-9560-009

Pride Mobility

BEARING, SLEEVE,15MM ID X 35MM OD X 11MM THK,(PEER BEARING: 6202-2RS),C1005-046 (BRGSLV1030)

WASHER, FLAT, BLACK ZINC, M12

Monster Scooter Parts

M12-1.25 Grade 8 Black Zinc Nut for the Pride Hurricane (PMV5001), Pride Legend XL (SC3450), and Jazzy 600 XL (NUTNYLK1066)

TIE ROD END, BLACK ZINC, M8, SPHERICAL, LEFT

TIE ROD END, BLACK ZINC, M8, SPHERICAL, RIGHT

Monster Scooter Parts

M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters

Monster Scooter Parts

M8-1.25 Tie Rod Nut for 4-Wheel Go-Go & Pride Scooters

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 10.9

WASHER, FLAT, BLACK ZINC, M8 X 22MM OD X 2MM THK

WASHER, WAVY, STEEL, 15.47MM ID X 21.82MM X .254MM THK

Monster Scooter Parts

Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)

WASHER, LOCK, 1 ", FRONT FORK, B-1020-037

HEAD CUP, UPPER, CHROME, B-1020-036

CONE HEAD, UPPER, CHROME, C-1020-029

RETAINER, BALL

CONE HEAD, LOWER, CHROME, B-1020-034

HEAD CUP, LOWER, CHROME, B-1020-035
