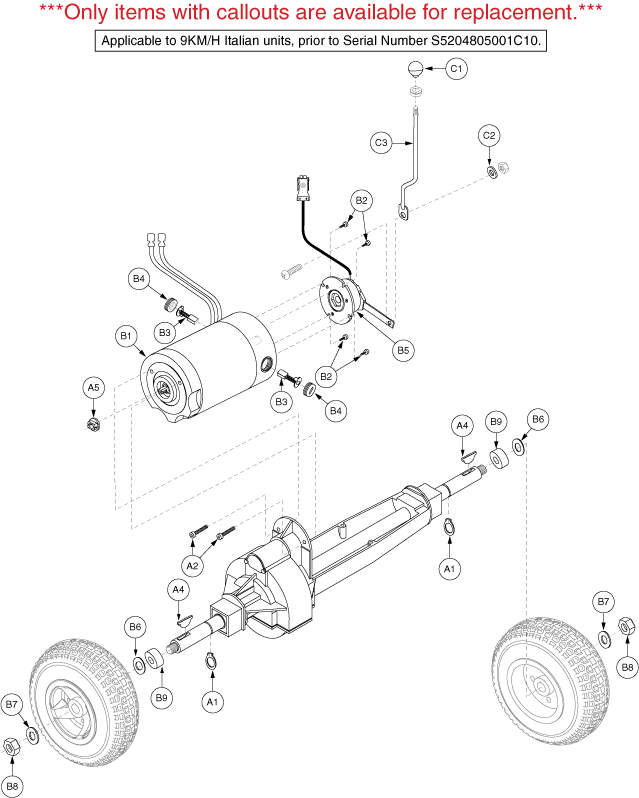

Pride Victory XL (SC2700) - Drive Assembly

Pride Mobility

RING, RETAINING,3/4" (RNGRTAN1002)

SCREW, SHCS, BLACK OXIDE, 1/4-20 X 2-1/2"

Pride Mobility

SCREW,SHCS,BLACK,M6-1.0 X 25MM (SCRSHCS1063)

Monster Scooter Parts

3/16" x 3/16" x 7/8" Axle Key (KEYSTL1006)

SHAFT COUPLER, ROCKWELL TRANAXLE/END BELL

MOTOR, ASSY, BRAKE, ROCWELL 675 XL (675-07-074)/INERTIA DYNAMICS (2104-0059-0002-9354)

MOTOR, ROCKWELL, 675 XL, (675-07-074)

SCREW, SHCS, BLACK, 8-32 X 1/2"L

MOTOR, BRUSH, RELIANCE

MOTOR, BRUSH, CAP, RELIANCE

Monster Scooter Parts

Brake Assembly for Pride Maxima (SC900/SC940) and Pride Victory XL (SC2700) (DRV1030)

WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY

Monster Scooter Parts

Transaxle Nut for Pride Celebrity X (SC400/SC4001/SC440/SC4401) & iRide Scooters (NUTNJAM1001)

SPACER, STEEL, 19.1MM ID X 32MM OD X 12.7MM TH, ZINC

KNOB, BLACK, M6 X 1.0T, THREADED, SPHERICAL

WASHER, NYLON, 6MM ID X 13MM OD X 1MM TH

FREEWHEEL LEVER, VICTORY XL-3
