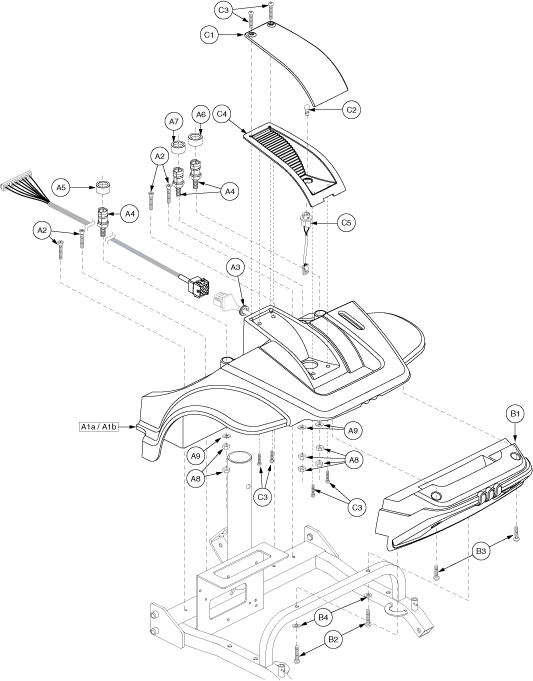

Pride Revo (SC63) - Shroud Assemblies - Rear


Pos.
MPN
Details
A1a - A9
SHDASMB3961

SHROUD, ASSY, REAR BODY, RED, SC63/64

---
A1b - A9
SHDASMB3962

SHROUD, ASSY, REAR BODY, BLUE, SC63/64

---
A1a
SHDPNTD2459

SHROUD, REAR BODY, PAINTED, RED, SC63/64

---
A1b
SHDPNTD2461

SHROUD, REAR BODY, PAINTED, BLUE, SC63/64

---
A2
SCRPFH1047

SCREW, PFH, BLACK ZINC, M4-.7 X 20MM

---
A3
DWR9995B031

GROMMET, FRONT-TO-REAR CABLE, SC63/64, B-9995-031

---
A4
DWR9995B020

CONTACT, BATTERY, FEMALE, SC63/64, B-9995-020

---
A5
DWR9995A006A

COVER, BATTERY CONNECTOR, RED, POSITIVE, SC63/64, A-9995-006

---
A6
DWR9995A006B

COVER, BATTERY CONNECTOR, BLACK, NEGATIVE, SC63/64, A-9995-006

---
A7
DWR9995A006C

COVER, BATTERY CONNECTOR, BLUE, INHIBIT, SC63/64, A-9995-006

---
A8
NUTNJAM1029

NUT, JAM, ZINC, M6-1.0

---
A9
DWR9995A009

WASHER, BATTERY CONTACT, COPPER W/TIN PLATING, 5.94MM ID X 15.88MM OD X 1.63MM THK, A-9995-009

---
B1 - B4
FRMASMB6304

BUMPER, ASSY, REAR, SC63/64

---
B1
DWR9995C017

BUMPER, REAR, SC63/64, W/HANDLE, C-9995-017

---
B2
SCRPPH1287

SCREW, PPH, BLACK ZINC, M6 X 1.0T X 30MM, GRADE 8.8

---
B3
SCRPPH1288

SCREW, PPH, BLACK ZINC, M6 X 1.0T X 20MM, GRADE 8.8

---
B4
WASSTND1113

WASHER, FLAT, BLACK ZINC, M6, STANDARD

---
C1 - C5
ELEASMB3562

LIGHTING, REAR, ASSY, SC63/64

---
C1
DWR9995D009

LIGHTING, TAIL LIGHT, SC63/64, D-9995-009

---
C2
LGTBULB1004

BULB, 24V, C5W

---
C3
SCRPPH1109

SCREW, PPH, M3.5 X 10MM, SHEET METAL

---
C4
DWR9995D010

LIGHTING, BASE, TAIL LIGHT, W/VACUUM METALIZED, SC63/64, D-9995-010

---
C5
HARUSHD2332

ELECTRONIC, HARNESS, HEADLIGHT/TAILLIGHT, 2 PIN 6", MOLEX CONNECTOR

---
