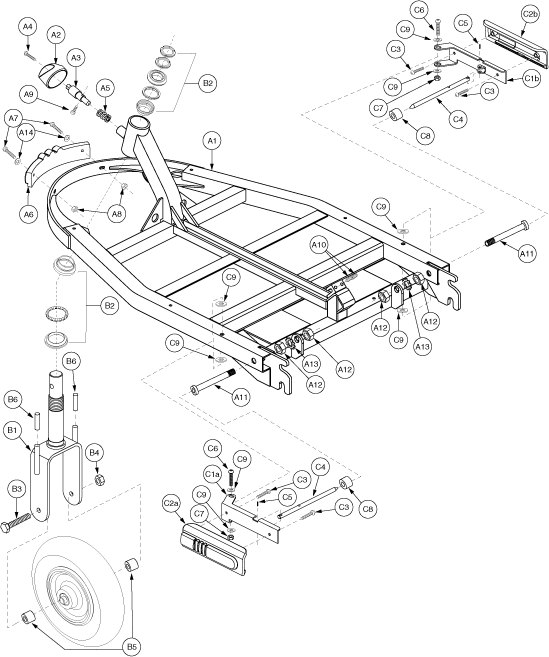

Pride Revo (SC63) - Frame Assemblies - Front


Pos.
MPN
Details
A1 - A14
FRMASMB6297

FRAME, ASSY, FRONT, SC63

---
A1
DWR9995E008

FRAME, FRONT WELDMENT, SC63, E-9995-008

---
A2
DWR9995B023

TILLER, LOCK KNOB, SC63, B-9995-023

---
A3
DWR9995B014

TILLER, LOCK, PLUNGER, SC63, B-9995-014

---
A4
SCRPPH1163

Monster Scooter Parts

M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)

$1.69 $1.99
View details
A5
SPGRAW1064

SPRING, 15.5MM FL X 0.90MM WIRE DIA X 10.80MM OD X RATE: 2.46N/MM, (LEE SPRING: LCM-090F-3), B-9983-044

---
A6
DWR9995C020

BUMPER, BUMPERETTE, FRONT, SC63, C-9995-020

---
A7
SCRPPH1153

Pride Mobility

M4-.7x20 mm Pan Head Phillips Machine Screw (SCRPPH1153)

$0.84 $0.99
View details
A8
NUTNYLK1065

Pride Mobility

NUT, LOCK, M4X0.7, ISO 10511, CL 04, BZ, PVTP (NUTNYLK1065)

$3.29
View details
A9
SCRSHCS1096

Pride Mobility

SCREW, SOCKET HEAD, M4X0.7 X 20, ISO 4762 CL 12.9, BZ (SCRSHCS1096)

$3.29
View details
A10
SCRSETS1063

SCREW, SET, BLACK ZINC, M6-1.0 X 10MM

---
A11
DWR9995B027

GUIDE TUBE, BATTERY LOCK-UP, SC63/64, B-9995-027

---
A12
NUTJAM1024

NUT, JAM, BLACK ZINC, M10-1.5

---
A13
WASLOCK1044

WASHER, EXTERNAL TOOTH, M10, LOCK

---
A14
WASSTND1105

WASHER, FLAT, BLACK ZINC, M4

---
B1 - B6
FRMASMB6302

FORK, ASSY, SC63

---
B1
DWR9995E007

FORK, FRONT, WELDMENT, SC63, E-9995-007

---
B2
HDWASMB1021

KIT, BEARING/RACE, MFGR GLOBAL FAB TECH

---
B3
SCRHHCS1121

SCREW, HHCS, BLACK ZINC, M8-1.25 X 90MM

---
B4
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
B5
DWR9998A008

SPACER, 0.43 OD X 0.34 ID, 1.25MM THK, BEARING, FRONT TIRE, A-9998-008

---
B6
DWR9660B040

NOISE DAMPER, CLEAR, VINYL, M8 ID X 11MM OD X 27 MM, B-9660-040

---
C1a - C9
FRMASMB6300

FRAME, ASSY, BATTERY LOCK-UP, LEFT SIDE, SC63/64

---
C1a
DWR9995C008

FRAME, BATTERY LOCK-UP, WELDMENT, LEFT, SC63/64, C-9995-008

---
C2a
DWR9995C013

BATTERY, RELEASE HANDLE, SC63/64, LEFT BATTERY BOX, C-9995-013

---
C1b - C9
FRMASMB6299

FRAME, ASSY, BATTERY LOCK-UP, RIGHT SIDE, SC63/64

---
C1b
DWR9995C010

FRAME, BATTERY LOCK-UP, WELDMENT, RIGHT, SC63/64, C-9995-010

---
C2b
DWR9995C014

BATTERY, RELEASE HANDLE, SC63/64, RIGHT BATTERY BOX, C-9995-014

---
C3
SCRASBH1103

SCREW, BHSCS, BLACK ZINC, M4-.7 X 8MM

---
C4
DWR9995B017

PIN, DETENT, BATTERY LOCK-UP, SC63/64, B-9995-017

---
C5
INDPART2323

ROLL PIN, 4MM X 14MM

---
C6
SCRASBH1069

SCREW, BHSCS, BLACK ZINC, M6-1.0 X 50MM, GRADE 8.8

---
C7
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
C8
DWR9995B029

SPACER, LOCK-UP HANDLE, M7.3 ID X 24.7MM OD X 15.2MM THK, SC63/64, B-9995-029

---
C9
DWR9995A002

SPACER, LOCK-UP HANDLE, M6.5 ID X 14MM OD X 1.0MM THK, SC63/64, A-9995-002

---
