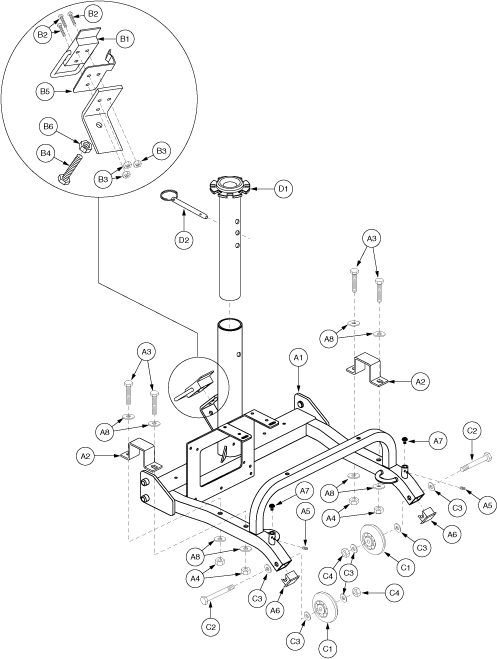

Pride Revo (SC63) - Frame Assemblies - Rear


Pos.
MPN
Details
A1 - B6
FRMASMB6298

FRAME, ASSY, REAR, SC63/64

---
A1
DWR9995E001

FRAME, REAR WELDMENT, SC63/64, E-9995-001

---
A2
DWR9998A005

BRACKET, AXLE MOUNT, BLACK, POWDER COAT, REVO, A-9998-005

---
A3
SCRHHCS1302

SCREW, HHCS, BLACK ZINC, M8-1.25 X 45 MM, GRADE 8.8

---
A5
SCRSETS1010

Pride Mobility

SCREW, SET, CONE POINT, M4X0.7 X 5, ISO 4027, 45H, STL, BZ (SCRSETS1010)

$2.47 $3.29
View details
A6
DWR9995B028

CAP, ANTI-TIP TUBE, REAR FRAME, SC63/64, B-9995-028

---
A7
DWR9995B030

PLUG, BLACK, RUBBER, 6.81MM PLUG DIAMETER, 13.2MM OVERALL LENGTH, B-9995-030

---
A8
WASSTND1091

WASHER, FLAT, M8

---
B1 - B6
FRMASMB5153

HOOK, ASSY, LOCK-UP, GO-GO, C-1030-028

---
B1
DWR9905B022

FRAME, MECHANISM, HOOK LOCK UP, SC50, SONIC, B-9905-022

---
B2
SCRPPH1137

SCREW, PPH, SILVER, ZINC, M4-.7 X 15MM

---
B3
NUTNYLK1020

NUT, NYLOCK, ZINC, M4-.7

---
B4
SCRHHCS1127

SCREW, HHCS, ZINC, M8-1.25 X 25MM, GRADE 8.8

---
B5
DWR9905B034

LATCH, RETAINER, CATCH, SC50/3000, B-9905-034

---
B6
NUTJAM1015

Monster Scooter Parts

M8-1.25 Black Jam Nut (NUTJAM1015)

$4.39
View details
C1 - C4
WHLASMB1555

WHEEL, ASSY, ANTI-TIP, SC63/64

---
C1
WHLATIP1005
View details
C2
SCRHHCS1362

SCREW, HHCS, BLACK ZINC, M8-1.25 X 70MM, GRADE 10.9

---
C3
WASSTND1061

WASHER, FLAT, ZINC, M8 X 16MM X 1.0TH

---
C4
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
D1 - D2
FRMASMB6335

SEAT POST, ASSY, 3 HOLE/8 POSITION, SC63/64

---
D1
DWR9995C019

WELDMENT, UPPER SEAT POST, 3 HOLE, 8 POSITION, SC63/64, C-9995-019

---
D2
DWR9995A008

CLEVIS PIN, SEAT POST, SC63/64, A-9995-008

---
