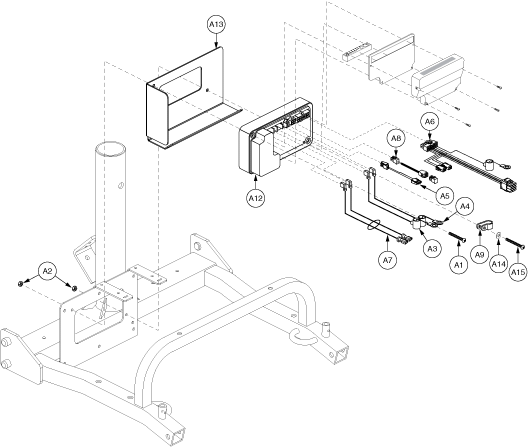

Pride Revo (SC63) - Rear Electronics - S6823306001c30 - Subsequent

ELECTRONIC, ASSY, REAR ELECTRONICS, S-DRIVE, SC63/SC64

Pride Mobility

SCRPPH1143 - Zinc Plated Pan Head Screw, Type H, M4 x 0.7 x 30, FT, ISO 7045, CL 4.8

Pride Mobility

NUTNYLK1065 - Zinc Plated Lock Nut, M4 x 0.7, ISO 10511, CL 04, PVTP

ELECTRONIC, HARNESS, BATTERY NEGATIVE, S-DRIVE READY, SC63/64, H-9995-016

ELECTRONIC, HARNESS, BATTERY POSITIVE, S-DRIVE READY, SC63/64, H-9995-017

ELECTRONIC, HARNESS, BRAKE, S-DRIVE READY, SC63/64, H-9995-018

ELECTRONIC, HARNESS, CONTROLLER INTERFACE, S-DRIVE, SC63/64, H-9995-019

ELECTRONIC, HARNESS, MOTOR, S-DRIVE READY, SC63/64, H-9995-020

Pride Mobility

Controller Programming Harness for the Pride Pursuit (SC713), Pursuit 2 (S7132), & Revo (SC63/SC64) (DWR9555H038)

CLAMP, CABLE, WHITE, 5/8"

Pride Mobility

PLSTIE1001 - Black Plastic Tiedown Strap, 95 LG, Spec No. 2106329-1.5-22-130-V2

Pride Mobility

PLSTIE1004 - Black Plastic Tie-Down Strap, 200mm Long

CONTROLLER, ASSY, P & G, S-DRIVE, 45 AMP, W/METAL CASTING, SC63/SC64

CONTROLLER, BRACKET, MOUNTING, S-DRIVE, SC63/SC64, E-9995-024

WASHER, FLAT, BLACK ZINC, M4

SCREW, PPH, BLACK ZINC, M4-.7 X 38MM
