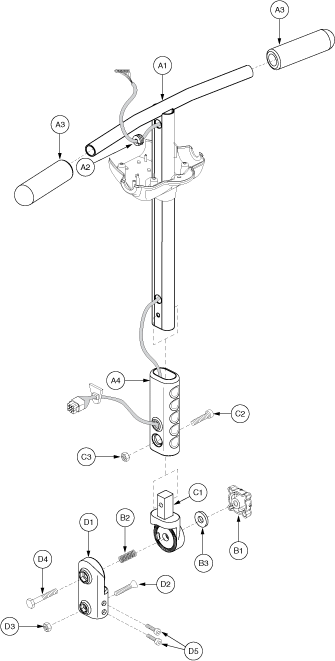

Pride Revo (SC63) - Frame Assemblies - Tiller


Pos.
MPN
Details
A1 - D5
FRMASMB6301

TILLER, ASSY, SC63

---
A1
DWR9995E015

TILLER, WELDMENT, SC63, E-9995-015

---
A2
GRMRUB1012

GROMMET, RUBBER, 14MM ID X 22MM OD X 10MM TH X 3.5MM GROOVE

---
A3
DWR9998B015

TILLER, GRIP, FOAM, REVO, B-9998-015

---
A4
DWR9998C019

GRIP, TRANSPORTATION, RUBBER, REVO, C-9998-019

---
B1 - D5
FRMASMB2848

TILLER, ASSY, UPPER/LOWER, PIVOT, REVO

---
B1
DWR9998B010

TILLER, KNOB, ADJUSTMENT, REVO, B-9998-010

---
B2
SPGRAW1004

SPRING, MUSIC WIRE, 3/8" X 1 1/2", TILLER, REVO, 13.72MM OD X 25.4MM FREE LENGTH, A-9998-023

---
B3
DWR9998A016

SPACER, NYLON, 11MM ID X 20MM OD X 1.5MM THK

---
C1 - C3
FRMASMB2823

TILLER, PIVOT, UPPER, REVO

---
C1
DWR9998C018

TILLER, BLOCK, UPPER, REVO, C-9998-018

---
C2
SCRSHCS1034

SCREW, SHCS, BLACK ZINC, M8-1.25 X 35MM

---
D1 - D5
FRMASMB2824

TILLER, PIVOT, LOWER, REVO

---
D1
DWR9998C020

TILLER, BLOCK, LOWER, REVO, C-9998-020

---
D2
SCRSHFH1018

SCREW, SHFH, BLACK ZINC, M8-1.25 X 45MM

---
D3
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
D4
SCRHHCS1364

SCREW, HHCS, BLACK ZINC, M10-1.5 X 60MM, GRADE 8.8

---
D5
SCRSHCS1133

SCREW, SHCS, BLACK ZINC, M6-1.0 X 12MM, GRADE 8.8

---
