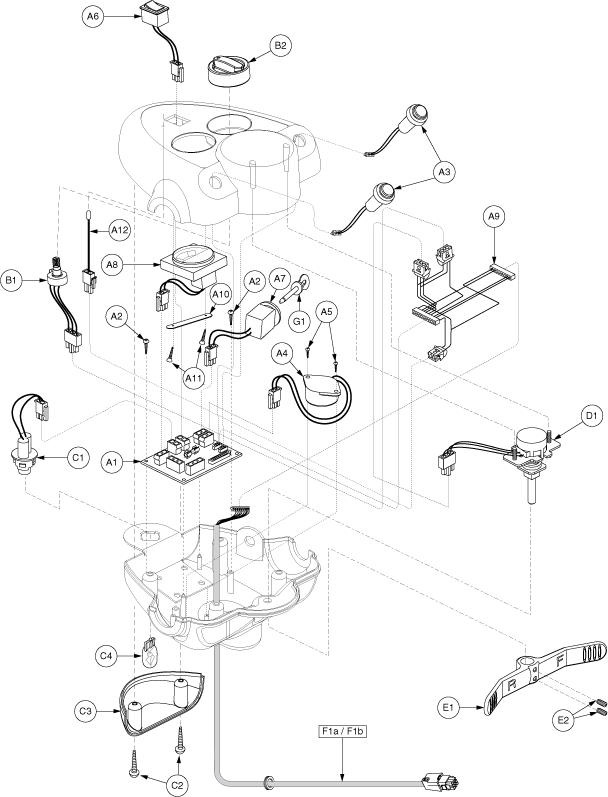

Pride Revo (SC63) - Console - S6811205001c30 - Prior


Pos.
MPN
Details
A1 - D1
ELEASMB3580

ELECTRONIC, ASSY, CONSOLE, SC63/64

---
A1
HARUSHD2334

ELECTRONIC, PCB BOARD, CONSOLE, REVO, H-9998-008

---
A3
HARUSHD2337

ELECTRONIC, HARNESS, MOMENTARY SWITCH, 6", 2 PIN, MOLEX CONNECTOR

---
A4
DWR9998H014

ELECTRONIC, HARNESS, HORN, REVO 2 PIN

---
A5
SCRPPH1096

SCREW, PPH, M2 X 5MM

---
A6
HARUSHD2333

ELECTRONIC, HARNESS, ROCKER SWITCH, 6", 2 PIN, MOLEX CONNECTOR

---
A7
HARUSHD2328

ELECTRONIC, HARNESS, PHONO JACK, 6", 2 PIN, MOLEX CONNECTOR

---
A8
HARUSHD2329

HARNESS, VOLT METER, 6", 2 PIN, MOLEX CONNECTOR

---
A9
DWR9995H010

ELECTRONIC, HARNESS, FRONT-TO-REAR, INTERMEDIATE, SC63/64, H-9995-010

---
A10
DWR9600A042

RETAINING CLIP, VOLTMETER, SC300/340/900/940, A-9600-042

---
A11
SCRPPSM1021

SCREW, PPH, BLACK, M3 X 5MM, SHEET METAL

---
A12
DWR9995H014

ELECTRONIC, HARNESS, STATUS LED, SC63/64, H-9995-014

---
A13
PLSTIE1001
View details
B1 - B2
ELEASMB2661

ELECTRONIC, ASSY, SPEED POT, W/ PLASTIC KNOB, REVO

---
B1
HARUSHD2330

ELECTRONIC, HARNESS, SPEED POT, 3 PIN/100K, MOLEX CONNECTOR, H-9998-004

---
B2
DWR9998B018

KNOB, PLASTIC, SPEED POT, REVO, B-9998-018

---
C1 - C4
ELEASMB2662

HEADLIGHT, ASSY, REVO

---
C1
HARUSHD2332

ELECTRONIC, HARNESS, HEADLIGHT/TAILLIGHT, 2 PIN 6", MOLEX CONNECTOR

---
C2
SCRPPH1094

SCREW, PPH, BLACK ZINC, M3 X 10MM, AB SELF THREADING

---
C3
DWR9998B016

HEADLIGHT, LENS, PLASTIC, REVO, B-9998-016

---
C4
LGTBULB1004

BULB, 24V, C5W

---
D1
ELEASMB2663

ELECTRONIC, ASSY, THROTTLE POT, REVO

---
E1 - E2
FRMASMB2821

STANDARD PARTS, ASSY, LEVER, THROTTLE CONTROL

---
E1
DWR9998B017

WIG WAG, REVO, B-9998-017

---
E2
SCRSETS1007

SCREW, SET, M4-.7 X 6MM

---
F1a
DWR9995H007

ELECTRONIC, HARNESS, FRONT-TO-REAR, SC63, H-9995-007

---
F1b
DWR9990H001

ELECTRONIC, HARNESS, FRONT-TO-REAR, SC64, H-9990-001

---
G1
KEYSCO1008

KEY, PHONO, GLOBAL FAB TECH, B-9995-033

---
