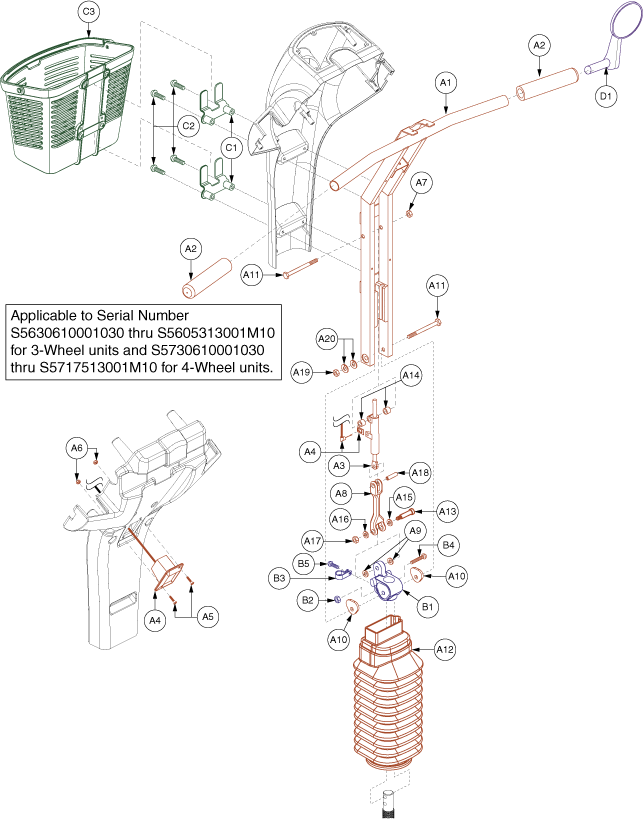

Pride Maxima (SC940) - Frames - Tiller - S5730610001030 - S5717513001m10


Pos.
MPN
Details
A1 - B5
FRMASMB4905

TILLER, ASSY, INFINITE ADJUSTMENT, MAXIMA, SC900/940

---
A1
DWR2010E008

TILLER, WELDMENT MAXIMA, E-2010-008

---
A2
PROHDLC1033

HAND GRIP, BLACK, FOAM, 5-9/16"L, SMOOTH

---
A3
INDPART2050
View details
A4
FRMASMB5071

Monster Scooter Parts

Tiller Adjustment Lever Assembly for Pride Maxima (SC900) (FRMASMB5071)

$98.99
View details
A5
SCRPFH1021

Pride Mobility

SCREW, PFH,BLACK ZINC,8-32 X 1/2" (SCRPFH1021)

$3.29
View details
A6
NUTNYLK1030

NUT, NYLOCK, ZINC, 8-32

---
A7
NUTNYLK1005

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

$1.69
View details
A8
DWR9935C029

TILLER, PIVOT BAR, SC3000/3400, C-9935-029

---
A9
SPCNYLN1048

SPACER, NYLON, .341 ID X .744 OD X .066TH

---
A10
DWG9900A050

WASHER, TILLER BLOCK, .344"ID X .125 THICK, IRREGULAR SHAPE, A-9900-005

---
A11
SCRHHCS1187

Pride Mobility

SCREW,HHCS,BLACK ZINC,5/16-18 X 3.00",GRADE 8 (SCRHHCS1187)

$3.29
View details
A12
DWR9600E020

TILLER, BOOT, RUBBER, BLACK, 9 RING, RECTANGULAR TOP

---
A13
BLTASHL1091

Pride Mobility

SHOULDER BOLT, M8, 30MM, C1005-001 (BLTASHL1091)

$5.49 $5.97
View details
A14
DWR2010A013

SPACER, .354" ID X .709" OD X .335" THK, TILLER

---
A15
WASSTND1091

WASHER, FLAT, M8

---
A16
WASSTND1080

WASHER, FLAT, M6, STANDARD

---
A17
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
A18
DWR9935A015

TILLER, PIN, PIVOT, SC3000/3400, A-9935-015

---
A19
NUTNJAM1000

NUT, NYLOCK, 5/16-18, JAM

---
A20
WASLOCK1001

WASHER, LOCK, 5/16"ID X 7/16"OD X 1/16"T

---
B1 - B5
FRMASMB2588

TILLER, ASSY, INFINITE ADJUSTMENT TILLER BLOCK

---
B1
DWR9900C028

TILLER, BLOCK, PIVOT, BRONZE, W/BORED TILLER STOPS, C-9900-028

---
B2
NUTNYLK1003

NUT, NYLOCK, ZINC, 1/4-20

---
B3
CLPCBLC1013

Pride Mobility

CABLE CLAMP,STEEL,3/4"D,RUBBER COATED (CLPCBLC1013)

$3.29
View details
B4
SCRASBH1005

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 1.25, ASTM F835, BZ (SCRASBH1005)

$3.29
View details
B5
SCRASBH1157

SCREW, BHSCS, BLACK ZINC, 1/4-20 X 0.375", W/NYLON PATCH

---
C1 - C3
ACCASMB2605

BASKET, ASSY, FRONT, MAXIMA-V

---
C1
DWR9600B034

BRKT, BASKET, WELDMENT, LEG 2000, POWDER COAT

---
C2
SCRPPTC1018

Monster Scooter Parts

8-32x2" Black Pan Head Self-Tapping Machine Screw (SCRPPTC1018)

$3.29
View details
C3
DWR9565E048
D1
ACC134496

Pride Mobility

Rear View Bar End Mirror for Pride Scooters (ACC134496)

$43.99
View details
