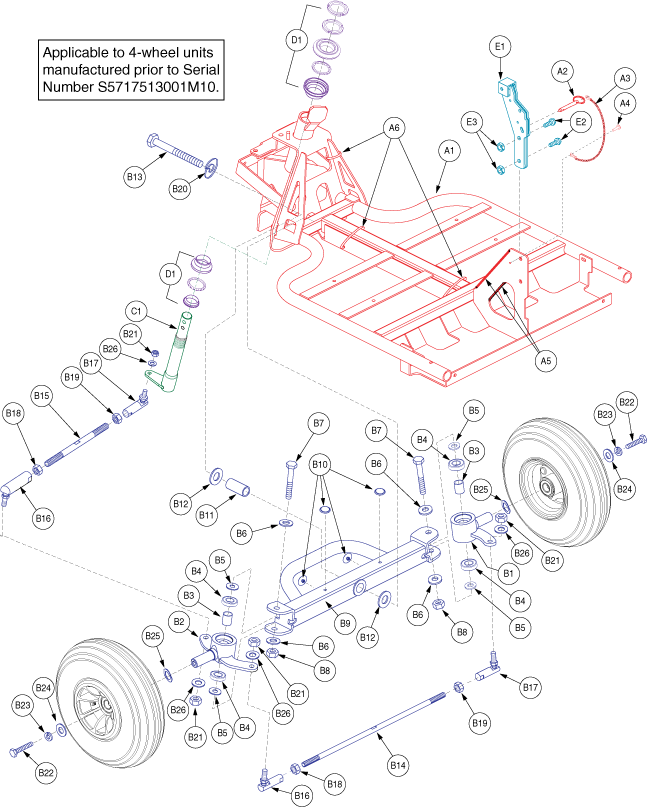

FRAME, ASSY, FRONT, W/LOCKUP, SC940
FRAME, FRONT, SC940, E-2020-007
Pride Mobility
PIN, COTTERLESS DETENT W/RING,1/4" X 3/4" LONG (PINCOTD1009)
LANYARD, SS BALL CHAIN, #10X4.5"
RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G
TRIM, MOLDING, BLACK, 8", DOOR EGDE, PLASTIC
AXLE, ASSY, FRONT, SC940
FRAME, WELDMENT, SPINDLE, RIGHT, SC940, C-2020-012
FRAME, WELDMENT, SPINDLE, LEFT, SC940, C-2020-013
SPACER, SPINDLE BEARING, SC940, A-2020-004
BEARING, BALL, 12MM ID X 28MM OD X 8MM THK, (6001Z)
WASHER, NYLON, M12 X 22MM OD X 3MM TH
WASHER, FLAT, ZINC, 12MM ID X 26MM OD X 2MM TH
SCREW, HHCS, M12-1.75 X 70MM, G8.8
Monster Scooter Parts
AXLE, WELDMENT, AXLE, SC940, E-2020-005
BEARING, CAP, SC3400, B-9940-010
AXLE, SPACER, FRONT AXLE, SC940, A-2020-003
Pride Mobility
WASHER, NYLON, .805 ID X 1.25 OD X .031 THK, AXLE, SC940 (SEE DRAWING) (DWR2020A005)
SCREW, HHCS, ZINC, 5/8-18 X 3", GRADE 8
TIE ROD, MAIN, SC940, C-2020-007
TIE ROD, SHORT, SC940, C-2020-005
WASHER, LOCK, ZINC, .625"ID X 1.05"OD X .175"THK
NUT, NYLOCK, BLACK ZINC, M8-1.25
WASHER, LOCK, ZINC, 5/16"ID X 9/16"OD X 1/16"TH
Pride Mobility
WASHER, FLAT, 8.4 ID X 16 OD X 1.6 THK, ISO 7089-8-200 HV, BZ (USE HDW138262) (WASMETR1010)
FRONT STEM, ASSY, SC940
FRAME, STEERING STEM, WELDMENT, SC940, C-2020-014
Monster Scooter Parts
Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)
WELDMENT, ASSY, REAR DOCKING, SC4450
DOCKING DEVICE, RECEIVER WELDMENT, THREE POINT LOCKUP
Pride Mobility
SCREW,HHCS,BLACK ZINC,5/16-18 X 0.75",GRADE 8 (SCRHHCS1156)
NUT, NYLOCK, 5/16-18, JAM
