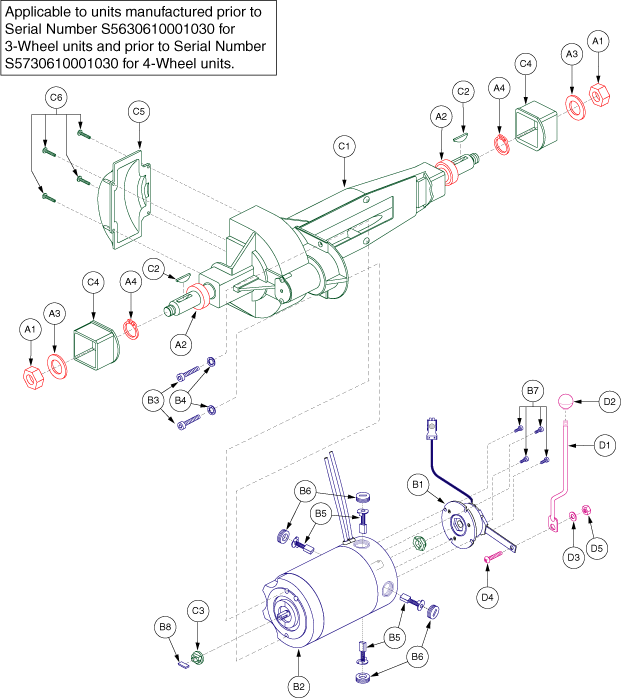

MOTOR, ASSY, TRANSAXLE/MOTOR/BRAKE, ASI TRANSAXLE HEAVY-DUTY (MK25-18.0:1), LONG SHAFT
Monster Scooter Parts
1/2-20 Zinc-Plated Jam Lock Nut (NUTNJAM1018)
SPACER, STEEL, 19.1MM ID X 32MM OD X 12.7MM TH, ZINC
MOTOR, MOTOR/BRAKE ASSY, 4 PIN, ASI TRANSAXLE (MK29A-18)LONG SHAFT
MOTOR, ASSY, BRAKE, 24V, MOTOR (10175-1), 3870 RPM, WARNER BRAKE 6NM, (WR213A82P1)
Monster Scooter Parts
Brake Assembly for Pride Maxima (SC900/SC940) and Pride Victory XL (SC2700) (DRV1030)
MOTOR, ASI MOTOR, 24V, 3870 RPM, (10175-1)
Pride Mobility
SCREW, SOCKET HEAD, M6X1.0 X 20, ISO 4762, CL 12.9, BZ (SCRSHCS1048)
WASHER, LOCK, M6, INTERNAL TOOTH
MOTOR, BRUSH, ASI, MK29
MOTOR, BRUSH, CAP, ASI
Pride Mobility
SCREW, SOCKET HEAD, M4X0.7 X 12, ISO 4762, CL 12.9, BZ (SCRSHCS1092)
KEY, 0.375" X 0.672" X 0.109", SHAFT COUPLER
TRANSAXLE, ASSY, ASI, HEAVY DUTY LONG SHAFT, (MK29A-18)
TRANSAXLE, HEAVY DUTY LONG SHAFT, ASI (MK29A-18)
Monster Scooter Parts
Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)
SHAFT COUPLER, ASI
TRANSAXLE, MOUNTING PAD, RUBBER, BLACK, B-1020-033
TRANSAXLE, GEAR, COVER, SC160/170
SCREW, TORX, BLACK, BLACK OXIDE, M5-.8 X 15MM
FREEWHEEL, ASSY, RELEASE LEVER, ANGLED, MAXIMA, SC900/940
FREEWHEEL, WELDMENT, LEVER, MAXIMA, SC900/940, B-2010-016
KNOB, BLACK, M6 X 1.0T, THREADED, SPHERICAL
SPACER, BLACK, NYLON, 0.313" ID X 0.655" OD X 0.3125" THK
SCREW, PTH, 1/4-20 X 1 1/4", G5
NUT, NYLOCK, ZINC, 1/4-20, THIN
