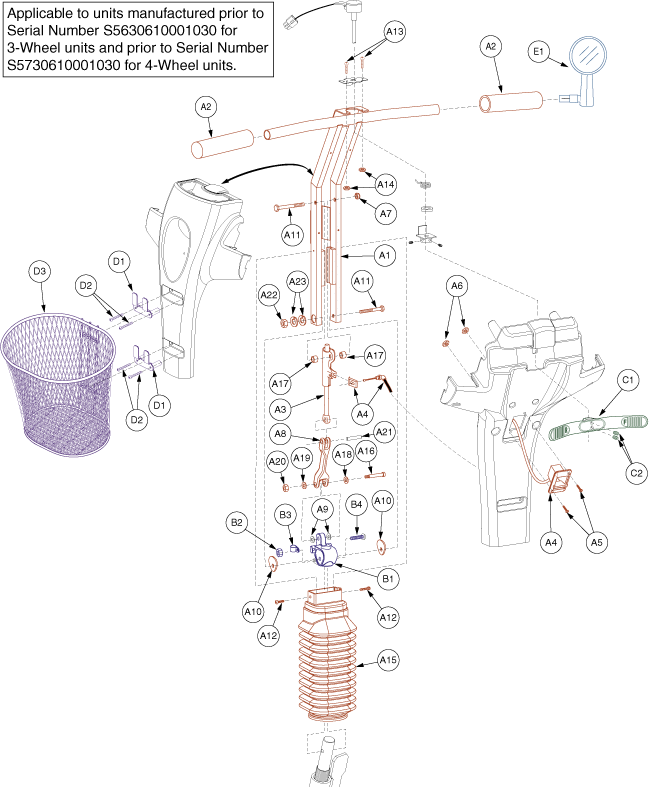

TILLER, ASSY, INFINITE ADJUSTMENT, MAXIMA, SC900/940
TILLER, WELDMENT MAXIMA, E-2010-008
HAND GRIP, BLACK, FOAM, 5-9/16"L, SMOOTH
Monster Scooter Parts
Tiller Actuator for the Pride Celebrity XL, Hurricane, Legend, Legend XL, and Maxima (INDPART2050)
Monster Scooter Parts
Tiller Adjustment Lever Assembly for Pride Maxima (SC900) (FRMASMB5071)
NUT, NYLOCK, ZINC, 8-32
TILLER, PIVOT BAR, SC3000/3400, C-9935-029
SPACER, NYLON, .341 ID X .744 OD X .066TH
WASHER, TILLER BLOCK, .344"ID X .125 THICK, IRREGULAR SHAPE, A-9900-005
Pride Mobility
SCREW,HHCS,BLACK ZINC,5/16-18 X 3.00",GRADE 8 (SCRHHCS1187)
TILLER, PIN, PIVOT, SC3000/3400, A-9935-015
WASHER, LOCK, 5/16"ID X 7/16"OD X 1/16"T
NUT, NYLOCK, 5/16-18, JAM
TILLER, BOOT, RUBBER, BLACK, 9 RING, RECTANGULAR TOP
Pride Mobility
SHOULDER BOLT, M8, 30MM, C1005-001 (BLTASHL1091)
SPACER, .354" ID X .709" OD X .335" THK, TILLER
WASHER, FLAT, M8
WASHER, FLAT, M6, STANDARD
NUT, NYLOCK, ZINC, M6-1.0
TILLER, ASSY, INFINITE ADJUSTMENT TILLER BLOCK
TILLER, BLOCK, PIVOT, BRONZE, W/BORED TILLER STOPS, C-9900-028
NUT, NYLOCK, ZINC, 1/4-20
Pride Mobility
SCREW, BUTTON HEAD, .250-20 X 1.25, ASTM F835, BZ (SCRASBH1005)
SCREW, BHSCS, BLACK ZINC, 1/4-20 X 0.375", W/NYLON PATCH
LEVER, ASSY, THROTTLE CONTROL, 7", SOFT-GRIP PLASTIC
LEVER, THROTTLE CONTROL, BLACK, PLASTIC, WITH MOLDED THUMB PADS, LEGEND, SC3000/SC3400, D-9940-008
SCREW, SET, M4-.7 X 6MM
BASKET, ASSY, TILLER, LEGEND 2000, PE COATED
BRKT, BASKET, WELDMENT, LEG 2000, POWDER COAT
Monster Scooter Parts
8-32x2" Black Pan Head Self-Tapping Machine Screw (SCRPPTC1018)
BASKET, OVAL, TILLER, 10 1/4" L X 14" W X 9" L, ANGLED FRONT (E-1000-113)
Pride Mobility
Rear View Bar End Mirror for Pride Scooters (ACC134496)
