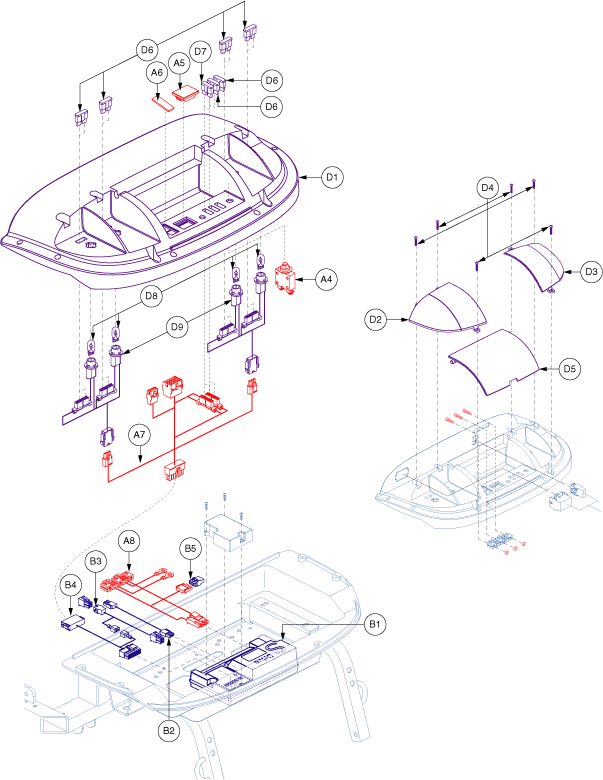

Pride Maxima (SC940) - Controller - S5717513001m10 - Subsequent - Wiring


Pos.
MPN
Details
A1 - D9
ELE134501

ELECTRONIC, ASSY, MODULE, REAR, MAXIMA

---
A1
SCRHHCS1466

SCREW, HHCS, ZINC, M6-1.0 X 45MM, GRADE 12.9

---
A2
NUTKEPS1003

NUT, KEPS, ZINC, M6-1.0

---
A3
SCRPPH1164

Monster Scooter Parts

M4x15mm Black Zinc Screw for Pride & Go-Go Battery Boxes (SCRPPH1164)

$3.29
View details
A4
ELEASMB1000

ELECTRONIC,ASSY,CIRCUIT BREAKER,50 AMP,COMPLETE,RIGHT ANGLE TERMINALS,PUSH TO RESET

---
A5
DGN134586

COVER, CHARGER, HOLE, PLASTIC, SNAP-IN

---
A6
DGN134587

PLUG, PLASTIC, SNAP-IN, AMMETER PLUG ADAPTER

---
A7
ELE134588

Pride Mobility

ELECTRONIC,HARNESS,CONTROLLER INTERFACE,MAXIMA (ELE134588)

$164.99 $198.59
View details
A8
ELE134589

Pride Mobility

ELECTRONIC,HARNESS,BATTERY/BREAKER,MAXIMA (ELE134589)

$181.49
View details
A9
SCRPPH1072

SCREW, PPH, BLACK ZINC, 8-32 X 1.00"

---
A10
NUTNYLK1030

NUT, NYLOCK, ZINC, 8-32

---
A11
VELLOOP1007

Pride Mobility

REUSABLE FASTENER,LOOP,2" X 1",W/ADHESIVE BACK (VELLOOP1007)

$3.29
View details
B1 - B5
ELE134502

ELECTRONIC, ASSY, CONTROLLER, S-DRIVE, MKII, 120 AMP, MAXIMA

---
B1
CTL131569

Monster Scooter Parts

120 Amp S-Drive Controller for the Pride Maxima (SC900/SC940) (CTL131569)

$329.99
View details
B2
ELE134508

ELECTRONIC, HARNESS, BRAKE, FOR 120/140 AMP S-DRIVE

---
B3
ELE134509

ELECTRONIC, HARNESS, CONTROLLER PROGRAMMING, MAXIMA

---
B4
ELE134510

Pride Mobility

ELECTRONIC,HARNESS,S-DRIVE,INTERMEDIATE CABLE,MAXIMA (ELE134510)

$25.29
View details
B5
ELE134511

ELECTRONIC, HARNESS, 3-PIN, RUN PLUG, MALE, S-DRIVE, MAXIMA

---
C1 - C4
ELE134503

Pride Mobility

ELECTRONIC,ASSY,BASEPLATE,REAR ELECTRONICS MODULE,MAXIMA (ELE134503)

$118.79 $132.13
View details
D1 - D9
PLSASMB2167

Pride Mobility

COVER,ASSY,PLASTIC,REAR ELECTRONICS MODULE,S900V (PLSASMB2167)

$307.99 $413.10
View details
D1
DWR9700E006

ELECTRONIC, COVER, PLASTIC, REAR ELECTRONICS MODULE, CELEBRITY 2000, E-9700-006

---
D2
DWR9700C013
View details
D3
DWR9700C014
View details
D4
SCRPPTC1027

SCREW, PPH, #8 X 1/2", THREAD CUTTING, TYPE 25

---
D5
DWR9700D006
D6
ELEFUSE1009

Monster Scooter Parts

3 Amp ATO Blade Fuse (ELEFUSE1009)

$1.50 $1.99
View details
D7
ELEFUSE1010

Pride Mobility

ELECTRONIC,FUSE,7.5 AMP,ATO (AUTOMOTIVE TYPE),(LITTELFUSE: 25707.5) (ELEFUSE1010)

$19.79 $20.00
View details
D8
LGTBULB1001

Monster Scooter Parts

28 Volt Plug-In Headlight Bulb for Pride Scooters (LGTBULB1004)

$2.99
View details
D9
DWR2010H011

Pride Mobility

ELECTRONIC,HARNESS,REAR LIGHTS,MAXIMA-V,H-2010-011 (DWR2010H011)

$17.59 $17.69
View details
