Pride Maxima (SC940) - Controller - S5730610001030 - S5717513001m10 - Wiring
Parts Diagrams

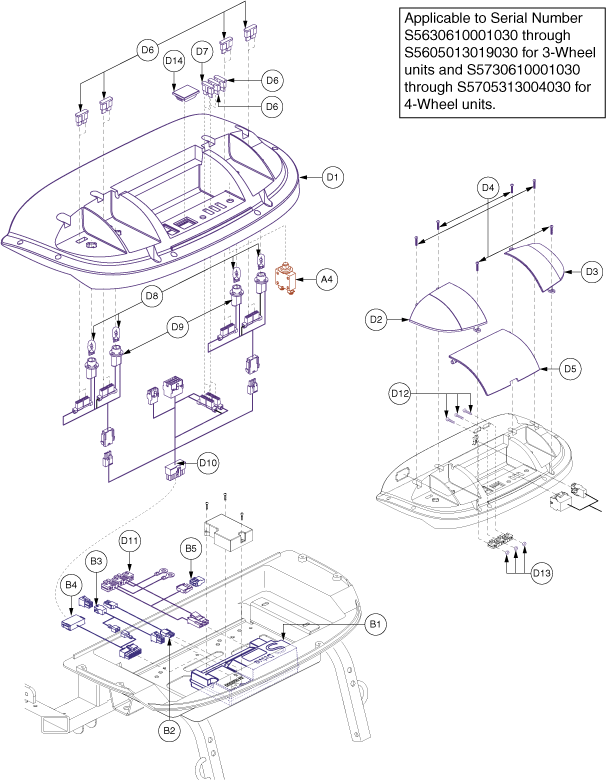

Pride Maxima (SC940) - Controller - S5730610001030 - S5717513001m10 - Wiring Click to enlarge
Pos.
MPN
Details
A1 - D14
ELEASMB7133

ELECTRONIC, ASSY, MODULE, REAR, MAXIMA-V

---
A1
SCRHHCS1027
Close-up of a 1/4-20x1.75 Hex Head Bolt (SCRHHCS1027), grade 5, zinc-plated, showing its hexagonal head and threaded body, suitable for various applications like basket brackets and seat levers.

Monster Scooter Parts

1/4-20x1.75" Hex Head Bolt (SCRHHCS1027)

$0.24 $0.79
View details
A2
NUTKEPS1000

NUT, KEPS, 1/4-20 [K-LOCK]

---
A3
SCRPPTC1019

SCREW, PPH, #8 X 1/2", THREAD CUTTING

---
A4
ELEASMB1000

ELECTRONIC,ASSY,CIRCUIT BREAKER,50 AMP,COMPLETE,RIGHT ANGLE TERMINALS,PUSH TO RESET

---
A5
WASETH1001

Pride Mobility

WASHER, EXTERNAL TOOTH,1/4ID (WASETH1001)

$3.29
View details
B1 - B5
ELEASMB7182

ELECTRONIC, ASSY, CONTROLLER, S-DRIVE, 120 AMP, S900V

---
B1
ELEASMB6994

CONTROLLER, S-DRIVE, ASSY, 120 AMP, 5.25 MPH PROGRAM, SC900V

---
B2
DWR9660H086
Brake Harness for the Pride Maxima (SC900/SC940), Pursuit (SC713), Pursuit 2 (S7132), & Pursuit Sport (MV714) with S-Drive Controllers; close-up of a 2-wire cable with white connectors.

Pride Mobility

Brake Harness for the Pride Maxima (SC900/SC940), Pursuit (SC713), Pursuit 2 (S7132), & Pursuit Sport (MV714) with S-Drive Controllers (DWR9660H086)

$15.39
View details
B3
DWR9966H034

Pride Mobility

ELECTRONIC,HARNESS,CONTROLLER PROGRAMMING,H-9966-034 (DWR9966H034)

$35.19
View details
B4
DWR2010H015

ELECTRONIC, HARNESS, S-DRIVE, INTERMEDIATE CABLE

---
B5
DWR2010H014

ELECTRONIC, HARNESS, 3-PIN, RUN PLUG, MALE, S-DRIVE

---
C1 - C4
ELEASMB3141

ELECTRONIC, ASSY, BASEPLATE, REAR ELECTRONICS MODULE

---
D1 - D14
PLSASMB2167

Pride Mobility

COVER,ASSY,PLASTIC,REAR ELECTRONICS MODULE,S900V (PLSASMB2167)

$307.99 $413.10
View details
D1
DWR9700E006

ELECTRONIC, COVER, PLASTIC, REAR ELECTRONICS MODULE, CELEBRITY 2000, E-9700-006

---
D2
DWR9700C013
Red/Amber Rear Lens Cover for the Pride Hurricane (PMV500), Maxima (SC900/SC940), and Celebrity 2000 (SC4000/SC4400) mobility scooters, showing a detailed close-up of red and yellow tail lights.

Monster Scooter Parts

Red/Amber Rear Lens Cover for the Pride Hurricane (PMV500), Maxima (SC900/SC940), and Celebrity 2000 (SC4000/SC4400)

$13.99
View details
D3
DWR9700C014
Red/Amber Rear Lens Cover for the Pride Hurricane (PMV500), Maxima (SC900/SC940), and Celebrity 2000 (SC4000/SC4400) mobility scooters, showing a detailed close-up of red and yellow tail lights.

Monster Scooter Parts

Red/Amber Rear Lens Cover for the Pride Hurricane (PMV500), Maxima (SC900/SC940), and Celebrity 2000 (SC4000/SC4400)

$13.99
View details
D4
SCRPPTC1027

SCREW, PPH, #8 X 1/2", THREAD CUTTING, TYPE 25

---
D5
DWR9700D006
Smoke Gray Flip-Up Lid for the Pride Celebrity 2000, Cyclone, Hurricane, and Maxima mobility scooters featuring a black handle.

Monster Scooter Parts

Smoke Gray Flip-Up Lid for the Pride Celebrity 2000 (SC4000/SC4400), Cyclone (SPSC4000/SPSC4400), Hurricane (PMV500), and Maxima (SC900) (DWR9700D006)

$15.99
View details
D6
ELEFUSE1009
3 Amp ATO Blade Fuse close-up, showcasing its compact design and pronged ends, suitable for Go-Go and Pride Mobility scooters like Elite Traveller and Boxter.

Monster Scooter Parts

3 Amp ATO Blade Fuse (ELEFUSE1009)

$1.50 $1.99
View details
D7
ELEFUSE1010

Pride Mobility

ELECTRONIC,FUSE,7.5 AMP,ATO (AUTOMOTIVE TYPE),(LITTELFUSE: 25707.5) (ELEFUSE1010)

$19.79 $20.00
View details
D8
LGTBULB1001
28 Volt Plug-In Headlight Bulb for Pride Scooters, shown as a clear light bulb with black wire, suitable for upper and lower headlights, and direction lights.

Monster Scooter Parts

28 Volt Plug-In Headlight Bulb for Pride Scooters (LGTBULB1004)

$2.99
View details
D9
DWR2010H011

Pride Mobility

ELECTRONIC,HARNESS,REAR LIGHTS,MAXIMA-V,H-2010-011 (DWR2010H011)

$17.59 $17.69
View details
D10
DWR2010H013

ELECTRONIC, HARNESS, CONTROLLER INTERFACE

---
D11
DWR2010H008

ELECTRONIC, HARNESS, BATTERY/BREAKER, MAXIMA-V, H-2010-008

---
D12
SCRPPH1072

SCREW, PPH, BLACK ZINC, 8-32 X 1.00"

---
D13
NUTNYLK1030

NUT, NYLOCK, ZINC, 8-32

---
D14
DWR9935B037

COVER, CHARGER, HOLE, PLASTIC, SC3000/3400INT, B-9935-037

---
