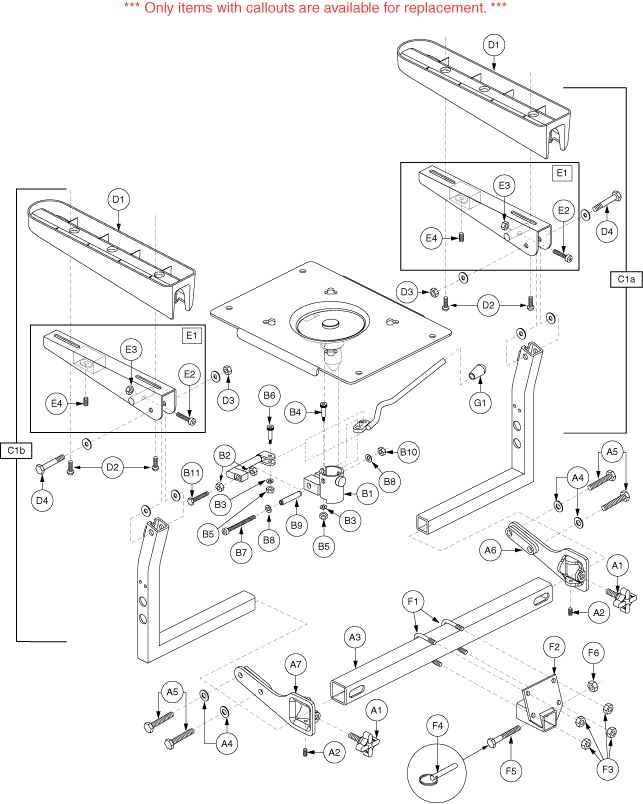

Pride Legend (SC3000) - Seat Frame - Pinchless Hinge - 16 Wide


Pos.
MPN
Details
A1
DWR1000B152
View details
A2
SCRSETS1013

Pride Mobility

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO (SCRSETS1013)

$3.29
View details
A3
DWR1200C122C

Monster Scooter Parts

17" Seat Cross Bar for Pride Scooters & Jazzy Power Chairs (DWR1200C122C)

$30.79
View details
A4
WASSTND1002
View details
A5
SCRHHCS1207

Pride Mobility

SCREW, HEX HEAD, .3125-24 X 1.0, SAE J429, GR 5, BZ (SCRHHCS1207)

$3.29
View details
A6
DWR1010D213
View details
A7
DWR1010D214
B1
DWR1107C048

SEAT COLLAR CASTING, FRICTION LOCK

---
B3
WASSAE1005
View details
B4
BLTASHL1062

Pride Mobility

BOLT,SHOULDER,1/4" X 0.75" (BLTASHL1062)

$3.29
View details
B5
NUTNYLK1040

Pride Mobility

NUT, HEX, LOCK, 10 (.190)-24, IFI-100/107, STL, BZ, PVTP (NUTNYLK1040)

$3.29
View details
B6
BLTASHL1022

BOLT, SHOULDER, 1/4"X 5/8"

---
B7
SCRSHCS1100

SCREW, SHCS, BLACK ZINC, M5-.8 X 60MM, GRADE 10.9

---
B8
WASSTND1039
B9
PINSPRG1012

SPRING PIN, 0.375" DIA X 2.00" L

---
B10
NUTNYLK1042

Pride Mobility

NUT,NYLOCK,ZINC,M5-.8 (NUTNYLK1042)

$3.29
View details
B11
SCRHHCS1033

SCREW, HHCS, ZINC, 5/16-18 X 2.00", GRADE 5

---
C1a
FRMASMB3889

ARMREST, ASSY, FLIP-UP, W/COSMETIC COVER, FULL LENGTH, RIGHT

---
C1b
FRMASMB3888

ARMREST, ASSY, FLIP-UP, W/COSMETIC COVER, FULL LENGTH, LEFT

---
D1
DWG1200D560
View details
D2
SCRASBH1014

Pride Mobility

SCREW, BUTTON HEAD, .250-20 X 0.750, ASTM F835, BZ (SCRASBH1014)

$3.29
View details
D3
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
D4
SCRHHCS1028

SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5

---
E1
FRMASMB4456

ARMREST, ASSY, BRACKET, FULL LENGTH, JAZZY, C-1200-187

---
E2
SCRSHCS1011

SCREW, SHCS, 5/16-18 X 1 3/4"

---
E3
NUTJAM1010

NUT, JAM, BLACK ZINC, 5/16-18

---
E4
SCRSETS1011

SCREW, SET, ELMR, 3/8-24 X 3/8"

---
F1 - F6
FRMASMB1504
F1
IND1013A000
View details
F2
IND1237C000

Monster Scooter Parts

Rear Mounting Bracket for the Quantum Q6 Edge (IND1237C000)

$47.29
View details
F3
NUTNYLK1014

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

$3.29
View details
F4
PINCLEV1005

Pride Mobility

CLEVIS PIN,ZINC PLATED,3/8" X 2" (PINCLEV1005)

$7.69
View details
F5
SCRHHCS1072

Pride Mobility

SCREW, HEX HEAD, .375-24 X 1.75, PT, SAE J429, GR 5, BZ (SCRHHCS1072)

$3.29
View details
F6
NUTNYLK1035

Pride Mobility

NUT, LOCK, .375-24, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1035)

$3.29
View details
G1
PROHDLC1003

Monster Scooter Parts

Freewheel Handle/Brake Release Cover for Jazzy 1170 XL (PROHDLC1003)

$4.39
View details
