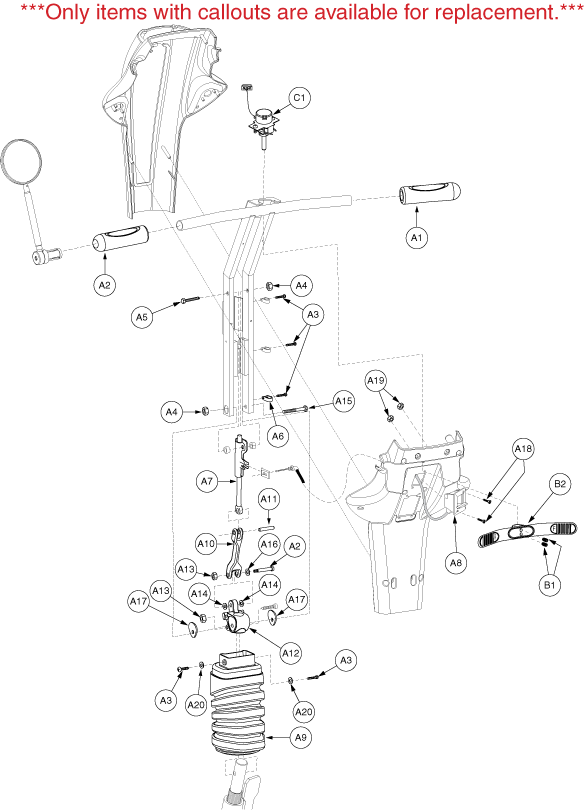

Pride Legend (SC3000) - Frame - Tiller - S5411404001c30 - S5422907001c30


Pos.
MPN
Details
A1
DWR9905C015

Monster Scooter Parts

Hand Grip for Go-Go, Mega Motion, and Pride Mobility Scooters (DWR9905C015)

$7.99
View details
A2
DWR9935C043

GRIP, HAND, BLACK, FOAM, MIRROR MOUNT

---
A3
SCRPPSM1019

SCREW, PPH, BLACK, M4 X 12MM, SHEET METAL

---
A4
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
A5
SCRHHCS1177

SCREW, HHCS, BLACK ZINC, M8-1.25 X 60MM, GRADE 8.8

---
A6
CLPCBLC1017

Pride Mobility

CABLE CLAMP,BLACK,9/16"D (CLPCBLC1017)

$3.29
View details
A7
INDPART2050
View details
A8
FRMASMB2196

LEVER, ASSY, TILLER, INFINITE ADJUSTMENT, W/11" CABLE & SPRING CLIP

---
A9
PROBOOT1014

TILLER, BOOT, SC3000/3400

---
A10
DWR9935C029

TILLER, PIVOT BAR, SC3000/3400, C-9935-029

---
A11
DWR9935A015

TILLER, PIN, PIVOT, SC3000/3400, A-9935-015

---
A12
BLTASHL1091

Pride Mobility

SHOULDER BOLT, M8, 30MM, C1005-001 (BLTASHL1091)

$5.49 $5.97
View details
A13
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
A14
SPCNYLN1048

SPACER, NYLON, .341 ID X .744 OD X .066TH

---
A15
SCRHHCS1179

SCREW, HHCS, BLACK ZINC, M8-1.25 X 75MM, GRADE 8.8

---
A16
WASMETR1009

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.2MM TH

---
A17
DWG9900A050

WASHER, TILLER BLOCK, .344"ID X .125 THICK, IRREGULAR SHAPE, A-9900-005

---
A18
SCRPFH1056

SCREW, PFH, BLACK ZINC, M4-.7 X 12MM

---
A19
NUTNYLK1065

Pride Mobility

NUT, LOCK, M4X0.7, ISO 10511, CL 04, BZ, PVTP (NUTNYLK1065)

$3.29
View details
A20
WASSTND1105

WASHER, FLAT, BLACK ZINC, M4

---
B1 - B2
FRMASMB2252

LEVER, ASSY, THROTTLE CONTROL, 7", SOFT-GRIP PLASTIC

---
B1
SCRSETS1025

SCREW, SET, 8-32 X 1/4"

---
B2
DWR9940D008

LEVER, THROTTLE CONTROL, BLACK, PLASTIC, WITH MOLDED THUMB PADS, LEGEND, SC3000/SC3400, D-9940-008

---
C1
ELEASMB4060

ELECTRONIC, ASSY, THROTTLE POT, 5K, W/ISO TEST RESISTOR, VERSION 2, SC3450

---
