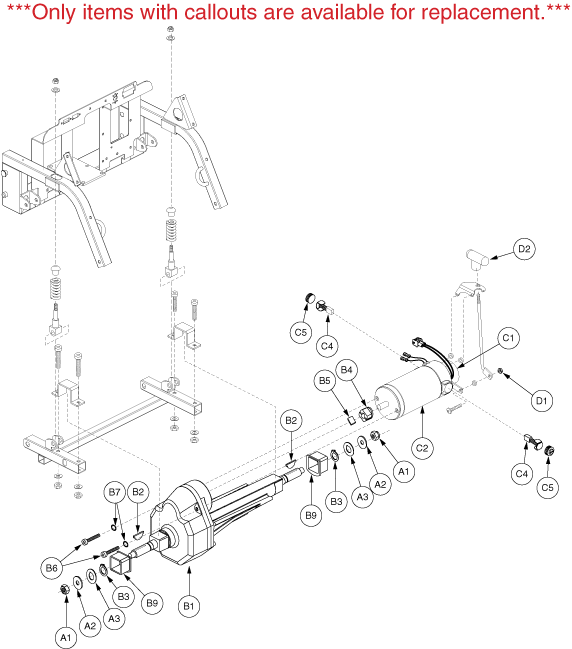

Pride Legend (SC3000) - Drive System


Pos.
MPN
Details
A1
NUTNJAM1012

Monster Scooter Parts

1/2-20 Zinc-Plated Jam Lock Nut (NUTNJAM1018)

$1.56 $2.95
View details
A2
WASSTND1051

Monster Scooter Parts

1/2"x1-1/16" Flat Washer (WASSTND1051)

$0.87 $1.47
View details
A3
WASSTND1020

WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY

---
B1 - B9
DRVASMB1457

TRANSAXLE, ASSY, STD LINK SHAFT, W/HARDWARE, CCL, (CM80T-M05)

---
B1
DRVTAXL1016

TRANSAXLE, STD LINK SHAFT, 20.5" SHAFT, 19.75:1 GEAR RATIO, CCL, (CM80T-008)

---
B2
KEYSTL1003

Monster Scooter Parts

Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)

$6.99
View details
B3
RNGRTAN1002

Pride Mobility

RING, RETAINING,3/4" (RNGRTAN1002)

$3.29
View details
B4
INDPART2228

SHAFT, COUPLER, CCL, PM (802-T02)

---
B5
INDPART2229

KEY, 0.375" X 0.672" X 0.109", SHAFT COUPLER

---
B6
SCRSHCS1059

SCREW, SHCS, BLACK, 1/4-20 X 2.25"

---
B7
WASINTH1000

WASHER, SAE, 1/4"ID, INTERNAL TOOTH

---
B8
HDWINDV1049

O-RING, 5/16" OD X 3/16" ID X 1/16" TH, BLACK, RUBBER

---
B9
INDPART1025

TRANSAXLE, MOUNTING PAD, RUBBER, BLACK, B-1020-033

---
C1 - C5
DRVASMB1458

MOTOR, ASSY, BRAKE, CCL, (CM80B-005), H-9935-032

---
C1
DRVASMB1657

BRAKE,ASSY,WARNER,6NM,STANDARD LOGIC,(WR213A82P3)

---
C2
DRV1032

MOTOR, CCL, (CM808-028B)

---
C3
SCRSHCS1024

SCREW, SHCS, BLACK ZINC, 8-32 X 0.375"

---
C4
DRVBRSH1011

MOTOR, BRUSH, CCL, (CM808-028B)

---
C5
INDPART2275

MOTOR, BRUSH CAP, CCL, (CM808-028B)

---
D1
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
D2
PLSKNCP1034

KNOB, BLACK, M6 X 1.0T, THREADED, SPHERICAL

---
