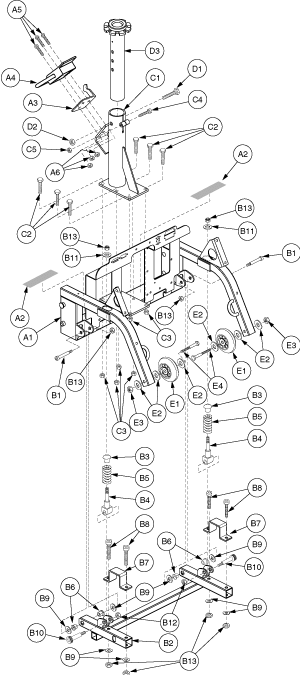

Pride Legend (SC3000) - Frame - Rear - Clover Lock


Pos.
MPN
Details
A1 - B13
FRMASMB5474

FRAME, ASSY, REAR, SPRING SUSPENSION, SC3000/3400

---
A1
DWR9935E044

FRAME, REAR, WELDMENT, SPRING SUSPENSION SC3000/3400, E-9935-044

---
A2
DWR9935A020

PAD, BLACK, RUBBER W/ADHESIVE, 5" X 2"

---
A3
DWR9905B034

LATCH, RETAINER, CATCH, SC50/3000, B-9905-034

---
A4
DWR9905B022

FRAME, MECHANISM, HOOK LOCK UP, SC50, SONIC, B-9905-022

---
A5
SCRPPH1146

SCREW, PPH, M4-.7 X 14 MM

---
A6
NUTNYLK1020

NUT, NYLOCK, ZINC, M4-.7

---
B1 - B13
FRMASMB5477

FRAME, ASSY, TRAIL ARM, SPRING SUSPENSION, SC3000/3400

---
B1
BLTASHL1103

BOLT, SHOULDER, ZINC, 10MM X 25MM

---
B2
DWR9935E043

SUSPENSION, SWING ARM WELDMENT, SPRING SUSPENSION, SC3000/3400, E-9935-043

---
B3
DWR9935B043

BALL PIVOT/SPRING ROD, ZINC, SC3000/3400, B-9935-043

---
B4
DWR9935B042

SUSPENSION, STRUT, BLACK POWDER COAT, M8-1.25 X 16MM L, REAR, SC3000/3400, B-9935-042

---
B5
DWR9935B047

SPRING, COMPRESSION, ZINC, 953 OD, WIRE DIA X RATE: 430 LB/IN, FREE LENGTH: 4, SC3000/3400, B-9935-047

---
B6
DWR9935A011

BUSHING, PIVOT, SC3000/3400, A-9935-011

---
B7
DWR9998A005

BRACKET, AXLE MOUNT, BLACK, POWDER COAT, REVO, A-9998-005

---
B8
SCRSHCS1066

SCREW, SHCS, BLACK ZINC, M8-1.25X40MM

---
B9
WASSTND1041

WASHER, FLAT, ZINC, 8MMID X 22MMOD X 2MMT

---
B10
BLTASHL1013

BOLT, SHOULDER, 8MM X 40MM, GRADE 5

---
B11
DWR9935A031

WASHER, POLYURETHANE, 8MM ID X 18MM OD X 2MM THK, A-9935-031

---
B13
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
C1 - C5
FRMASMB4445

SEAT POST, ASSY, BOLT ON, SC3000/3400

---
C1
DWR9935E006

SEAT POST, WELDMENT, SC3000/3400, E-9935-006

---
C2
SCRHHCS1088

SCREW, HHCS, M6-1.0 X 20MM, GRADE 10.9

---
C3
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
C4
SCRSHCS1043

SCREW, SHCS, BLACK ZINC, M6-1.0 X 35MM

---
C5
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
D1 - D3
FRMASMB5943

SEAT POST, ASSY, UPPER, 8 POSITION, 3 HOLE, W/STAINLESS BUSHING, W/NUT&BOLT, SC3450

---
D1
SCRHHCS1507

SCREW, HHCS, ZINC, M10-1.5 X 55MM, CLASS 10.9

---
D2
NUTNYLK1099

NUT, NYLOCK, ZINC, M10-1.5, CLASS 8

---
D3
DWR9660C015

SEAT POST, UPPER, 8 POSITION, 3 HOLE, W/STAINLESS BUSHING, C-9660-015

---
E1 - E4
WHLASMB1453
E1
WHLATIP1004
View details
E2
WASMETR1009

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.2MM TH

---
E3
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
E4
SCRHHCS1361

SCREW, HHCS, BLACK ZINC, M8-1.25 X 65MM, GRADE 10.9

---
