Unite Motor | SKU:
C80-8725

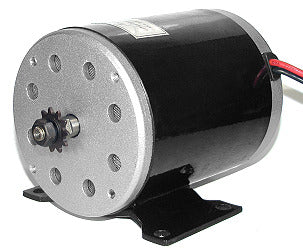

36 Volt 350 Watt MY1020 Electric Motor with 11 Tooth #25 Chain Sprocket
$69.75
$92.99
Unit price
/
Unavailable
36 Volt 350 Watt MY1020 Electric Motor with 11 Tooth #25 Chain Sprocket is backordered and will ship as soon as it is back in stock.
Free Shipping
Free Shipping
- US domestic ship to addresses only.
- Does not include expedited shipping services.
Key Features
- 11 tooth sprocket
- For #25 chain
- Includes bracket
- Left or right rotation by reversing wires
- MY1020 motor
- 2250 RPM
Description
Description
36 volt 350 watt MY1020 electric motor with an 11 tooth #25 chain sprocket and mounting bracket. This electric motor is compatible with many Minimoto branded pocket bikes, ATVs, and dirt bikes.
Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes).
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Note: Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes). These measurements do NOT line up with the Minimoto Maxii 400's original mounting holes. All customers will need to drill new holes in order to fit this motor.
⚠ WARNING California Residents: Proposition 65 Warning
Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes).
This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Note: Mounting hole spacing is approximately 4" x 2-1/4" (four threaded holes). These measurements do NOT line up with the Minimoto Maxii 400's original mounting holes. All customers will need to drill new holes in order to fit this motor.
⚠ WARNING California Residents: Proposition 65 Warning
Reviews (0)
Reviews (0)
Specifications
Specifications
Model: MY1020
Type: Brush
Voltage: 36 volt DC
Sprocket: 11 tooth #25 chain sproket
Output: 350 watts
Rated Speed: 2250 RPM
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Bolt Hole Distance (Adjacent): 4-1/8" (105 mm)
Bolt Hole Distance (Cross Bracket): 2-3/16" (56 mm)
