212cc 6.5 HP & 224cc HP Predator High Performance Air Filter Intake Kit (Missing Hardware)

Note: This item is missing some of the necessary hardware. This kit is missing one of the nuts, the black screw, and the mounting bracket.

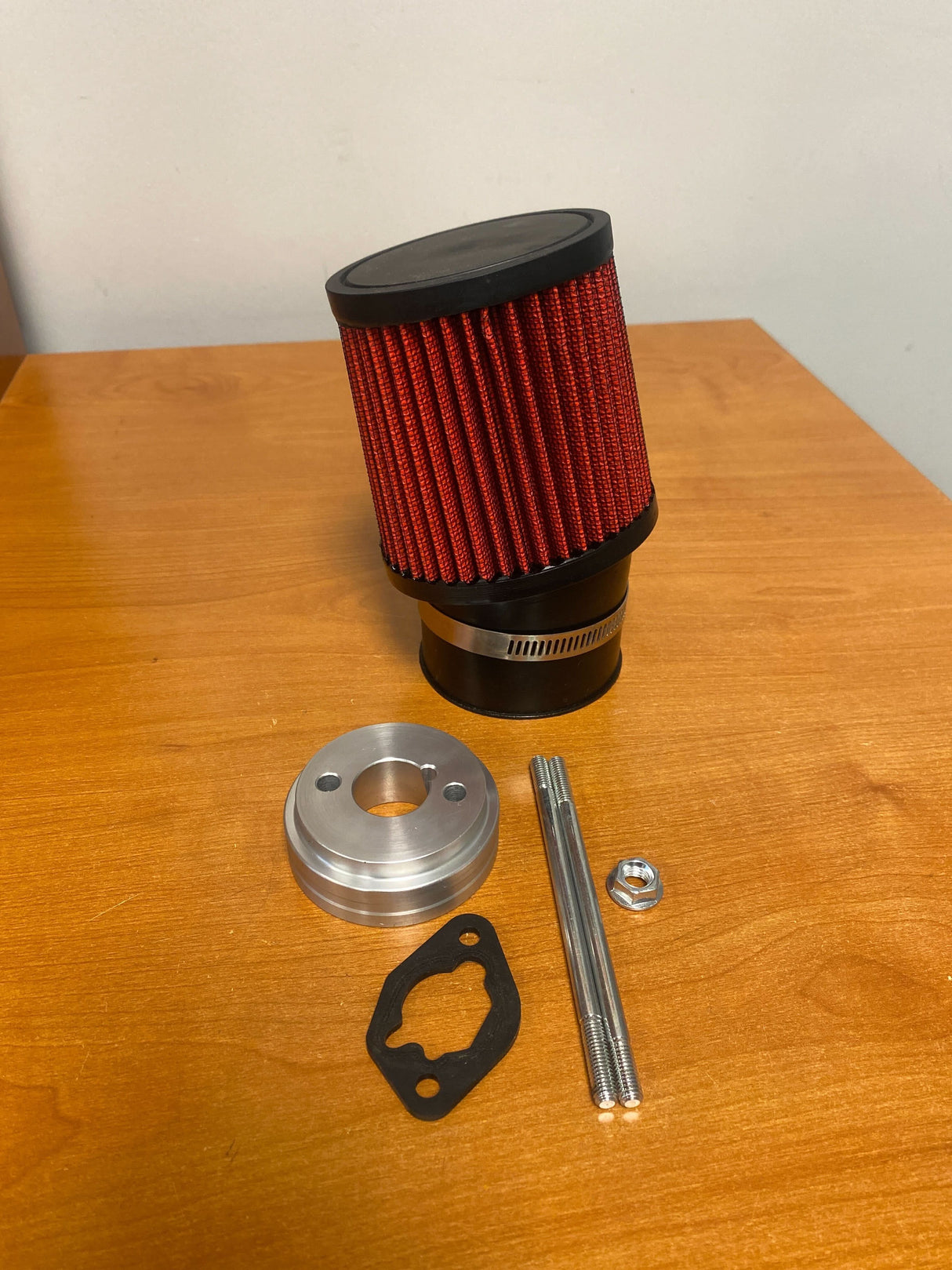

Upgrade your big engine with our 212cc 6.5 HP and 224cc 6.6 HP Predator high-performance air filter Intake kit for go-karts and mini bikes. It's a quick and easy job to upgrade your engine's air filter. Larger displacement gas powersports engines need larger volumes of clean dust-free air into the carburetor in order to produce the horsepower that you want when on the track or trail. This big filter does a superlative job in keeping the dust and crud out of your carb, resulting in better horsepower and smoother running. This kit includes the filter, stack, gasket, filter-to-carburetor mounting stud, adapter, bracket, hose clamp, and hardware.

Note: This filter assembly includes a stack. This is the large machined alloy ring with a beveled inside diameter that fits into the rubber base of the filter. When mounting this filter assembly, always make sure that the wider end of the hole is inside of the filter and the smaller or narrower end of the hole is on the carburetor side. When properly mounted, the stack functions as a venturi, smoothing the air flow into the carburetor and likewise smoothing the engine's running.

Overall Diameter at Widest Point: 95 mm
Overall Diameter at Top: 85 mm
Rubber Intake Inner Diameter: 60 mm
Rubber Intake Outer Diameter: 74 mm
Overall Height: 160 mm
