Pos.

MPN

Details

A1

FRMASMB8469

Pride Mobility

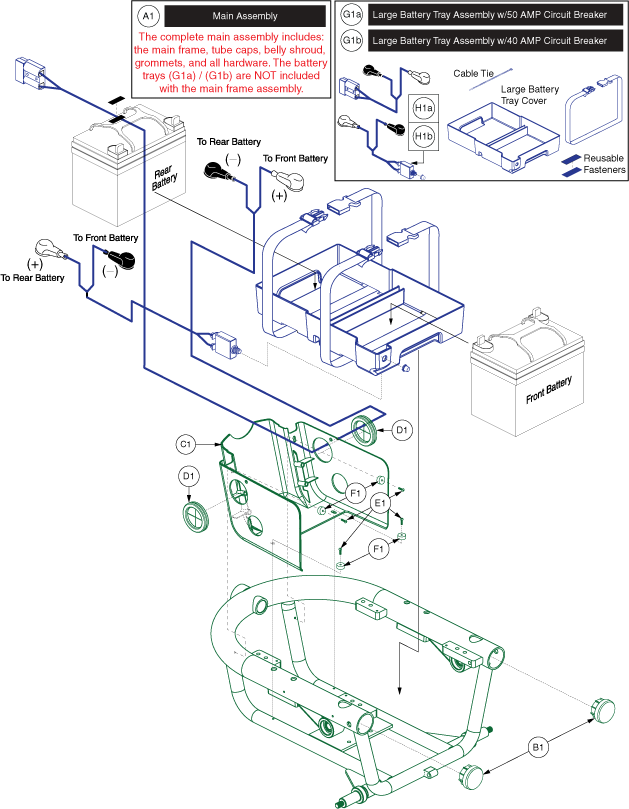

MAIN FRAME ASSEMBLY (FRMASMB8469)

$236.49 ~~$309.25~~

B1

DWR1054C012

Pride Mobility

MAIN TUBE CAP,C-1054-012 (DWR1054C012)

$3.29

C1

DWR1054E006

Pride Mobility

SHROUD,BELLY PAN,E-1054-006 (DWR1054E006)

$7.69 ~~$8.88~~

D1

DWR1054B024

GROMMET, RUBBER, HOLE, B-1054-024

---

E1

SCRPPH1318

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 16, FT, ISO 7045, CL 4.8, BZ (SCRPPH1318)

$3.29

F1

DWR1054A011

SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011

---

G1a

DGN142484

Pride Mobility

BATTERY,ASSY,TRAY,LARGE,PLASTIC,W/50 AMP CIRCUIT BREAKER & DECALS (DGN142484)

$172.69 ~~$213.54~~

G1b

DGN142485

Pride Mobility

BATTERY,ASSY,TRAY,SMALL,PLASTIC,W/50 AMP CIRCUIT BREAKER & DECALS (DGN142485)

$170.49 ~~$209.87~~

H1a

ELECBRK1030

50 Amp (50A) 125/250VAC / 50VDC Push-Button Reset Circuit Breaker with clear rubber button cover and straight screw terminals, suitable for mobility scooters and power chairs.

Monster Scooter Parts

50 Amp (50A) 125/250VAC / 50VDC Push-Button Reset Circuit Breaker (LRB402307)

$13.99

H1b

ELECBRK1007

40 Amp Circuit Breaker with Right Angle Screw Terminals, showing a close-up of the device's compact design and angled terminals, ideal for Jazzy power chairs and various mobility equipment.

Mechanical Products

40 Amp Circuit Breaker with Right Angle Screw Terminals

$49.49
