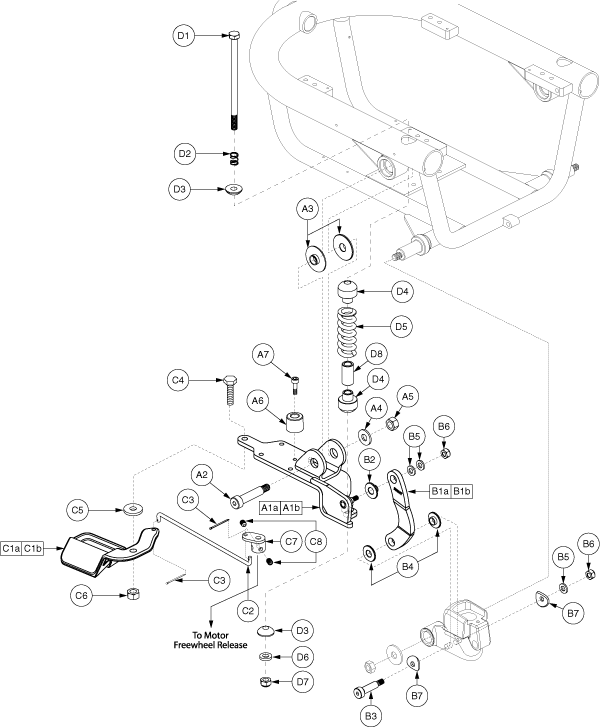

Jazzy 610 - Anti -Tip / Freewheel Release - Motor Mount W/ Suspension Strut & Freewheel


Pos.
MPN
Details
A1a - E1a
FRMASMB8462

ANTI-TIP, ASSY, ACTIVE TRACK, RIGHT

---
A1b - E1b
FRMASMB8461

ANTI-TIP, ASSY, ACTIVE-TRACK, LEFT

---
A1a - C8
FRMASMB8465

ANTI-TIP, ASSY, MOTOR MOUNT W/FREEWHEEL, RIGHT

---
A1b - C8
FRMASMB8481

ANTI-TIP, ASSY, MOTOR MOUNT W/FREEWHEEL, LEFT

---
A1a - A7
FRMASMB8464

ANTI-TIP, ASSY, ACTIVE-TRACK /MOTOR MOUNT, RIGHT

---
A1b - A7
FRMASMB8463

ANTI-TIP, ASSY, ACTIVE-TRACK/MOTOR MOUNT, LEFT

---
A1a
DWR1054E024

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, RIGHT

---
A1b
DWR1054E023

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, LEFT

---
A2
BLTASHL1126

Pride Mobility

BOLT, SHOULDER, 12 X 45, M10X1.5, ISO 7379, CL 12.9, BLK (BLTASHL1126)

$3.29
View details
A3
BRGFLNG1053
A4
WASMETR1043

Pride Mobility

WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ (WASMETR1043)

$3.29
View details
A5
NUTNYLK1073

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

$3.29
View details
A6
DWR1054B057

Pride Mobility

BUMPER,RUBBER,B-1054-057 (DWR1054B057)

$3.29
View details
A7
SCRSHCS1175

SCREW, SHCS, BLACK ZINC, M6-1.0 X 20MM

---
B1a - B7
FRMASMB8467

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, RIGHT

---
B1b - B7
FRMASMB8466

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, LEFT

---
B1a
DWR1054C041

TRANSFER LINK, ACTIVE-TRACK, FRONT/RIGHT, C-1054-041

---
B1b
DWR1054C040

TRANSFER LINK, ACTIVE-TRACK, FRONT/LEFT, C-1054-040

---
B2
BRGFLNG1051
B3
BLTASHL1131

Pride Mobility

BOLT, SHOULDER, M8 X 35, ISO 7379, CL 12.9, BZ (BLTASHL1131)

$3.29
View details
B4
BRGFLNG1052

BEARING, FLANGE, DELRIN, 8.2MM ID X 10.2MM OD X 5MM TH

---
B5
WASMETR1033
View details
B6
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
B7
DWR1005B051
View details
C1a - C8
FRMASMB8472

FREEWHEEL, ASSY, RELEASE, RIGHT, JAZZY610, C-1054-049

---
C1b - C8
FRMASMB8471

FREEWHEEL, ASSY, RELEASE, LEFT, JAZZY610, C-1054-052

---
C1a
DWR1054D056

FREEWHEEL LEVER CASTING, RIGHT, D-1054-056

---
C1b
DWR1054D055

FREEWHEEL LEVER CASTING, LEFT, D-1054-055

---
C2
DWR1054C043

FREEWHEEL, RELEASE ROD, C-1054-043

---
C3
PINSOTR1000

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

$3.29
View details
C4
SCRHHCS1288

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 10.9

---
C5
WASNYLN1066

Monster Scooter Parts

Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)

$1.11 $1.47
View details
C7
DWR1054B055

FREEWHEEL, MOTOR RELEASE WELDMENT, B-1054-055

---
C8
SCRSETS1023

Pride Mobility

SCREW,SET,M6-1.0 X 8MM,CUP POINT (SCRSETS1023)

$2.47 $3.29
View details
D1 - D8
FRMASMB8474
View details
D1
SCRHHCS1380

SCREW, HHCS, BLACK ZINC CHROMATE, M8-1.25 X 140MM, GR 12.9

---
D2
DWR1054B058

SPRING, BLACK, 14.22MM FL X 10.67MM OD X .97 MM DIA

---
D3
DWR1054A004

ACTIVE TRAC PIVOT DOME, BLACK ZINC, 8.43MM ID X 22.15MM OD X 7MM TH, A-1054-004

---
D4
DWR1054B056

SUSPENSION, BALL PIVOT, SPRING ROD, B-1054-056

---
D5
DWR1054B059

SPRING, BLACK, 63.5MM FL X 24.77MM OD X 5.26MM DIA

---
D6
WASNYLN1085

Monster Scooter Parts

Black Nylon Washer for Jazzy Anti-Tip Wheels (WASNYLN1085)

$2.99
View details
D7
NUTNYLK1080

Monster Scooter Parts

M8-1.25 Black Lock Nut (NUTNYLK1080)

$4.39
View details
D8
DWR1054B062

SPACER, BLACK, NYLON, 8.5MM ID X 13.5MM OD X 26MM TH

---
E1a
FRMASMB8475

CASTER, ASSY, ARM, W/CASTER BARREL, BLACK RIM/GRAY TIRE, ACTIVE-TRACK, FRONT/RIGHT, JAZZY610

---
E1b
FRMASMB8476

CASTER, ASSY, ARM, W/CASTER BARREL, BLACK RIM/GRAY TIRE, ACTIVE-TRACK, FRONT/LEFT, JAZZY610

---
