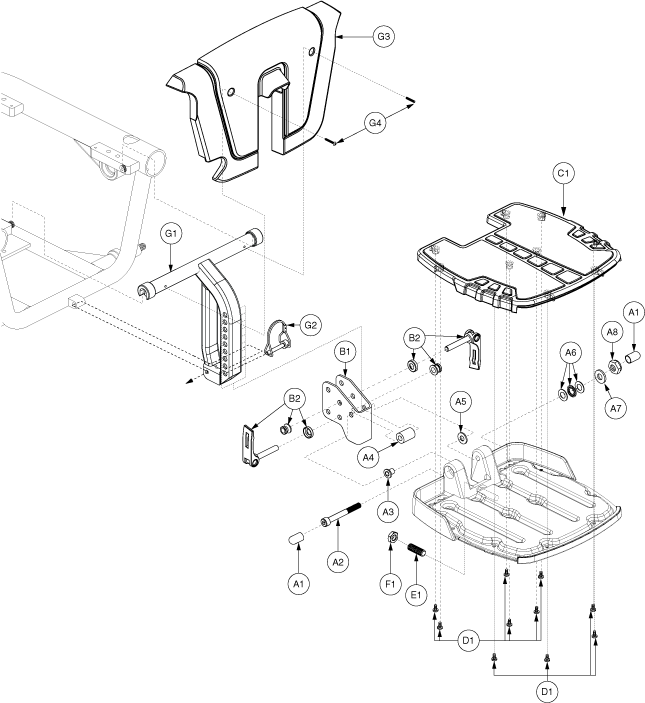

Jazzy 610 - Footrest Platform - Standard

FOOT PLATFORM, ASSY, W/MOUNTING BRACKET, JAZZY610, E-1054-037

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

Pride Mobility

SCRSHCS1170 - Black Zinc Socket Head Screw, M8 x 1.25 x 80, ISO 4762, CL 12.9 for Quantum 6000 & 600 Power Chairs

FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458

SPACER, STEEL, 0.328" ID X 0.50" OD X 1.00" TH, B-1010-090

Monster Scooter Parts

WASNYLN1066 - Footrest Platform Black Washer for the Jazzy 600

BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)

SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459

Monster Scooter Parts

NUTNJAM1020 - M8-1.25x6.5 Black Lock Nut

FOOT PLATFORM MOUNTING BRACKET, ASSY, JAZZYULTRA/610, D-1054-053

FOOT PLATFORM MOUNTING BRACKET, C-1054-004

LEVER, B-1054-025

MAT, RUBBER, FOOT PLATFORM, E-1056-029

Monster Scooter Parts

M4-.7 X 8MM Black Zinc Screw (DWR1354D001)

Pride Mobility

SCRSETS1096 - Black Zinc Cup Set Screw, M10 x 1.5 x 30, ISO 4029, 45H for Quantum 6000 & 600 Power Chairs

Pride Mobility

NUTJAM1028 - Black Zinc Jam Nut, M10 x 1.5, ISO 4035, CL 04 for Quantum 6000 & 600 Power Chairs

Pride Mobility

MEC138920 - Battery Access Door Frame Assembly with Front Shroud, J6, Standard with Decal for Quantum 610 Power Chairs

FRAME, FOOT PLATFORM UPRIGHT TUBE WELDMENT, STANDARD, REINFORCED, E-1054-050

Monster Scooter Parts

DWR1054B026 - Seat Tower Safety Pin for Jazzy, Jet and Quantum Power Chairs

SHROUD, FRONT DOOR, BLACK, E-1054-015

Monster Scooter Parts

SCRPPH1163/SCRPPH1050 - M4-.7x10 mm Black Pan Head Machine Screw

Pride Mobility

DWR1234L004 - 300 lbs/135 kg Maximum Weight Capacity Icon Decal
