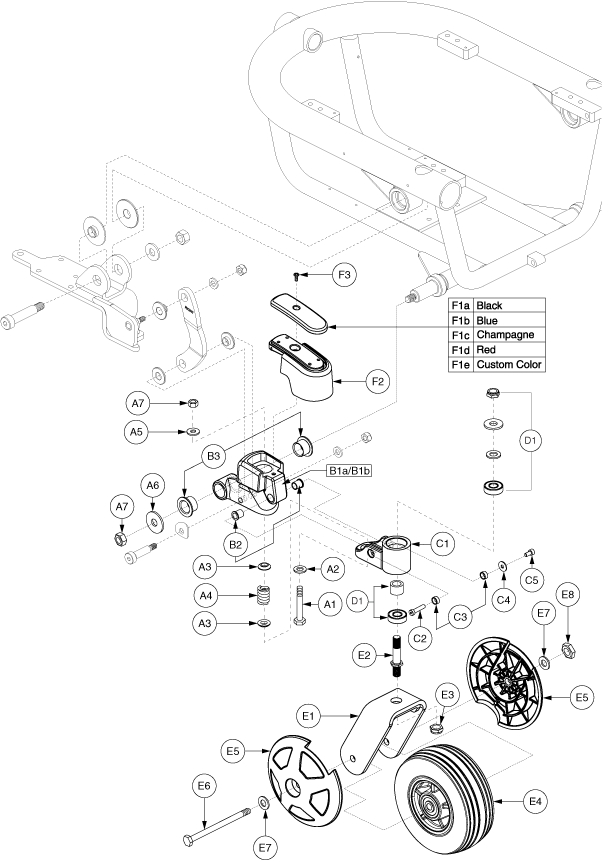

Jazzy 610 - Anti -Tip / Freewheel Release - Caster Arm W/ Forks & Wheels - Used On Or After Sn J7408607001s10


Pos.
MPN
Details
A1 - E8
FRMASMB8475

CASTER, ASSY, ARM, W/CASTER BARREL, BLACK RIM/GRAY TIRE, ACTIVE-TRACK, FRONT/RIGHT, JAZZY610

---
A1 - E8
FRMASMB8476

CASTER, ASSY, ARM, W/CASTER BARREL, BLACK RIM/GRAY TIRE, ACTIVE-TRACK, FRONT/LEFT, JAZZY610

---
A1 - D1
FRMASMB10494

ANTI-TIP, ASSY, ARM, REINFORCED, W/CASTER BARREL, ACTIVE-TRACK, FRONT/RIGHT, JAZZY/QUANTUM610, E-1054-058

---
A1 - D1
FRMASMB10493

ANTI-TIP, ASSY, ARM, REINFORCED, W/CASTER BARREL, ACTIVE-TRACK, FRONT/LEFT, JAZZY/QUANTUM610, E-1054-057

---
A1
SCRHHCS1444

Monster Scooter Parts

M10-1.5x50mm Caster Arm Black Screw for the Jazzy 600 (SCRHHCS1444)

$1.47
View details
A2
DWR1056B066

WASHER, FLAT, BLACK ZINC, 10.5MM ID X 20MM OD X 3MM TH

---
A3
DWR1056B049

SPRING PIVOT, MUSHROOM, FRONT, B-1056-049

---
A4
DWR1056B056

SPRING, BLACK, 1.00" FL X 0.730" OD X 0.148" WIRE DIA X RATE: 1150 LBS/IN, B-1056-056, (LEE SPRING: LHL-750D-1)

---
A5
WASMETR1031
View details
A6
WASMETR1043

Pride Mobility

WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ (WASMETR1043)

$3.29
View details
A7
NUTNYLK1073

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

$3.29
View details
B1a - B3
FRMASMB8479

ANTI-TIP, ASSY, ARM, FRONT/RIGHT, W/BEARINGS, JAZZY610, C-1054-058

---
B1b - B3
FRMASMB8480

ANTI-TIP, ASSY, ARM, FRONT/LEFT, W/BEARINGS, JAZZY610, C-1054-057

---
B1a
DWR1054E047

ANTI-TIP ARM FORGING, ACTIVE-TRACK, RIGHT, E-1054-047

---
B1b
DWR1054E046

ANTI-TIP ARM FORGING, ACTIVE-TRACK, LEFT, E-1054-046

---
B2
BRGFLNG1046

Monster Scooter Parts

Flange Bearings for Caster Assembly for the Jazzy 600 (BRGFLNG1046)

$3.29
View details
B3
BRGFLNG1045

BEARING, FLANGE, DELRIN, 19MM ID X 23MM OD X 16MM TH X 32MM FOD X 2MM FTH, B-1056-050

---
C1 - D1
FRMASMB10549

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/RIGHT, JAZZY/QUANTUM600/610, C-1202-007

---
C1 - D1
FRMASMB10550

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/LEFT, JAZZY/QUANTUM600/610, C-1202-008

---
C1
DWR1056C041

CASTER, BARREL WELDMENT, FRONT, C1056-041

---
C2
DWR1056C042

PIVOT SHAFT, CASTER SUSPENSION, FRONT

---
C3
BSHSLV1015

BUSHING, SLEEVE, DELRIN, 10MM ID X 13MM OD X 6MM TH

---
C4
WASMETR1095

WASHER, FLAT, BLACK ZINC, 6.4MM ID X 18MM OD X 1.6MM TH

---
C5
SCRSHCS1169

Monster Scooter Parts

M6-1.0x12 mm Black Allen Socket Machine Bolt (SCRSHCS1169)

$0.51 $0.79
View details
D1
HDWASMB1090

ANTI-FLUTTER KIT, FRONT CASTER, JAZZY, B-1005-138

---
E1 - E8
FRMASMB11454

CASTER, ASSY, FLAT FREE, BLACK RIM/GRAY TIRE, 5" WHEEL, W/FORK & COVERS, RIGHT, W/RADIUS, D-1202-017

---
E1 - E8
FRMASMB11455

CASTER, ASSY, FLAT FREE, BLACK RIM/GRAY TIRE, 5" WHEEL, W/FORK & COVERS, LEFT, W/RADIUS, D-1202-018

---
E1
DWR1202C002

FORK, WELDMENT, 5", CASTER, C-1202-002

---
E2
DWR1005C032

PIVOT STUD, CASTER FORK, BLACK, M16-1.5 (TOP), 1/2-20 (BOTTOM) X 74.18MM, FRONT, C1005-032

---
E3
NUTJAM1027

Pride Mobility

NUT, HEX JAM, M16X1.5, ISO 8675, CL 04, BZ (NUTJAM1027)

$3.29
View details
E4
WHLASMB1745

Monster Scooter Parts

5"x1.75" Flat-Free Front Caster Wheel Assembly for Jazzy 600 Power Chairs

$34.99
View details
E5
DWR1202C012

Monster Scooter Parts

Caster Ball Cover for the Jazzy 600 (DWR1202C012)

$17.59
View details
E6
SCRHHCS1384

Pride Mobility

SCREW,HHCS,BLACK ZINC,M8-1.25 X 80MM,GRADE 12.9 (SCRHHCS1384)

$2.47 $3.29
View details
E7
WASMETR1029

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

---
E8
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
F1a - F3
SHDASMB4494

SHROUD, ASSY, BLACK, CASTER ARM COVER, C-1054-059

---
F1a
SHDPNTD2681

SHROUD, PAINTED, BLACK, JAZZY610, CASTER ARM COVER, C-1054-053

---
F1b - F3
SHDASMB4493

SHROUD, ASSY, BLUE, CASTER ARM COVER, C-1054-059

---
F1b
SHDPNTD2680

SHROUD, PAINTED, BLUE, JAZZY610, CASTER ARM COVER, C-1054-053

---
F1c - F3
SHDASMB4495

SHROUD, ASSY, CHAMPAGNE, CASTER ARM COVER, C-1054-059

---
F1c
SHDPNTD2682

SHROUD, PAINTED, CHAMPAGNE, JAZZY610, CASTER ARM COVER, C-1054-053

---
F1d - F3
SHDASMB4492

SHROUD, ASSY, RED, CASTER ARM COVER, C-1054-059

---
F1d
SHDPNTD2679

SHROUD, PAINTED, RED, JAZZY610, CASTER ARM COVER, C-1054-053

---
F1e - F3
SHDASMB4497

SHROUD, ASSY, CUSTOM COLOR, CASTER ARM COVER, C-1054-059

---
F1e
SHDPNTD2684

SHROUD, PAINTED, CUSTOM COLOR, JAZZY610, CASTER ARM COVER, C-1054-053

---
F2
DWR1054C054

SHROUD, BLACK, CASTER ARM, C-1054-054

---
F3
SCRPPH1163

Monster Scooter Parts

M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)

$1.69 $1.99
View details
