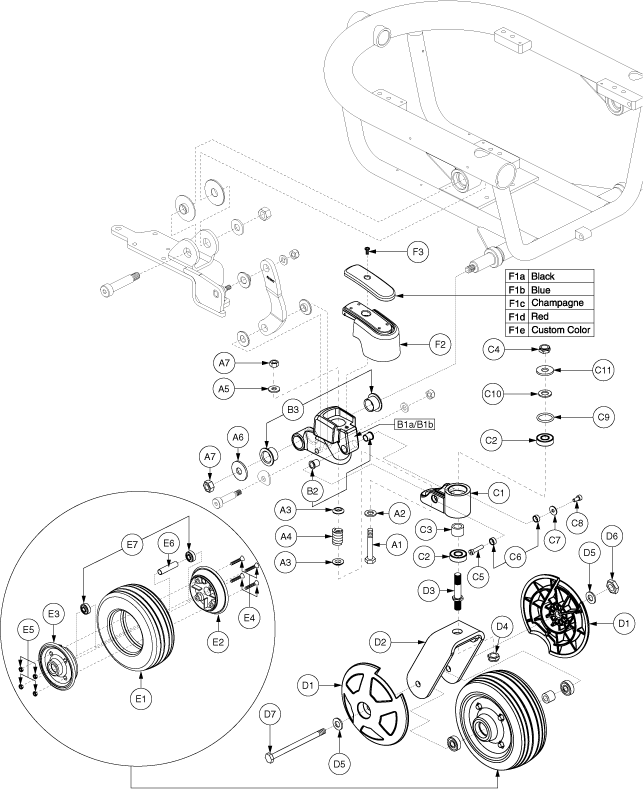

Jazzy 610 - Anti -Tip / Freewheel Release - Caster Arm W/ Forks & Wheels - Used Prior To Sn J7408607001s10

CASTER, ASSY, ARM, W/CASTER BARREL, BLACK RIM/GRAY TIRE, ACTIVE-TRACK, FRONT/RIGHT, JAZZY610

CASTER, ASSY, ARM, W/CASTER BARREL, BLACK RIM/GRAY TIRE, ACTIVE-TRACK, FRONT/LEFT, JAZZY610

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, COVERS, ACTIVE-TRACK, FRONT/RIGHT, JAZZY610, E-1054-049

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, COVERS, ACTIVE-TRACK, FRONT/LEFT, JAZZY610, E-1054-048

Monster Scooter Parts

SCRHHCS1444 - M10-1.5x50mm Caster Arm Black Screw for the Jazzy 600

WASHER, FLAT, BLACK ZINC, 10.5MM ID X 20MM OD X 3MM TH

SPRING PIVOT, MUSHROOM, FRONT, B-1056-049

SPRING, BLACK, 1.00" FL X 0.730" OD X 0.148" WIRE DIA X RATE: 1150 LBS/IN, B-1056-056, (LEE SPRING: LHL-750D-1)

Pride Mobility

WASMETR1031 - Black Zinc Flat Washer, 10.5 ID x 20 OD x 2 Thick, ISO 7089-10-200HV for Quantum 4Front & Q6 Edge HD Power Chairs & Pride Jazzy 623 Power Chairs

Pride Mobility

WASMETR1043 - Black Zinc Flat Washer, 10.5 ID x 30 OD x 2.5 Thick, ISO 7093 for Quantum Q6 Edge Z, 610 & 6000 Power Chairs

Pride Mobility

NUTNYLK1073 - Black Zinc Lock Nut, M10 x 1.5, ISO 898-2, CL 8, PVTP (DWG 1714169)

ANTI-TIP, ASSY, ARM, FRONT/RIGHT, W/BEARINGS, JAZZY610, C-1054-058

ANTI-TIP, ASSY, ARM, FRONT/LEFT, W/BEARINGS, JAZZY610, C-1054-057

ANTI-TIP ARM FORGING, ACTIVE-TRACK, RIGHT, E-1054-047

ANTI-TIP ARM FORGING, ACTIVE-TRACK, LEFT, E-1054-046

Monster Scooter Parts

BRGFLNG1046 - Flange Bearings for Caster Assembly for the Jazzy 600

BEARING, FLANGE, DELRIN, 19MM ID X 23MM OD X 16MM TH X 32MM FOD X 2MM FTH, B-1056-050

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/RIGHT, C-1056-043

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/LEFT, C-1056-044

CASTER, BARREL WELDMENT, FRONT, C1056-041

BEARING, SLEEVE, 0.50"ID X 32MM OD X 0.394"TH, A-1101-011, (NGK: 6201-2RS-8)

SPACER, STEEL, 14MM ID X 21MM OD X 15MM TH, B-1056-047

PIVOT SHAFT, CASTER SUSPENSION, FRONT

BUSHING, SLEEVE, DELRIN, 10MM ID X 13MM OD X 6MM TH

Monster Scooter Parts

WASMETR1083 - 6.4mm IDx18mm ODx1.6mm Thick Steel Flat Black Washer for Front Caster Wheel for the Jazzy 600

Monster Scooter Parts

SCRSHCS1169 - M6-1.0x12 mm Black Allen Socket Machine Bolt

O-RING, NEOPRENE, 25.4MM ID X 31.8MM OD, A-1101-013

SHIM, BRIGHT ZINC, STEEL, 13MM ID X 24MM OD X 2MM TH, A-1101-001

SPACER, BRIGHT ZINC, STEEL, 13MM ID X 31.5MM OD X 3.18MM TH, A-1101-003

CASTER, ASSY, FLAT FREE, 5" WHEEL, W/FORK & COVERS, FRONT/RIGHT, E-1056-036

CASTER, ASSY, FLAT FREE, 5" WHEEL, W/FORK & COVERS, FRONT/LEFT, E-1056-045

COVER, CASTER BALL, 5" WHEEL

FORK, WELDMENT, CASTER, FRONT

STEM, CASTER PIVOT, 1/2-20 X 3.00"

Monster Scooter Parts

Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

Monster Scooter Parts

NUTNJAM1020 - M8-1.25x6.5 Black Lock Nut

Pride Mobility

SCRHHCS1384 - Black Zinc Hex Head Cap Screw, M8-1.25 x 80mm, Grade 12.9 for Quantum 6000 & 600 Power Chairs

WHEEL, ASSY, CASTER, FLAT FREE, 5", W/BEARINGS & SPACER

TIRE, FLAT FREE, GRAY, 5" X 1.75", SOLID, PRIMO

WHEEL, RIM, PLASTIC, 77MM X 22MM, FRONT, BOLT SIDE

WHEEL, RIM, PLASTIC, 77MM X 22MM, FRONT, NUT SIDE

SCREW, PFH, ZINC, M6 X 1 X 30MM

NUT, NYLOCK, ZINC, M6-1.0

SPACER, STEEL, BLACK ZINC, 9.0MM ID X 12.0MM OD X 46.5MM TH

BEARING, BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608-2RS)

SHROUD, ASSY, BLACK, CASTER ARM COVER, C-1054-059

SHROUD, PAINTED, BLACK, JAZZY610, CASTER ARM COVER, C-1054-053

SHROUD, ASSY, BLUE, CASTER ARM COVER, C-1054-059

SHROUD, PAINTED, BLUE, JAZZY610, CASTER ARM COVER, C-1054-053
