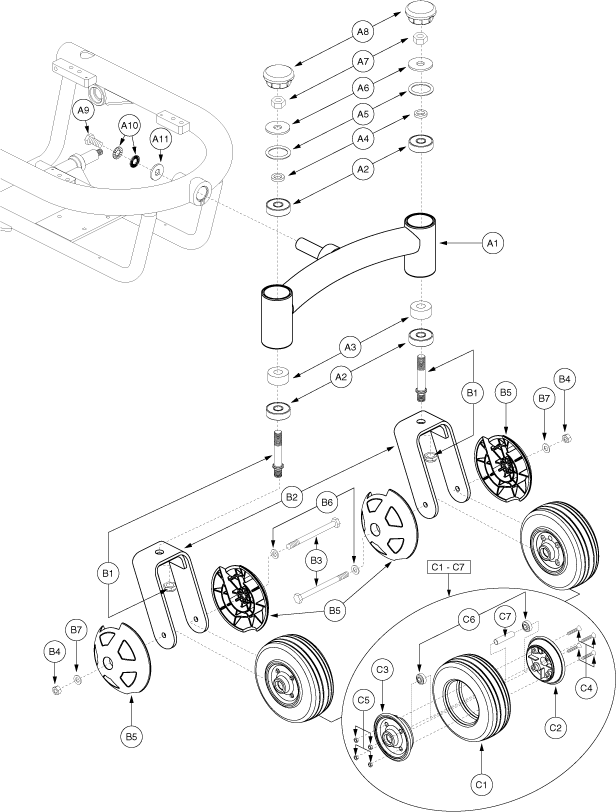

ARTICULATING BEAM, ASSY, CURVED, W/CASTER WHEELS, JAZZY610
ARTICULATING BEAM, ASSY, W/ANTI-FLUTTER KIT, JAZZY610, E-1054-038
ARTICULATING BEAM WELDMENT, E-1054-028
BEARING, BALL, 12.7MM ID X 40MM OD X 12MM TH, ABEC 3, (PEER: 6203-8-2RS), A-1133-004
SPACER, STEEL, 14.50MM ID X 34MM OD X 15.50MM TH, A-1054-007
SHIM, STEEL, 13MM ID X 21MM OD X 4MM TH, A-1054-006
O-RING, NEOPRENE, 1.250" ID X 1.625" OD X 0.187" TH, (MCMASTER CARR: 94115K515-322), A-1133-007
WASHER, BLACK, STEEL, 13MM ID X 40MM OD X 3MM TH, A-1133-005
Monster Scooter Parts
Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)
Monster Scooter Parts
Rear Caster Cap for Jazzy 600 XL & Jet 3 Ultra (DWR1054C008)
Pride Mobility
SCREW, HEX HEAD, M10X1.5 X 20, ISO 4014, CL 12.9, BZ (SCRHHCS1290)
Pride Mobility
WASHER, WEDGE LOCK, 0.410 ID X .650 OD X 0.10 TH, NORD LOCK NO. NL3-8 (WASSTND1104)
Pride Mobility
WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ (WASMETR1043)
CASTER, ASSY, FLAT FREE, 6" WHEEL, W/FORK & COVERS, REAR/RIGHT, D-1056-032
CASTER, ASSY, FLAT FREE, 6" WHEEL, W/FORK & COVERS, REAR/LEFT, D-1056-029
STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006
FORK, WELDMENT, CASTER, REAR, D-1056-027
Pride Mobility
SCREW, HEX HEAD, M8X1.25 X 110, ISO 4014, CL 12.9, BZ (SCRHHCS1370)
Monster Scooter Parts
6" Caster Wheel Cover for the Jazzy 600, 600XL, 610, and Quantum 6000Z Power Chairs (DWR1056C066)
Pride Mobility
WASHER,FLAT,BLACK ZINC,8.4MM ID X 16MM OD X 5MM TH, B1056-068 (DWR1056B068)
WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH
WHEEL, ASSY, FLAT FREE, GRAY, 6''X 2'', PRIMO, E-1010-286
WHEEL, TIRE, GRAY, 6''X 2'', SOLID, PRIMO, DURATRAP, RIBBED
WHEEL, RIM, PLASTIC, 102MM X 22MM, FRONT, BOLT SIDE
WHEEL, RIM, PLASTIC, 102MM X 22MM, FRONT, NUT SIDE
SCREW, PFH, ZINC, M6 X 1 X 30MM
NUT, NYLOCK, ZINC, M6-1.0
BEARING, BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608-2RS)
SPACER, STEEL, BLACK ZINC, 9.0MM ID X 12.0MM OD X 46.5MM TH
