Monster Scooter Parts  |  SKU: E41-0097-X02

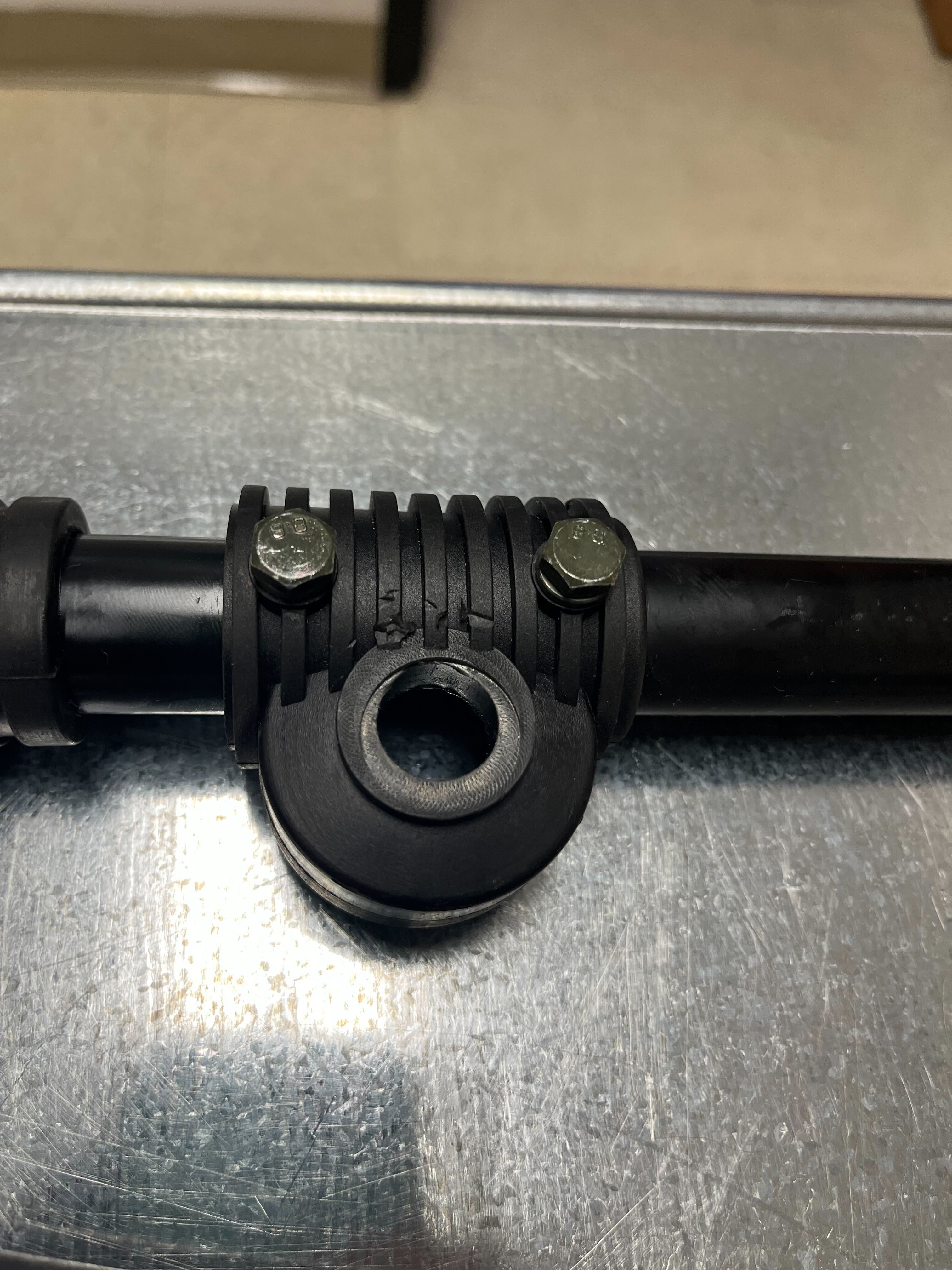

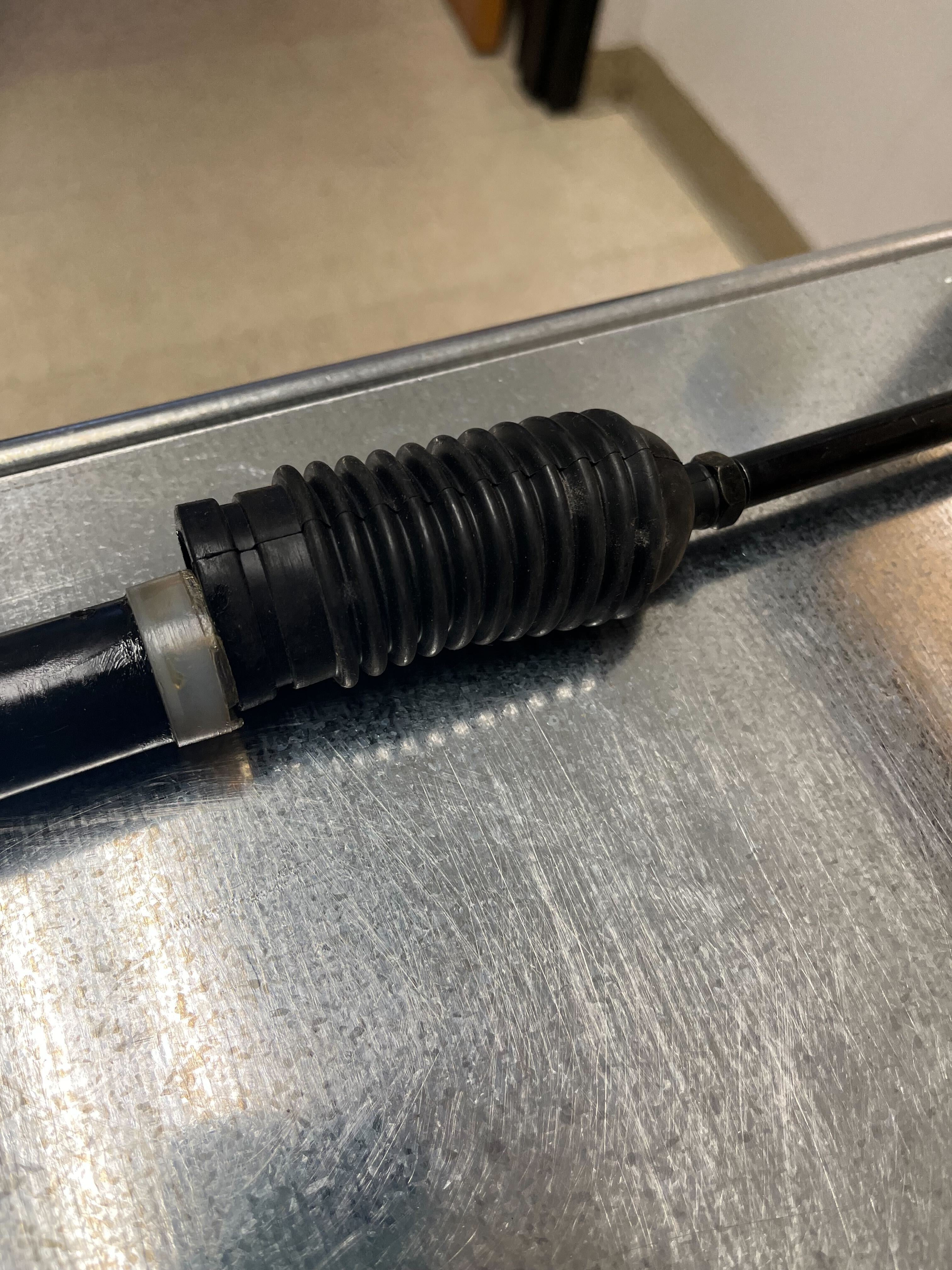

Steering Gear Assembly for the Coleman KT196 196cc 6.5 Hp Go-Kart (Blemished)

$105.99

  • Save $5 on orders $50+ with coupon code: FIVE
  • Save $10 on orders $100+ with coupon code: TEN

    •

    This item is not returnable. Return Policy

    This item has a 30 day warranty. Warranty Policy

    Free Shipping
    • US domestic ship to addresses only.
    • Does not include expedited shipping services.
    Key Features
    • Counterclockwise" thread on fixed longer stud & clockwise thread on shorter swivel stud

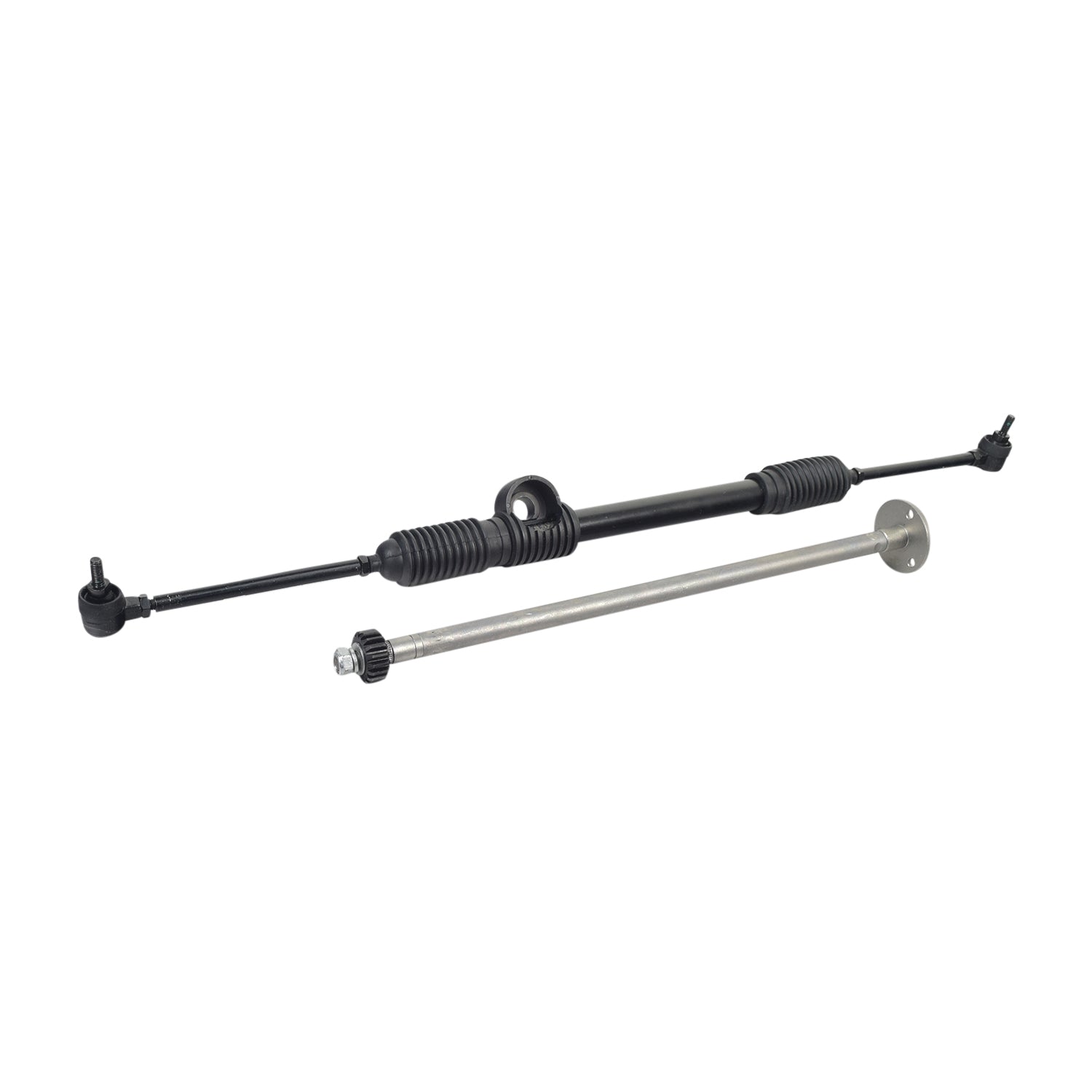

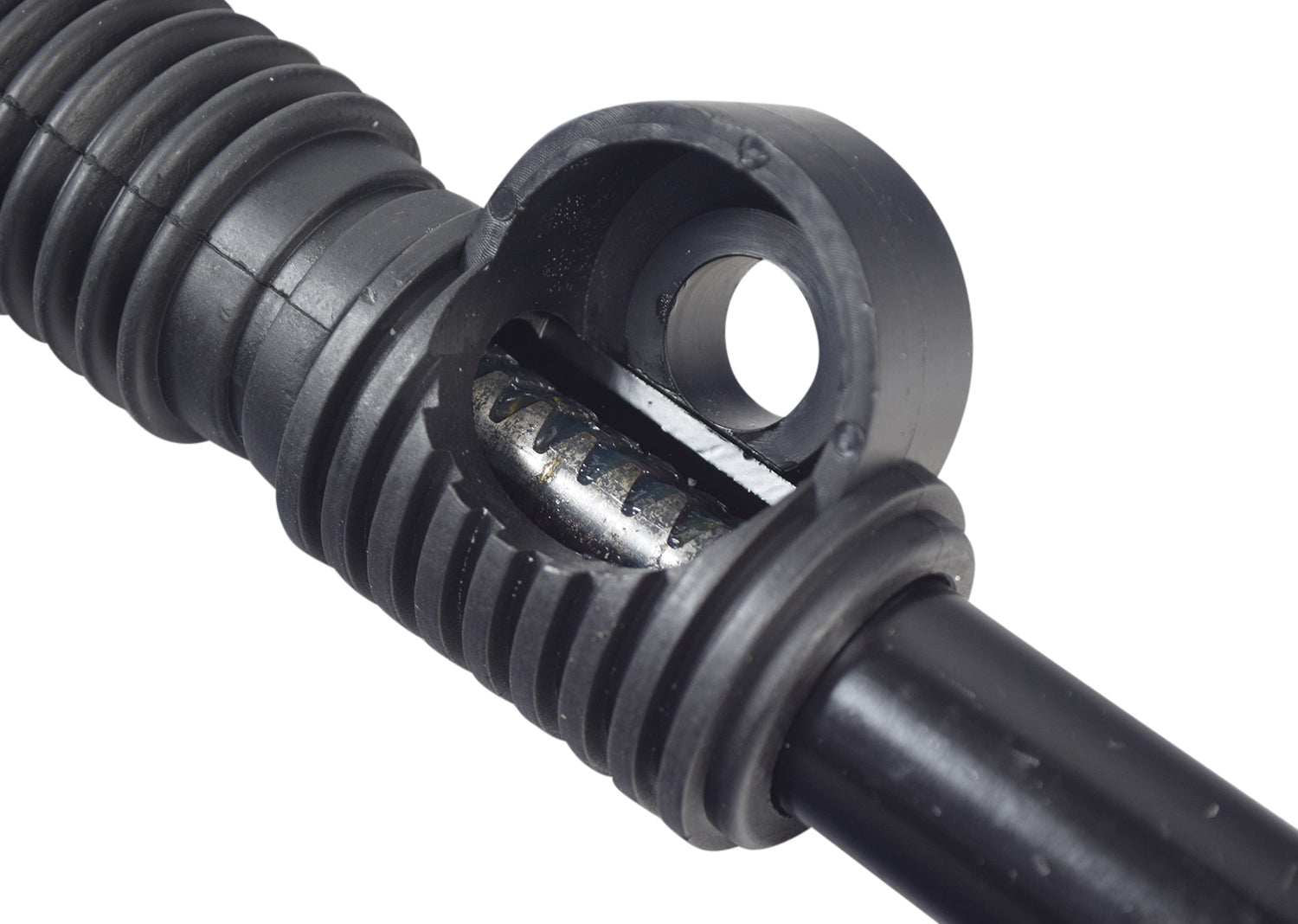

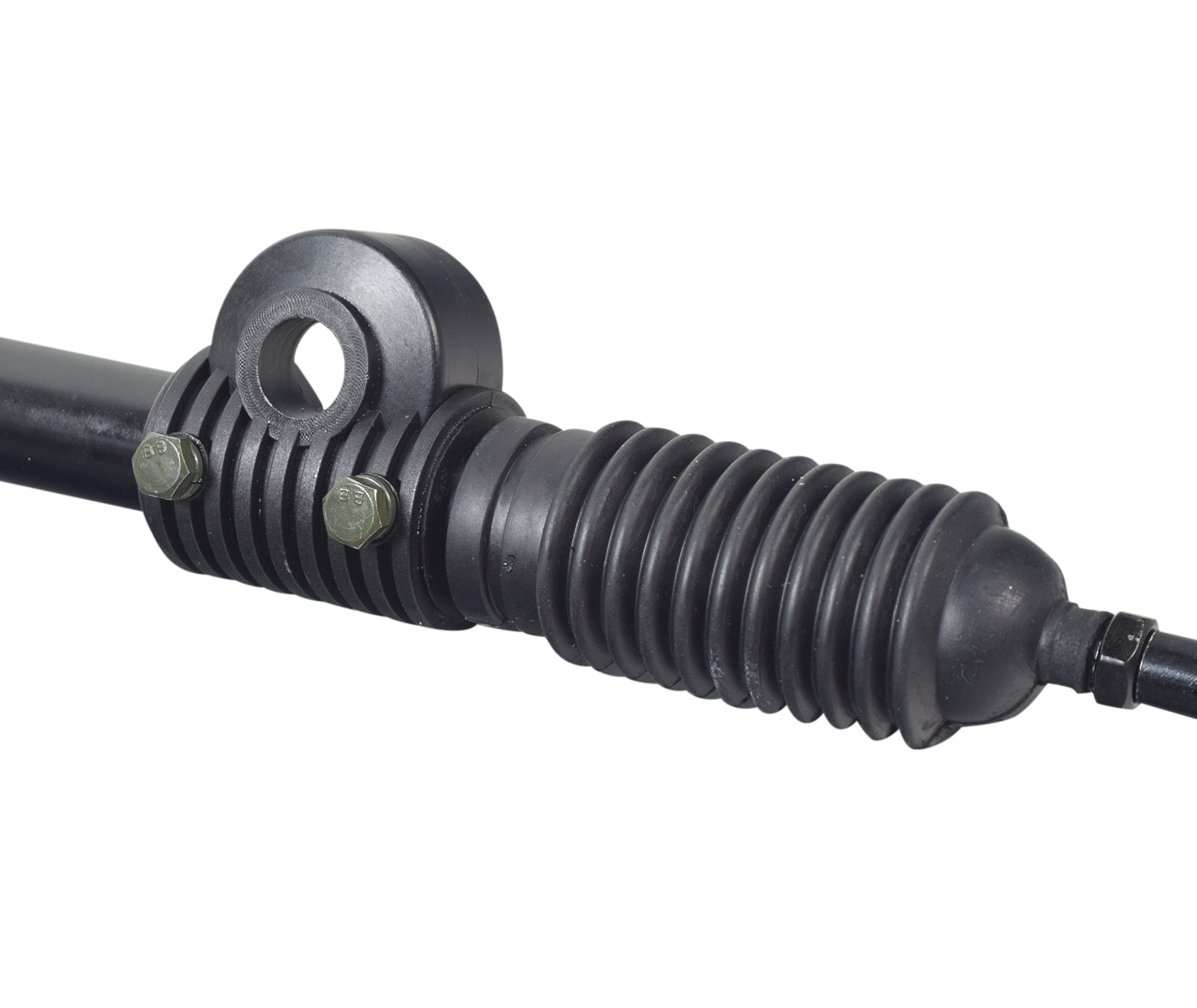

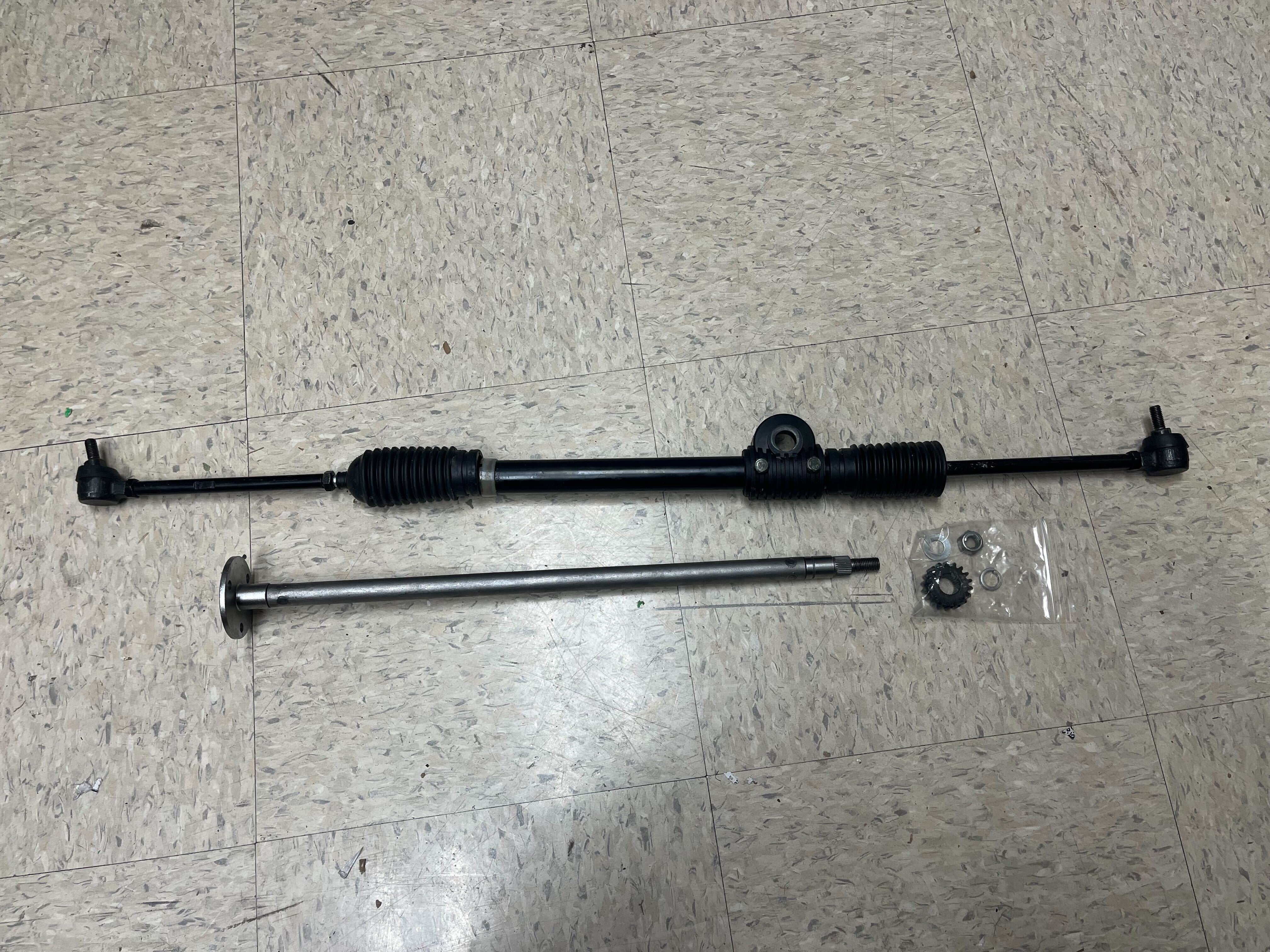

    • Includes the steering shaft, ties rods, steering gearbox, ball joints, & rubber boots
    • 17.8" (45.3 cm) steering shaft
    • May be adaptable for other brands & models

    Description

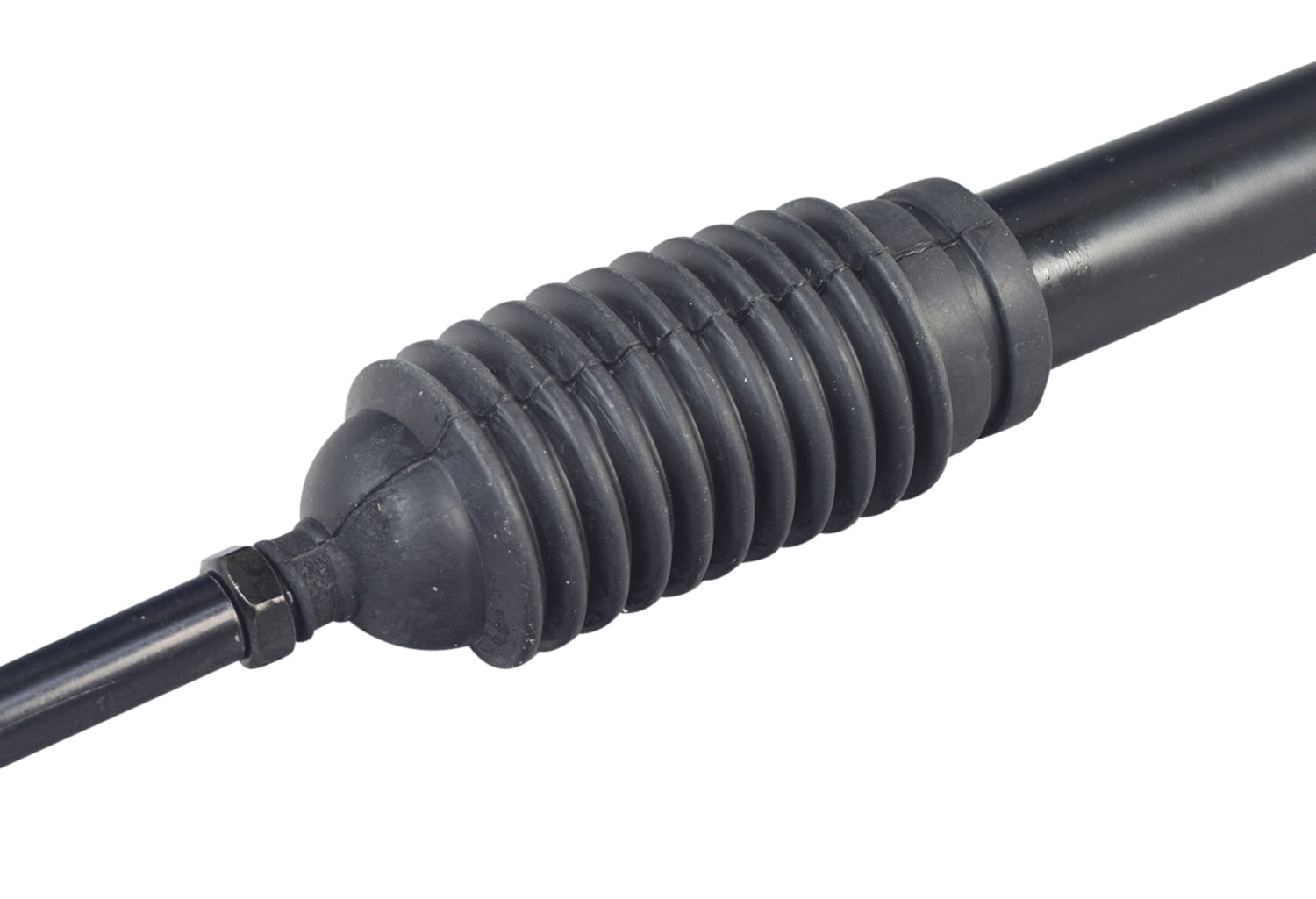

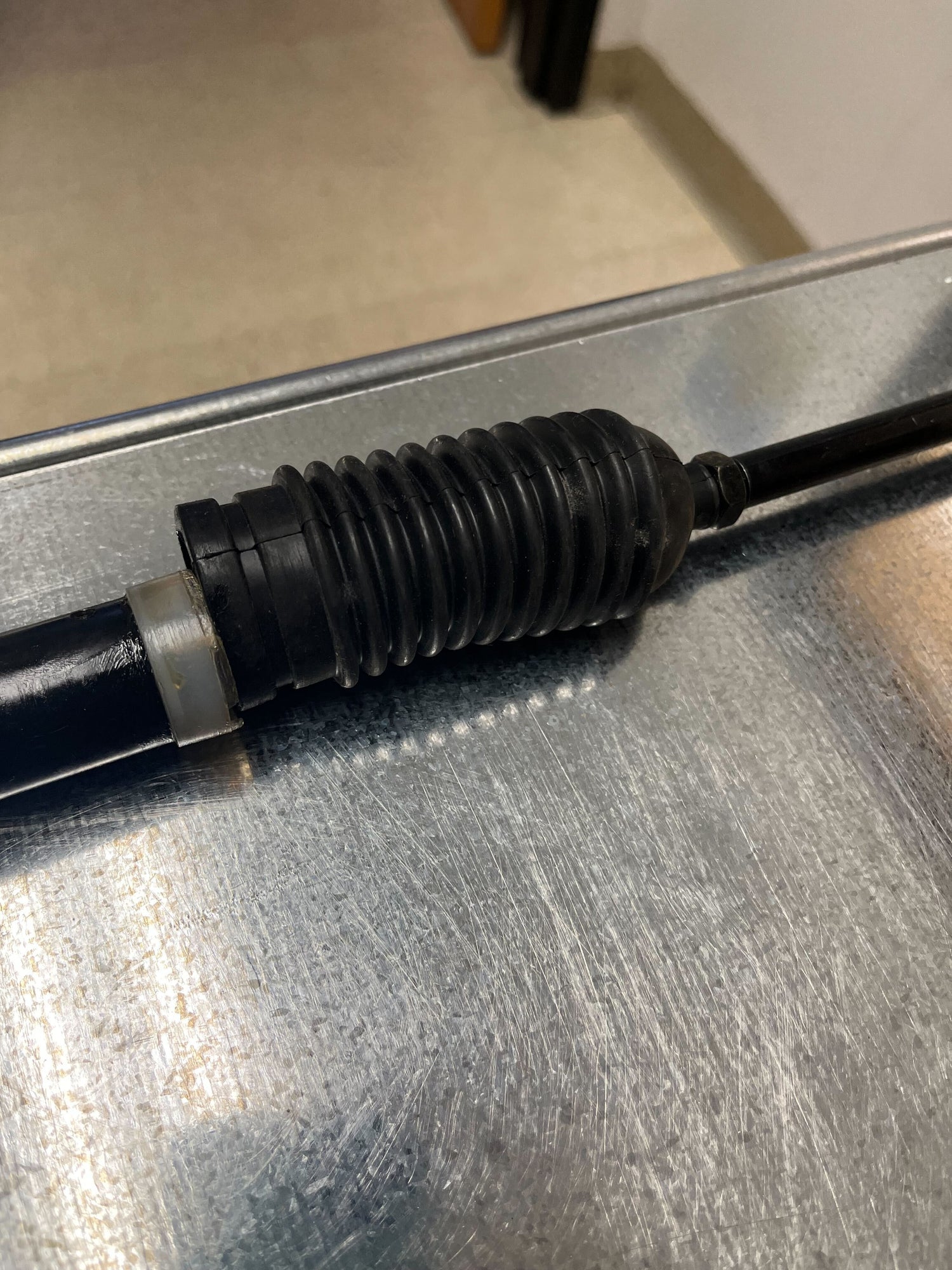

    Our steering gear assembly for the Coleman KT196 196cc 6.5 Hp go-kart is an all-in-one set of top-quality steel components to replace the old ones on your go-kart. As an assembly, this set of steering gear components includes the steering shaft, tie rods, steering gearbox, both ball joints, and the rubber boots to keep out the mud and crud.

    Although this steering gear assembly is made specifically for the Coleman KT196, it may be adaptable for other brands and models of go-karts.

    Just like the one in your car, you don't want your Coleman go-kart's steering systems to break, rust, or otherwise get damaged. If it does then we have the parts and the smarts to help you get it going again.

    ⚠ WARNING California Residents: Proposition 65 Warning

    Reviews (0)

    Specifications

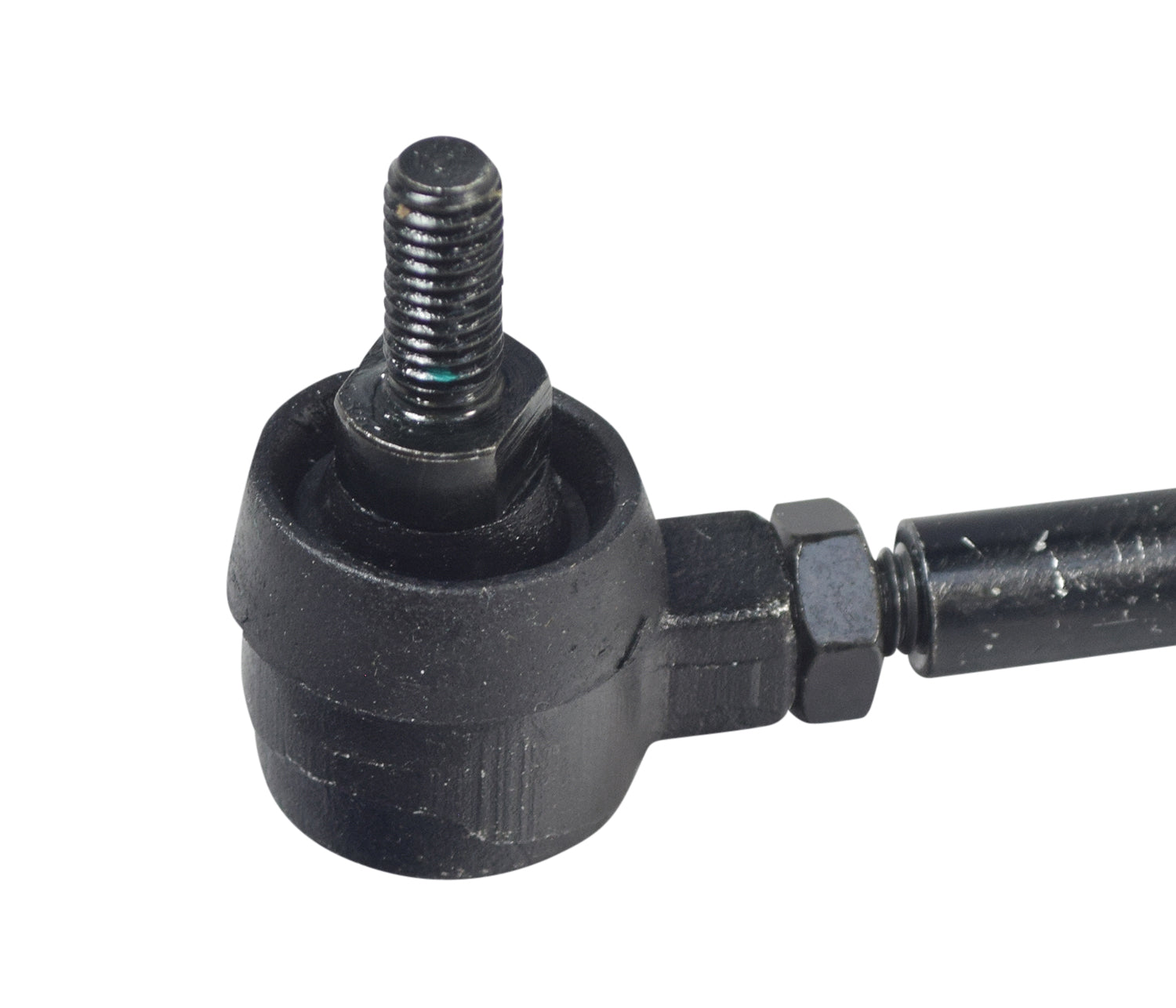

    Ball joints:
    Length: 2.57" (65 mm)
    Height: 2" (51 mm)
    Ball joint stud thread: Right-hand 8 mm x 1.25 x 17 mm (M8-1.25-17)
    Fixed stud thread: Left-hand 8 mm x 1.25 x 23 mm (M8-1.25-23)

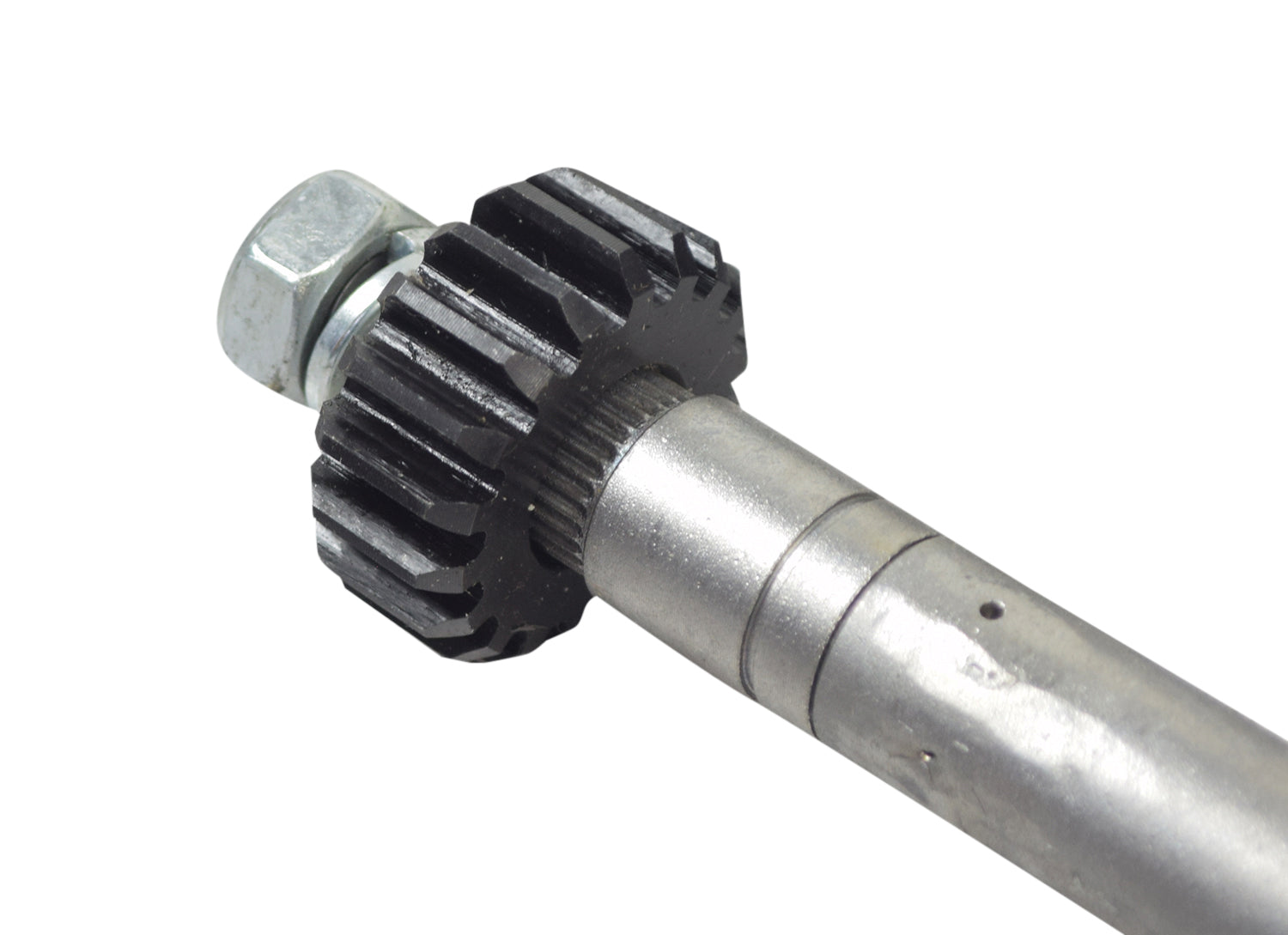

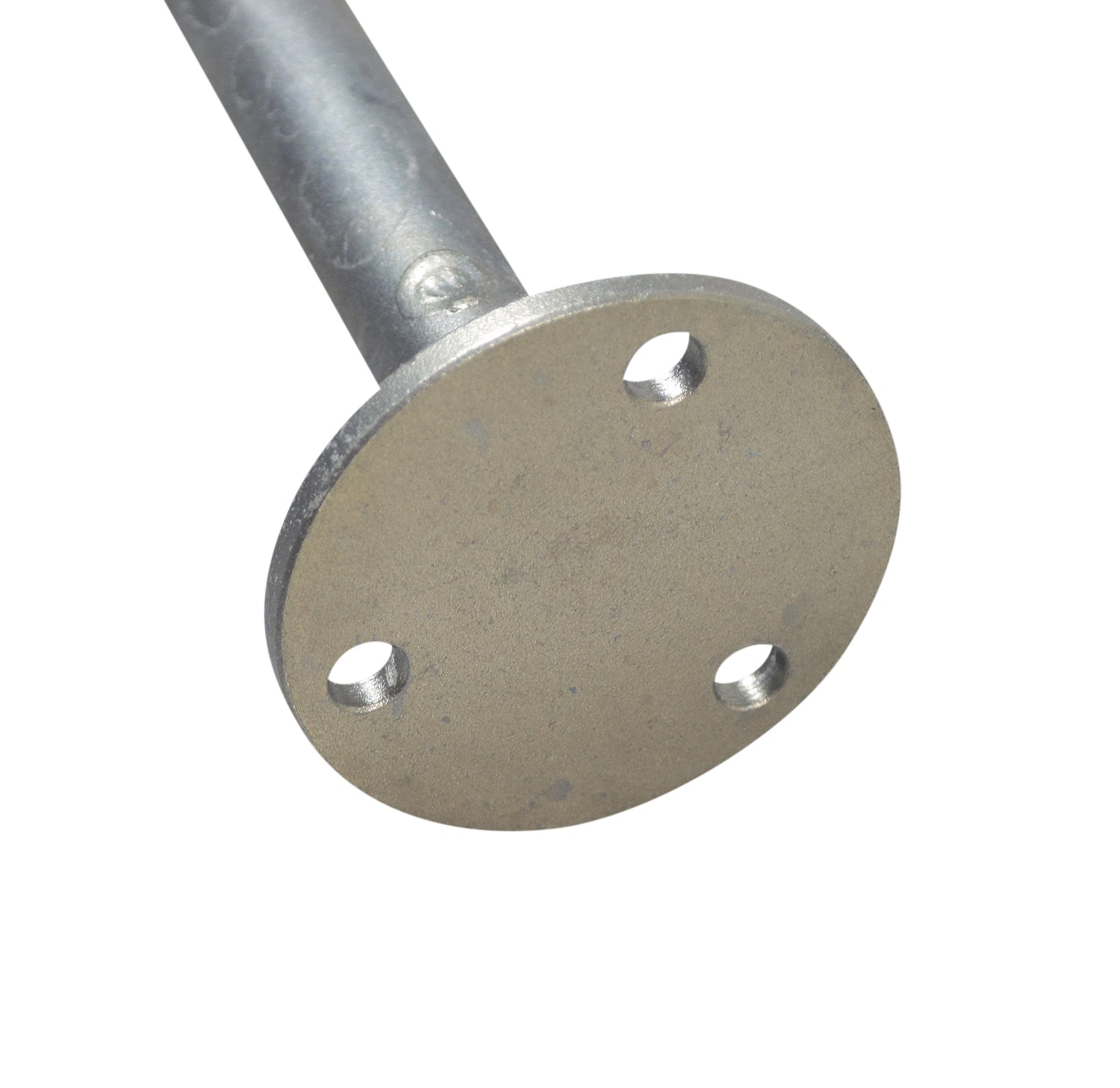

    Shaft:
    Length: 17.8" (45.3 cm)
    Shaft diameter: 0.64" (16 mm)
    Flange diameter: 2.25" (57 mm)
    Thread: 10Mx1.25
    Bolt holes: 3
