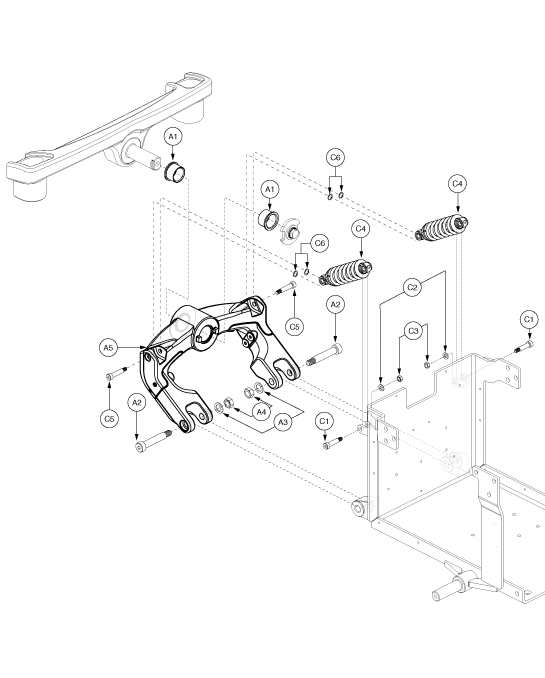

Quantum Q6000XL - Main Frame - Swing Arm - Orange

FRAME, ASSY, REAR FRAME, SUNBURST ORANGE, QUANTUM6000

FRAME, ASSY, SWING ARM W/MOUNTING HARDWARE, ORANGE, QUANTUM6000, E-1059-034

BUSHING, FLANGE, OIL IMPREGNATED BRONZE, 25.05MM ID X 30.035MM OD X 20MM TH X 34.535MM FOD X 2.5MM FTH, B1056-006

BOLT, SHOULDER, 12MM X 55MM, GRADE 12.9, C-1005-016

WASHER, FLAT, BLACK ZINC, STEEL, 13MM ID X 20MM OD X 2MM TH

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

FRAME, ASSY, SWING ARM, ORANGE, E-1059-048

ARTICULATING BEAM, ASSY, ORANGE, W/CASTER WHEELS, Q6000

STRUT, ASSY, SWING ARM, QUANTUM6000, B-1059-039

BOLT, SHOULDER, 8MM X 25MM, GRADE 12.9, C-1005-010

Pride Mobility

WASMETR1033 - Black Zinc Flat Washer, 6.4 ID x 12 OD x 1.6 Thick, ISO 7089-6-200 HV (Use WASSTND1097) for Quantum 6000 & 600 Power Chairs

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

SPRING, STEEL BODIED, YELLOW, 3.00" FL X 1.35" OD X 0.202" WIRE DIA X RATE: 320 LBS/IN, D-1059-009

Pride Mobility

BLTASHL1091 - Shoulder Bolt, M8, 30mm for Quantum 6000 Power Chairs

Pride Mobility

WASRUBR1005 - Black Rubber Washer, 0.355" ID x 0.625" OD x 0.093" TH (McMaster-Carr 90130A031) for Quantum 6000 Power Chairs
