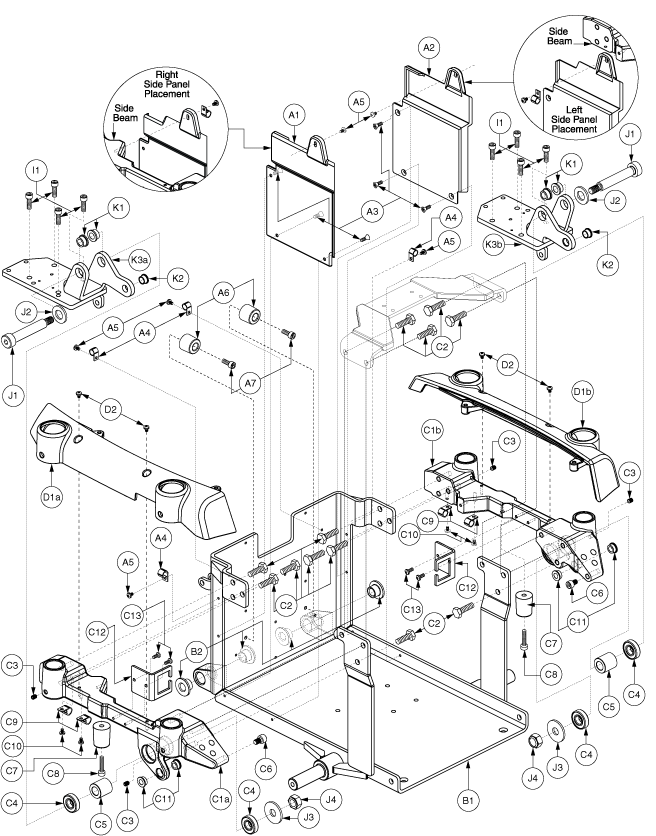

Quantum Q6000XL - Main Frame - Center & Side Frames - Used On Or After Sn J8619308001s10 - Red


Pos.
MPN
Details
A1 - B2
FRMASMB8723

FRAME, ASSY, CENTER FRAME SECTION, QUANTUM6000, E-1059-042

---
A1
DWR1059E027

SHROUD, SIDE PANEL, BLACK, RIGHT, E-1059-027

---
A2
DWR1059E026

SHROUD, SIDE PANEL, BLACK, LEFT, E-1059-026

---
A3
SCRPFH1058

SCREW, PFH, BLACK ZINC, M4-.7 X 8MM

---
A6
DWR1054B057

Pride Mobility

BUMPER,RUBBER,B-1054-057 (DWR1054B057)

$3.29
View details
A7
SCRSHCS1001
View details
B1 - B2
FRMASMB8638

FRAME, ASSY, MAIN, W/BUSHINGS, QUANTUM6000, E-1059-035

---
B1
DWR1059E005

FRAME, WELDMENT, MAIN, E-1059-005

---
B2
BRGFLNG1057

BEARING, FLANGE, DELRIN, 12.16MM ID X 18.10MM OD X 14MM TH X 30MM FOD X 3MM FTH, B-1005-024

---
C1 - H1
FRMASMB11929

FRAME, ASSY, SIDE FRAMES, PAIR, METALLIC RED, VERSION 3, QUANTUM6000

---
C1a - H1
FRMASMB11939

FRAME, ASSY, RIGHT SIDE, RED, VERSION 3, QUANTUM6000

---
C1b - H1
FRMASMB11940

FRAME, ASSY, LEFT SIDE, RED, VERSION 3, QUANTUM6000

---
C1a - C13
FRMASMB11452
View details
C1b - C13
FRMASMB11453

Pride Mobility

FRAME,ASSY,LEFT FORGED SIDE FRAME SECTION,QUANTUM6000/6000Z,D-1065-025 (FRMASMB11453)

$340.99 $462.24
View details
C1a
DWR1065E025

FRAME, MAIN SIDE BEAM, BLACK, FORGED, RIGHT, E-1065-025

---
C1b
DWR1065E026

FRAME, MAIN SIDE BEAM, BLACK, FORGED, LEFT, E-1065-026

---
C2
SCRHHCS1274

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 12.9

---
C3
SCRSETS1023

Pride Mobility

SCREW,SET,M6-1.0 X 8MM,CUP POINT (SCRSETS1023)

$2.47 $3.29
View details
C4
DWR1101A019B
View details
C5
DWR1059B012

Pride Mobility

SPACER,ZINC,STEEL,13MM ID X 23MM OD X 24MM TH,B-1059-012 (DWR1059B012)

$3.29
View details
C6
SCRSHCS1188

SCREW, SHCS, BLACK ZINC, M8-1.25 X 12MM, GRADE 12.9

---
C7
DWR1056B062
View details
C8
SCRSHCS1132

Pride Mobility

SCREW, SOCKET HEAD, M6X1.0 X 25, ISO 4762, CL 8.8, BZ (SCRSHCS1132)

$3.29
View details
C9
CLPCBLC1028

Pride Mobility

CLAMP,CABLE,BLACK,NYLON,.38" DIAMETER,P-CLIP,C-1059-042 (CLPCBLC1028)

$6.59 $7.18
View details
C10
SCRPPH1304
View details
C11
BRGFLNG1056

BEARING, FLANGE, DELRIN, 8MM ID X 13.10MM OD X 6.5MM TH X 16MM FOD X 1.5MM FTH, B-1005-023

---
C12
DWR1065C023

MOUNTING BRACKET, MOTOR CONNECTION, FORGED SIDE FRAME, C-1065-023

---
C13
SCRPPH1050

SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)

---
D1a - D2
SHDASMB5266

SHROUD, ASSY, RED, SIDE FRAME, RIGHT, QUANTUM6000/6000Z

---
D1b - D2
SHDASMB5267

SHROUD, ASSY, RED, SIDE FRAME, LEFT, QUANTUM6000/6000Z

---
D1a
DWR1065E028A

SHROUD, PAINTED, RED, SIDE RAIL, RIGHT, E-1065-028

---
D1b
DWR1065E027A

SHROUD, PAINTED, RED, SIDE RAIL, LEFT, E-1065-027

---
D2
SCRPPH1163

Monster Scooter Parts

M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)

$1.69 $1.99
View details
E1
FRMASMB11266

ANTI-TIP, TRANSFER LINK, ACTIVE-TRACK, Q6000, VERSION 2

---
F1a
FRMASMB11833

FRAME, ASSY, FRONT ARM W/CASTER, REINFORCED, RED, RIGHT, QUANTUM6000, E-1059-070

---
F1b
FRMASMB11838

FRAME, ASSY, FRONT ARM W/CASTER, REINFORCED, RED, LEFT, QUANTUM6000, E-1059-069

---
G1a
SHDASMB4623

Pride Mobility

SHROUD,ASSY,RIGHT FENDER,QUANTUM6000 (SHDASMB4623)

$15.39
View details
G1b
SHDASMB4624

Pride Mobility

SHROUD,ASSY,LEFT FENDER,QUANTUM6000 (SHDASMB4624)

$19.79
View details
H1
FRMASMB11110

Pride Mobility

PIVOTING SPRING MOUNT ASSEMBLY (FRMASMB11110)

$47.29 $50.36
View details
I1 - K3a
FRMASMB11107

MOTOR MOUNT,ASSY,ACTIVE-TRACK,RIGHT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-025

---
I1 - K3b
FRMASMB11108

MOTOR MOUNT,ASSY,ACTIVE-TRACK,LEFT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-026

---
I1
SCRSHCS1172

Pride Mobility

SCREW, SOCKET HEAD, M8X1.25 X 25, ISO 4762, CL 12.9, BZ (SCRSHCS1172)

$3.29
View details
J1 - K3a
FRMASMB17600
View details
J1 - K3b
FRMASMB17599
View details
J1
BLTASHL1157
View details
J2
WASMETR1050
View details
J3
WASMETR1043

Pride Mobility

WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ (WASMETR1043)

$3.29
View details
J4
NUTNYLK1073

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

$3.29
View details
K1 - K3a
FRMASMB10709

ACTIVE-TRACK MOTOR MOUNT, ASSY, RIGHT, QUANTUM6000Z, C-1065-005

---
K1 - K3b
FRMASMB10710

ACTIVE-TRACK MOTOR MOUNT, ASSY, LEFT, QUANTUM6000Z, C-1065-006

---
