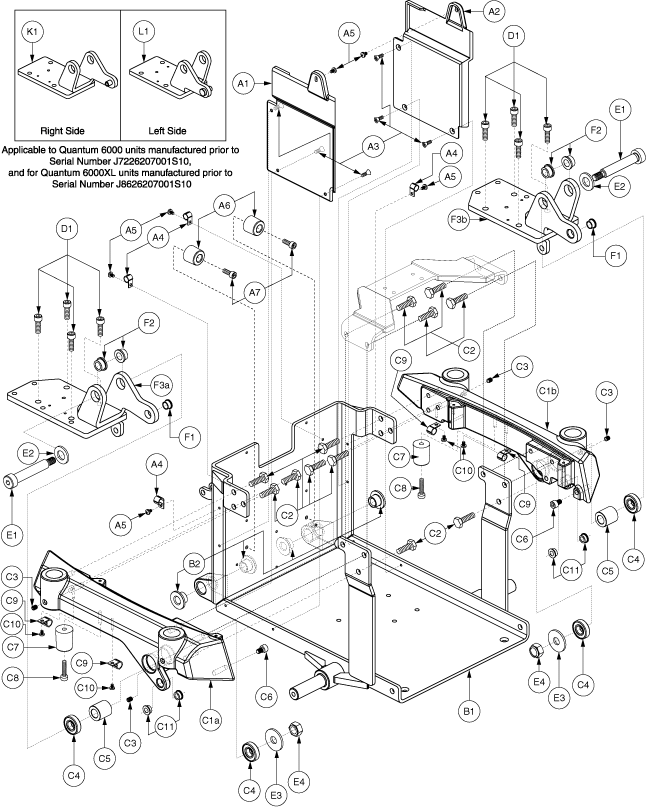

Quantum Q6000XL - Main Frame - Center & Side Frames - Used From Sn J8626207001s10 Through Sn J8619308001s10 - Silver

FRAME, ASSY, CENTER FRAME SECTION, QUANTUM6000, E-1059-042

SHROUD, SIDE PANEL, BLACK, RIGHT, E-1059-027

SHROUD, SIDE PANEL, BLACK, LEFT, E-1059-026

SCREW, PFH, BLACK ZINC, M4-.7 X 8MM

Pride Mobility

DWR1054B057 - Rubber Bumper for Quantum 6000 Power Chairs

Pride Mobility

SCRSHCS1001 - Black Zinc Socket Head Screw, M6 x 1.0 x 16, ISO 4762, CL 12.9 (Use SCRSHCS1153) for Quantum Q6 Edge HD, 6000 & R4000 & R4400 Power Chairs

FRAME, ASSY, MAIN, W/BUSHINGS, QUANTUM6000, E-1059-035

FRAME, WELDMENT, MAIN, E-1059-005

BEARING, FLANGE, DELRIN, 12.16MM ID X 18.10MM OD X 14MM TH X 30MM FOD X 3MM FTH, B-1005-024

FRAME, ASSY, SIDE FRAMES, PAIR, METALLIC SILVER, QUANTUM6000, VERSION 2

FRAME, ASSY, RIGHT SIDE, SILVER, QUANTUM6000, VERSION 2

FRAME, ASSY, LEFT SIDE, SILVER, QUANTUM6000, VERSION 2

FRAME, ASSY, RIGHT SIDE FRAME SECTION, SILVER, QUANTUM6000, D-1059-018

FRAME, ASSY, LEFT SIDE FRAME SECTION, SILVER, QUANTUM6000, D-1059-019

FRAME, MAIN CASTING, SILVER, RIGHT, E-1059-046

FRAME, MAIN CASTING, SILVER, LEFT, E-1059-047

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 12.9

Pride Mobility

SCRSETS1023 - Set Screw, M6-1.0 x 8mm, Cup Point for Quantum 6000 & 600 Power Chairs

Pride Mobility

DWR1101A019B - Ball Bearing, 12 ID x 28 OD x 8 Thick, Double Seal (6001-2RSH) for Quantum 6000 & R4000 & R4400 Power Chairs

Pride Mobility

DWR1059B012 - Zinc Steel Spacer, 13mm ID x 23mm OD x 24mm TH for Quantum 6000 Power Chairs

SCREW, SHCS, BLACK ZINC, M8-1.25 X 12MM, GRADE 12.9

Pride Mobility

DWR1056B062 - Black Rubber Bumper, 6.5mm ID x 25mm OD x 32mm, Shore 90 A for Quantum Q6 Edge HD, Q6 Edge Z & 6000 Power Chairs

Pride Mobility

SCRSHCS1132 - Black Zinc Socket Head Screw, M6 x 1.0 x 25, ISO 4762, CL 8.8 for Quantum Q6 Edge HD, Q6 Edge Z & 6000 Power Chairs

Pride Mobility

CLPCBLC1028 - Black Nylon Cable Clamp, 0.38" Diameter, P-Clip for Pride Jazzy 623 Power Chairs & Quantum 6000 & Edge 4 Power Chairs

Pride Mobility

SCRPPH1304 - Black Zinc Pan Head Screw, Type H, M4 x 0.7 x 6, FT, ISO 7045, CL 4.8 for Quantum 6000, Q6 Edge 3 Stretto & Edge 4 Power Chairs

BEARING, FLANGE, DELRIN, 8MM ID X 13.10MM OD X 6.5MM TH X 16MM FOD X 1.5MM FTH, B-1005-023

MOTOR MOUNT,ASSY,ACTIVE-TRACK,RIGHT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-025

MOTOR MOUNT,ASSY,ACTIVE-TRACK,LEFT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-026

Pride Mobility

SCRSHCS1172 - Black Zinc Socket Head Screw, M8 x 1.25 x 25, ISO 4762, CL 12.9 for Quantum Q6 Edge HD, Q6 Edge Z & 1450 Power Chairs

Pride Mobility

FRMASMB17600 - Right Active-Track Motor Mount Assembly with Mounting Hardware for Quantum 6000Z Power Chairs

Pride Mobility

FRMASMB17599 - Left Active-Track Motor Mount Assembly with Mounting Hardware for Quantum 6000Z Power Chairs

Pride Mobility

BLTASHL1157 - Black Shoulder Bolt, 12 SD x 60 GL, M10 x 1.5 THD for Quantum Q6 Edge Z & 6000 Power Chairs

Pride Mobility

WASMETR1050 - Black Zinc Flat Washer, 13 ID x 24 OD x 2.5 Thick, ISO 7089-12-200 HV (Use WASMETR1032) for Pride Jazzy 623 Power Chairs & Quantum 6000 & 600 Power Chairs

Pride Mobility

WASMETR1043 - Black Zinc Flat Washer, 10.5 ID x 30 OD x 2.5 Thick, ISO 7093 for Quantum Q6 Edge Z, 610 & 6000 Power Chairs

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

ACTIVE-TRACK MOTOR MOUNT, ASSY, RIGHT, QUANTUM6000Z, C-1065-005

ACTIVE-TRACK MOTOR MOUNT, ASSY, LEFT, QUANTUM6000Z, C-1065-006

Pride Mobility

BRGFLNG1044 - Black Delrin Flange Bearing, 10mm ID x 13mm OD x 8mm TH x 16mm FOD x 1.50mm FTH for Quantum 6000, 600 & R4000 & R4400 Power Chairs

BUSHING, FLANGE, STEEL, 12MM ID X 18MM OD X 10.5MM TH X 21.5MM FOD X 2.50MM FTH, B-1005-039

ACTIVE-TRACK/MOTOR MOUNT BRACKET, RIGHT, D-1065-006

ACTIVE-TRACK/MOTOR MOUNT BRACKE, LEFT, D-1065-009

ANTI-TIP, TRANSFER LINK, ACTIVE-TRACK, Q6000, VERSION 2

FRAME, ASSY, FRONT ARM W/CASTER, SILVER, RIGHT, Q6000

FRAME, ASSY, FRONT ARM W/CASTER, SILVER, LEFT, Q6000

Pride Mobility

SHDASMB4623 - Right Fender Shroud Assembly for Quantum 6000 Power Chairs

Pride Mobility

SHDASMB4624 - Left Fender Shroud Assembly for Quantum 6000 Power Chairs

Pride Mobility

PIVOTING SPRING MOUNT ASSEMBLY (FRMASMB11110)

ACTIVE-TRACK/MOTOR MOUNT BRACKET, RIGHT, D-1059-026

ACTIVE-TRACK/MOTOR MOUNT BRACKET, LEFT, D-1059-027
