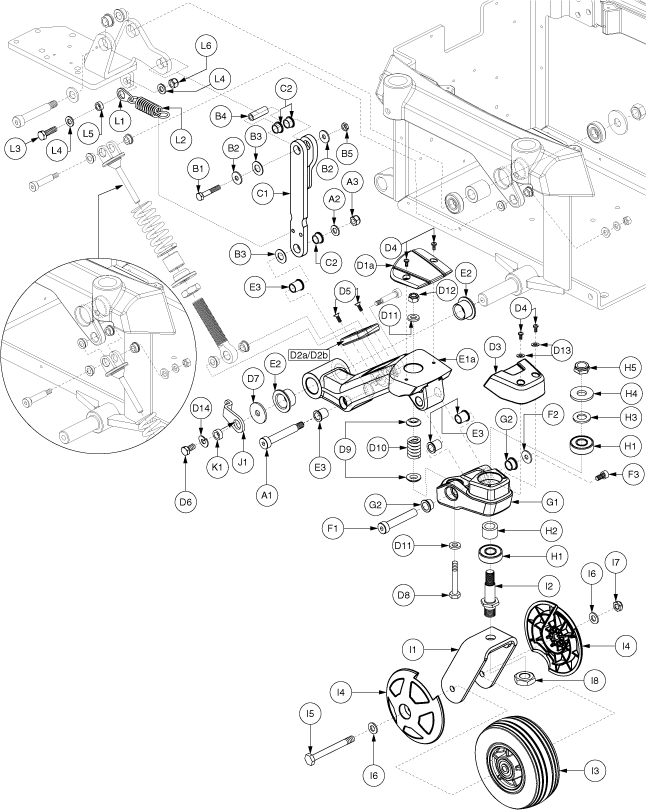

Quantum Q6000XL - Anti -Tip / Front Suspension - Anti -Tip - Used From Sn J8626207001s10 Through Sn J8619308001s10 - Black

ANTI-TIP, TRANSFER LINK, ACTIVE-TRACK, Q6000, VERSION 2

BOLT, SHOULDER, 10MM X 55MM, GRADE 12.9, C-1005-009

Pride Mobility

FRONT CASTER,ASSY,TRANSFER LINK,ACTIVE-TRACK,QUANTUM6000Z,C-1065-010 (FRMASMB10713)

SCREW, HHCS, BLACK ZINC, M6-1.0 X 35MM, GRADE 10.9

WASHER, BLACK, NYLON, 10.5MM ID X 20MM OD X 1MM TH

BUSHING, SLEEVE, STEEL, 6.5MM ID X 10MM OD X 30MM TH

Pride Mobility

NUT, HEX, THIN, M6X1, ISO 4035, CL 04, BZ (NUTJAM1041)

ANTI-TIP, ASSY, TRANSFER LINK W/BUSHINGS, B-1065-002

TRANSFER LINK, ACTIVE-TRACK, C-1065-003

FRAME, FRONT ARM W/CASTER, BLACK, RIGHT, Q6000, E-1059-059

FRAME, FRONT ARM W/CASTER, BLACK, LEFT, Q6000, E-1059-058

COVER, CAP, FRONT ARM, BLACK, RIGHT, C-1059-046

COVER, CAP, FRONT ARM, BLACK, LEFT, C-1059-045

FRONT ARM INSERT, BLACK, RIGHT, D-1059-011

FRONT ARM INSERT, BLACK, LEFT, D-1059-010

COVER, CAP, FRONT ARM, BLACK, E-1059-017

Monster Scooter Parts

M4-.7 X 8MM Black Zinc Screw (DWR1354D001)

SCREW, PFH, BLACK ZINC, M4-.7 X 12MM

Pride Mobility

SCREW, HEX HEAD, M8X1.25 X 16, ISO 4014, CL 10.9, BZ, PVTP (SCRHHCS1412)

Pride Mobility

WASHER,CUSTOM,BLACK ZINC,8.4MM ID X 30MM OD X 2.5MM TH,B-1005-026 (WASMETR1096)

Pride Mobility

SCREW,HHCS,BLACK ZINC,M10-1.5 X 55MM,GRADE 10.9 (SCRHHCS1550)

SPRING PIVOT, MUSHROOM, FRONT, B-1056-049

SPRING, BLACK, 1.00" FL X 0.730" OD X 0.148" WIRE DIA X RATE: 1150 LBS/IN, B-1056-056, (LEE SPRING: LHL-750D-1)

WASHER, FLAT, BLACK ZINC, 10.5MM ID X 20MM OD X 3MM TH

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

Pride Mobility

WASHER, FLAT, 4.3 ID X 9 OD X 0.8 THK, ISO 7089-4-200 HV, BZ (WASMETR1073)

Pride Mobility

WASHER, SPLIT LOCK, M8, DIN 127B, BZ (WASLOCK1039)

FRAME, ASSY, FRONT ARM, BLACK, RIGHT W/BEARINGS, C-1059-036

FRAME, ASSY, FRONT ARM, BLACK, LEFT W/BEARINGS, C-1059-037

FRAME, FRONT ARM, BLACK, RIGHT, E-1059-010

FRAME, FRONT ARM, BLACK, LEFT, E-1059-009

BEARING, FLANGE, DELRIN, 19MM ID X 23MM OD X 16MM TH X 32MM FOD X 2MM FTH, B-1056-050

Monster Scooter Parts

Flange Bearings for Caster Assembly for the Jazzy 600 (BRGFLNG1046)

FRAME, FRONT ARM, BOTTOM W/HARDWARE, RIGHT, B-1059-036

FRAME, FRONT ARM, BOTTOM W/HARDWARE, LEFT, B-1059-037

PIVOT SHAFT, CASTER SUSPENSION, FRONT, C-1059-018

WASHER, FLAT, BLACK ZINC, 6.4MM ID X 18MM OD X 1.6MM TH

Monster Scooter Parts

M6-1.0x12 mm Black Allen Socket Machine Bolt (SCRSHCS1169)

FRONT ANTI-TIP CASTER BARREL, ASSY, W/BUSHINGS

FRAME, FRONT ARM, BLACK, BOTTOM, E-1059-014

Pride Mobility

BEARING,FLANGE,BLACK,DELRIN,10MM ID X 13MM OD X 8MM TH X 16MM FOD X 1.50MM FTH,B-1056-046 (BRGFLNG1044)

ANTI-FLUTTER KIT, FRONT CASTER, JAZZY, B-1005-138

Monster Scooter Parts

6002-2RS (6002RS) Sealed Bearing (Single Bearing) (DWR1005B132)

Pride Mobility

SPACER, 16 ID X 21 OD X 14.5 TH, STL, ZN (DWG B1005-135) (DWR1005B135)

SHIM, BRIGHT ZINC, STEEL, 13MM ID X 24MM OD X 2MM TH, A-1101-001

SPACER, BRIGHT ZINC, STEEL, 13MM ID X 31.5MM OD X 3.18MM TH, A-1101-003

Monster Scooter Parts

Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)

CASTER, ASSY, FLAT FREE, 5" WHEEL, W/FORK & COVERS, RIGHT, E-1202-001

CASTER, ASSY, FLAT FREE, 5" WHEEL, W/FORK & COVERS, LEFT, E-1202-002

FORK, WELDMENT, 5", CASTER, C-1202-002
