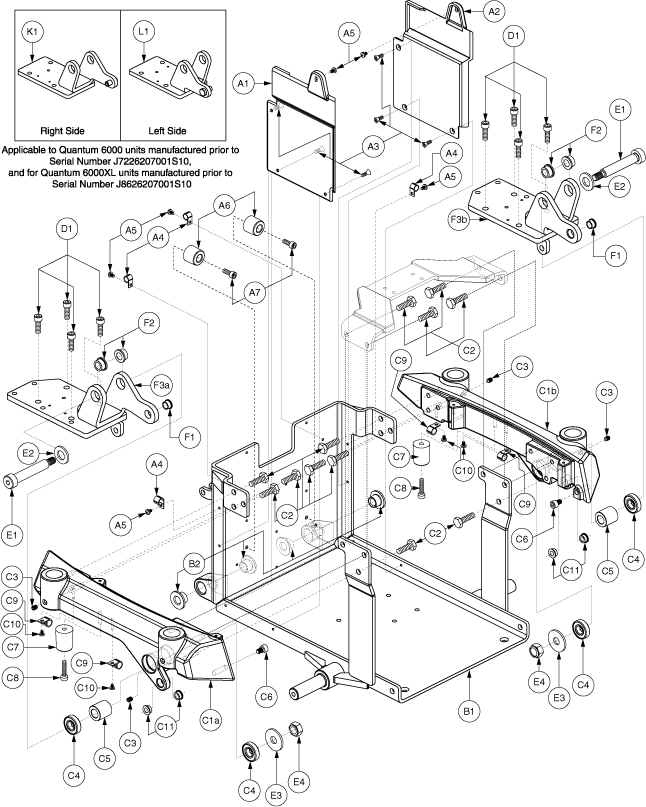

Quantum Q6000XL - Main Frame - Center & Side Frames - Used From Sn J8626207001s10 Through Sn J8619308001s10 - Orange

FRAME, ASSY, CENTER FRAME SECTION, QUANTUM6000, E-1059-042

SHROUD, SIDE PANEL, BLACK, RIGHT, E-1059-027

SHROUD, SIDE PANEL, BLACK, LEFT, E-1059-026

SCREW, PFH, BLACK ZINC, M4-.7 X 8MM

Pride Mobility

BUMPER,RUBBER,B-1054-057 (DWR1054B057)

Pride Mobility

SCREW, SOCKET HEAD, M6X1.0 X 16, ISO 4762, CL 12.9, BZ (USE SCRSHCS1153) (SCRSHCS1001)

FRAME, ASSY, MAIN, W/BUSHINGS, QUANTUM6000, E-1059-035

FRAME, WELDMENT, MAIN, E-1059-005

BEARING, FLANGE, DELRIN, 12.16MM ID X 18.10MM OD X 14MM TH X 30MM FOD X 3MM FTH, B-1005-024

FRAME, ASSY, SIDE FRAMES, PAIR, SUNBURST ORANGE, QUANTUM6000, VERSION 2

FRAME, ASSY, RIGHT SIDE, ORANGE, QUANTUM6000, VERSION 2

FRAME, ASSY, LEFT SIDE, ORANGE, QUANTUM6000, VERSION 2

FRAME, ASSY, RIGHT SIDE FRAME SECTION, ORANGE, QUANTUM6000, D-1059-018

FRAME, ASSY, LEFT SIDE FRAME SECTION, ORANGE, QUANTUM6000, D-1059-019

FRAME, MAIN CASTING, ORANGE, RIGHT, E-1059-046

FRAME, MAIN CASTING, ORANGE, LEFT, E-1059-047

SCREW, HHCS, BLACK ZINC, M8-1.25 X 25MM, GRADE 12.9

Pride Mobility

SCREW,SET,M6-1.0 X 8MM,CUP POINT (SCRSETS1023)

Pride Mobility

BEARING, BALL, 12 ID X 28 OD X 8 THK, DOUBLE SEAL (6001-2RSH) (DWR1101A019B)

Pride Mobility

SPACER,ZINC,STEEL,13MM ID X 23MM OD X 24MM TH,B-1059-012 (DWR1059B012)

SCREW, SHCS, BLACK ZINC, M8-1.25 X 12MM, GRADE 12.9

Pride Mobility

BUMPER,BLACK,RUBBER,6.5MM ID X 25MM OD X 32MM TH,SHORE 90 A,B-1056-062 (DWR1056B062)

Pride Mobility

SCREW, SOCKET HEAD, M6X1.0 X 25, ISO 4762, CL 8.8, BZ (SCRSHCS1132)

Pride Mobility

CLAMP,CABLE,BLACK,NYLON,.38" DIAMETER,P-CLIP,C-1059-042 (CLPCBLC1028)

Pride Mobility

SCREW, PAN HEAD, TYPE H, M4X0.7 X 6, FT, ISO 7045, CL 4.8, BZ (SCRPPH1304)

BEARING, FLANGE, DELRIN, 8MM ID X 13.10MM OD X 6.5MM TH X 16MM FOD X 1.5MM FTH, B-1005-023

MOTOR MOUNT,ASSY,ACTIVE-TRACK,RIGHT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-025

MOTOR MOUNT,ASSY,ACTIVE-TRACK,LEFT,W/MOUNTING HARDWARE,QUANTUM6000Z,HAMMER MOTORS,C-1065-026

Pride Mobility

SCREW, SOCKET HEAD, M8X1.25 X 25, ISO 4762, CL 12.9, BZ (SCRSHCS1172)

Pride Mobility

MOTOR MOUNT,ASSY,ACTIVE-TRACK,RIGHT,W/MOUNTING HARDWARE,QUANTUM6000Z,C-1065-034 (FRMASMB17600)

Pride Mobility

MOTOR MOUNT,ASSY,ACTIVE-TRACK,LEFT,W/MOUNTING HARDWARE,QUANTUM6000Z,C-1065-033 (FRMASMB17599)

Pride Mobility

BOLT, SHOULDER, 12 SD X 60 GL, M10X1.5 THD, BLACK (SEE DRAWING: C1005-011-A) (BLTASHL1157)

Pride Mobility

WASHER, FLAT, 13ID X 24OD X 2.5THK, ISO 7089-12-200 HV, BZ (USE WASMETR1032) (WASMETR1050)

Pride Mobility

WASHER, FLAT, 10.5 ID X 30 OD X 2.5 THK, ISO 7093, BZ (WASMETR1043)

Pride Mobility

NUT, LOCK, PVTP, M10X1.5, ISO 898-2, CL 8, BZ (DWG 1714169)

ACTIVE-TRACK MOTOR MOUNT, ASSY, RIGHT, QUANTUM6000Z, C-1065-005

ACTIVE-TRACK MOTOR MOUNT, ASSY, LEFT, QUANTUM6000Z, C-1065-006

Pride Mobility

BEARING,FLANGE,BLACK,DELRIN,10MM ID X 13MM OD X 8MM TH X 16MM FOD X 1.50MM FTH,B-1056-046 (BRGFLNG1044)

BUSHING, FLANGE, STEEL, 12MM ID X 18MM OD X 10.5MM TH X 21.5MM FOD X 2.50MM FTH, B-1005-039

ACTIVE-TRACK/MOTOR MOUNT BRACKET, RIGHT, D-1065-006

ACTIVE-TRACK/MOTOR MOUNT BRACKE, LEFT, D-1065-009

ANTI-TIP, TRANSFER LINK, ACTIVE-TRACK, Q6000, VERSION 2

FRAME, FRONT ARM W/CASTER, ORANGE, RIGHT, Q6000, E-1059-059

FRAME, FRONT ARM W/CASTER, ORANGE, LEFT, Q6000, E-1059-058

Pride Mobility

SHROUD,ASSY,RIGHT FENDER,QUANTUM6000 (SHDASMB4623)

Pride Mobility

SHROUD,ASSY,LEFT FENDER,QUANTUM6000 (SHDASMB4624)

Pride Mobility

PIVOTING SPRING MOUNT ASSEMBLY (FRMASMB11110)

ACTIVE-TRACK/MOTOR MOUNT BRACKET, RIGHT, D-1059-026

ACTIVE-TRACK/MOTOR MOUNT BRACKET, LEFT, D-1059-027
